ICX-FieldHawk USB/LAN Real-Time Spectrum Analyzer

A compact, FPGA-based real-time spectrum analyzer in a module form factor, operated from host software with no onboard display. The ICX-FieldHawk USB/LAN covers 9 kHz to 40 GHz across three models, delivers 100 MHz of gapless analysis bandwidth, and connects over USB Type-C or Gigabit Ethernet.

ICX-090 / ICX-200 / ICX-400 · USB and LAN variants · Document rev. A · Specifications verify against the published Berkeley Nucleonics datasheet

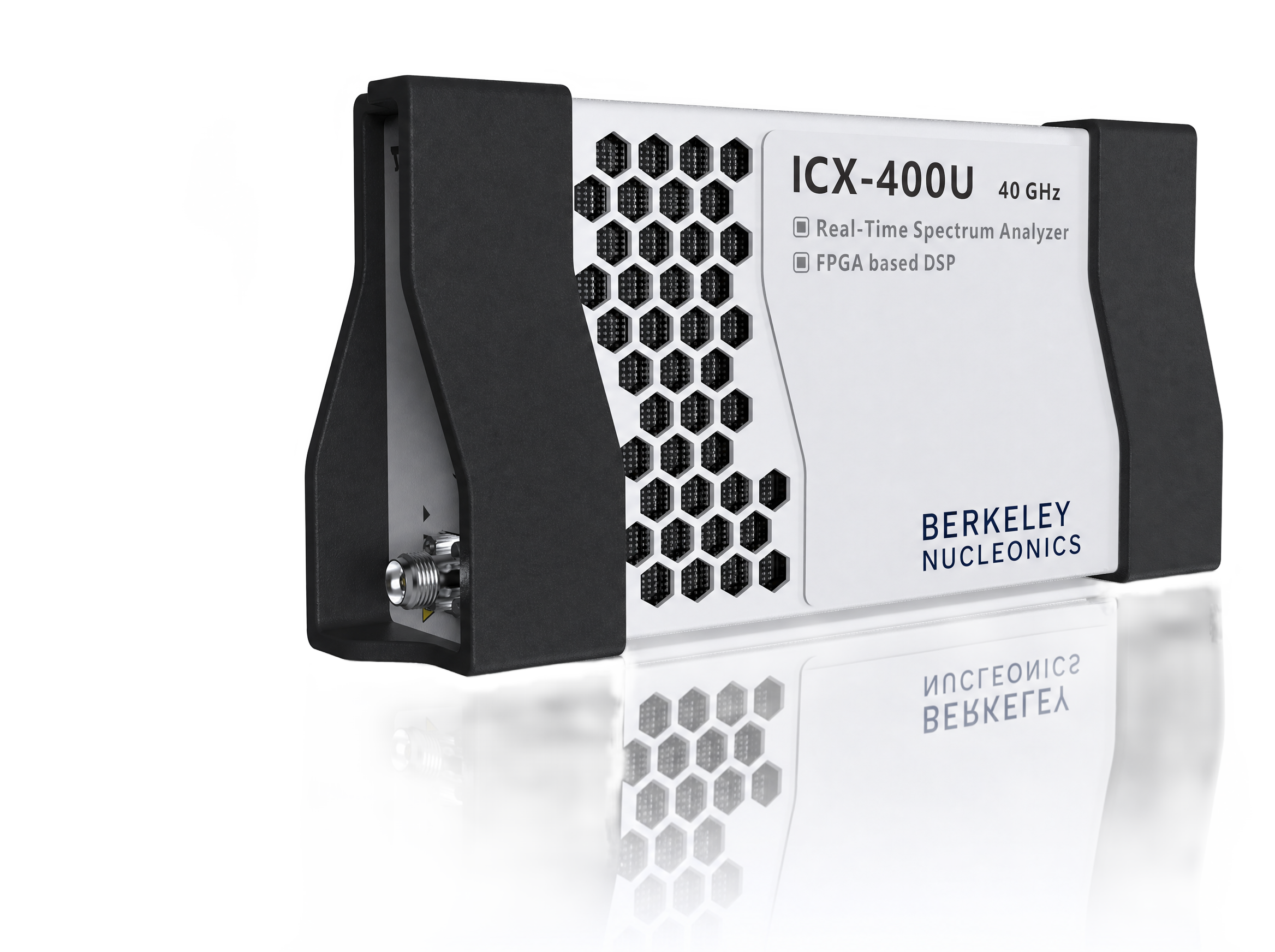

Berkeley Nucleonics ICX-FieldHawk USB/LAN real-time spectrum analyzer module, ICX-400U 40 GHz

1Overview

The Berkeley Nucleonics ICX-FieldHawk USB/LAN is a compact, FPGA-based real-time spectrum analyzer in a module form factor. It has no onboard display and is operated from a host computer running Vector Signal Studio (SpecICX-gen3). The series covers 9 kHz up to 9.5, 20, or 40 GHz with a standard 100 MHz analysis bandwidth, and its fast FFT design reaches a sweep speed up to 1 THz/s.

Two interface options serve different deployments. USB models connect over a single Type-C cable that carries both power and data, ideal for portable and bench work driven from a laptop. Networked (LAN) models add Gigabit Ethernet for remote, rack-mounted, and distributed sensor installations. Both variants share the same measurement core, option set, and API.

The ICX-FieldHawk USB/LAN comes standard with a variety of advanced measurement functions, including channel power, OBW, X dB bandwidth, harmonic measurement, SEM, AM/FM demodulation, and automatic phase noise analysis. SpecICX-gen3 renders spectrum, spectrogram, and historical trace views on the host.

A unified, highly compatible API supports mainstream programming languages including C/C++, C#, Python, MATLAB, Qt, and LabVIEW on both Windows and Linux. That makes secondary development straightforward and integration into larger systems clean. Talk to a Berkeley Nucleonics engineer about matching the right model and interface to your application.

2Key Features

  • Module form factor, host-software operation. No onboard screen; the analyzer is driven from a host computer running Vector Signal Studio (SpecICX-gen3).
  • USB or LAN interface. USB models run over a single Type-C cable for power and data; networked models add Gigabit Ethernet for remote and distributed deployment.
  • Compact and light. From under 305 g, bus or adapter powered with a 9 to 16 W draw depending on model.
  • Frequency range 9 kHz to 9.5 / 20 / 40 GHz across the ICX-090, ICX-200, and ICX-400 models.
  • 100 MHz analysis bandwidth with gapless, overlap-free real-time FFT.
  • 1 GHz DANL below -160 dBm/Hz for low-level signal work.
  • 1 GHz phase noise below -100 dBc/Hz at 10 kHz offset.
  • Standard SCPI plus a unified API across C/C++, C#, Python, MATLAB, Qt, and LabVIEW on Windows and Linux.

3Models & Frequency Range

Three models share the same FPGA measurement core and 100 MHz analysis bandwidth. They differ in upper frequency limit and RF input connector. Each model ships in two interface variants: a USB (Type-C) module and a networked (Gigabit Ethernet) module. Both are operated from a host computer.

ModelFrequency rangeRF input connectorInterface variantsAnalysis bandwidth
ICX-0909 kHz to 9.5 GHzSMA (F), 50 ΩUSB (Type-C) or LAN (Gigabit Ethernet)100 MHz
ICX-2009 kHz to 20 GHzSMA (F), 50 ΩUSB (Type-C) or LAN (Gigabit Ethernet)100 MHz
ICX-4009 kHz to 40 GHz2.92 mm (F), 50 ΩUSB (Type-C) or LAN (Gigabit Ethernet)100 MHz

4Operating Modes

The ICX-FieldHawk USB/LAN offers main operating modes including Standard Spectrum Analysis, IQ Streaming, Power Detection, Real-Time Spectrum, Phase Noise Measurement, and Harmonics Analysis. Digital Demodulation is available as an option. All modes run in Vector Signal Studio (SpecICX-gen3) on the host.

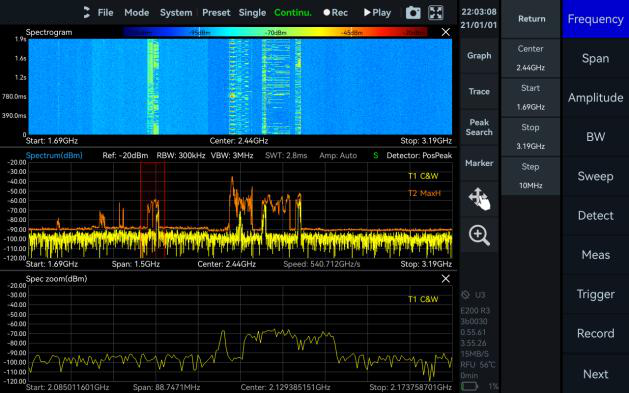

Standard Spectrum Analysis

This mode provides a wide range of measurement functions, including full-span spectrum sweep, channel power, OBW, ACPR, IM3, and SEM. It also supports spectrum recording and playback. Combined with auxiliary tools such as signal tracking, peak table, and amplitude correction, it delivers a one-stop platform for comprehensive spectrum check.

Standard Spectrum Analysis
Standard Spectrum Analysis

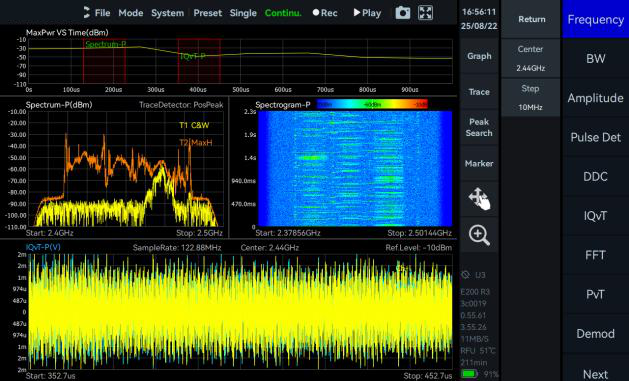

IQ Streaming Analysis

This mode supports up to 100 MHz analysis bandwidth and allows IQ data acquisition through multiple trigger methods. It provides IQ time-domain waveform display, spectrum and spectrogram views, AM/FM demodulation, and digital down-conversion (DDC).

IQ Streaming Analysis
IQ Streaming Analysis

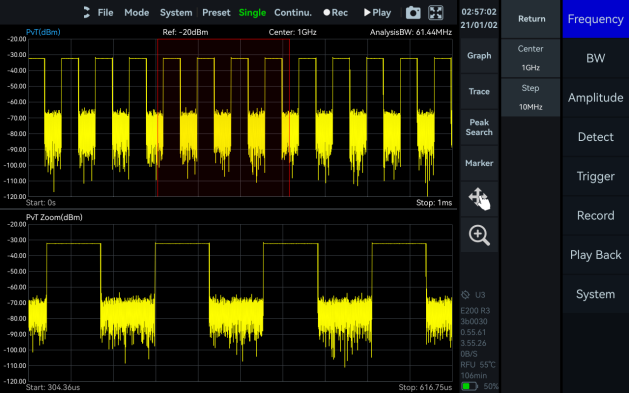

Power Detection Analysis

This mode enables detection and analysis of time-domain signals within the analysis bandwidth. It suits applications focused on in-band power-versus-time relationships, such as pulse signal measurements.

Power Detection Analysis
Power Detection Analysis

Real-Time Spectrum Analysis

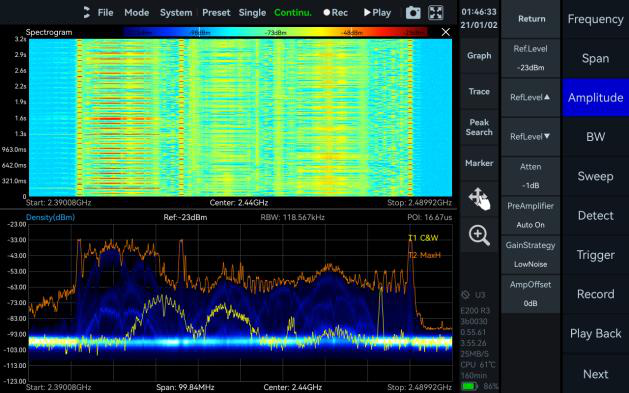

This mode is powered by a high-speed FPGA-based FFT engine. With strictly gapless and overlap-free FFT, it achieves true real-time monitoring across the full bandwidth.

Real-Time Spectrum Analysis
Real-Time Spectrum Analysis

Digital Demodulation (option)

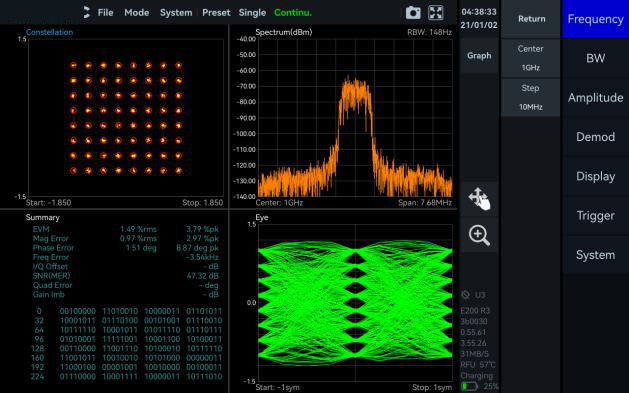

This mode supports 2ASK, 2FSK, 4FSK, GMSK, BPSK, QPSK, 8PSK, 16QAM, 64QAM, 128QAM, and 256QAM signals.

Digital Demodulation (option)
Digital Demodulation (option)

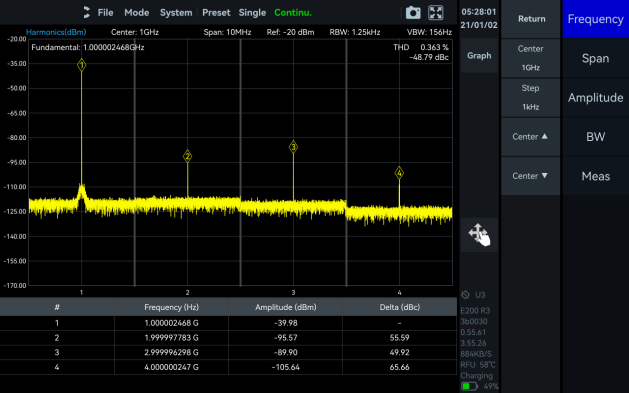

Harmonics Analysis

This mode supports detection and measurement of up to 10 harmonic components, including harmonic peaks, harmonic channel power, and total harmonic distortion.

Harmonics Analysis
Harmonics Analysis

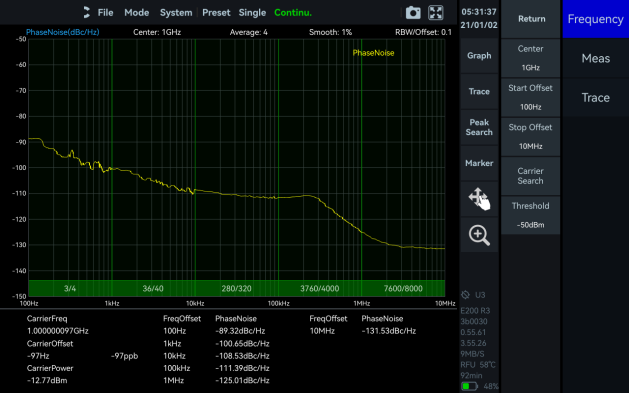

Phase Noise Measurement

This mode supports offset ranges from 1 Hz to 10 MHz for evaluating carrier phase stability. With the built-in automatic carrier search function, the software can quickly locate the target carrier without manual adjustment.

Phase Noise Measurement
Phase Noise Measurement

5Main Functions

A standard set of measurement and utility functions runs on every ICX-FieldHawk USB/LAN module. Pulse Detection and digital demodulation are software options.

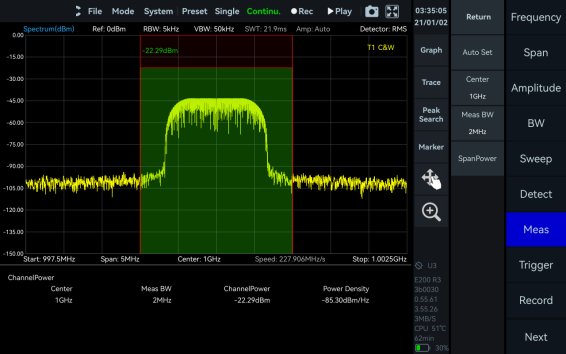

Channel Power measurement screen in Vector Signal Studio
Channel Power

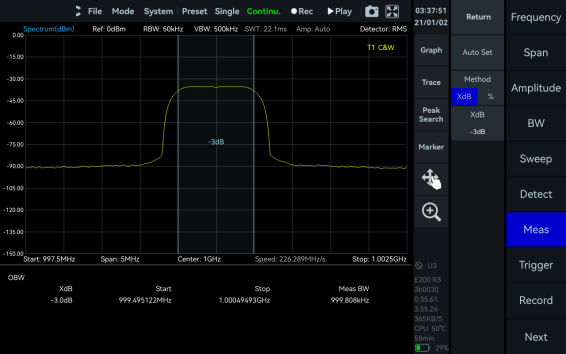

OBW measurement screen in Vector Signal Studio
OBW

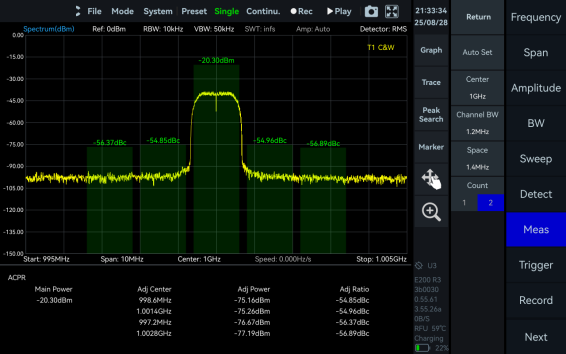

ACPR measurement screen in Vector Signal Studio
ACPR

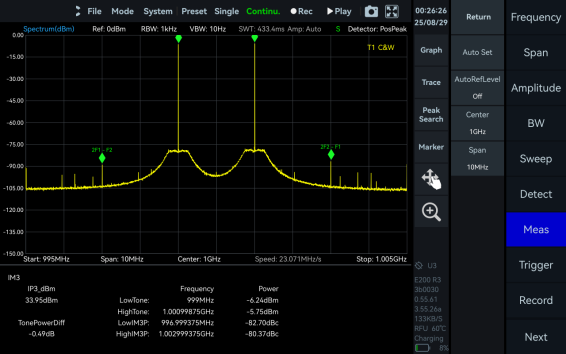

IM3 measurement screen in Vector Signal Studio
IM3

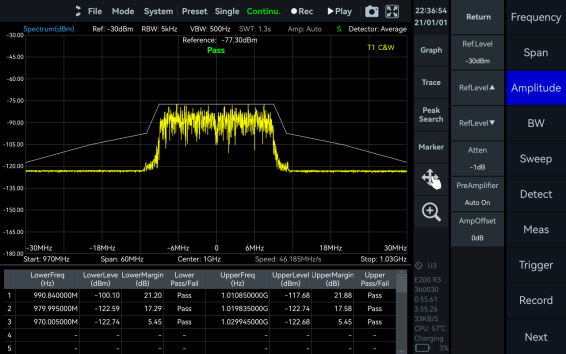

SEM measurement screen in Vector Signal Studio
SEM

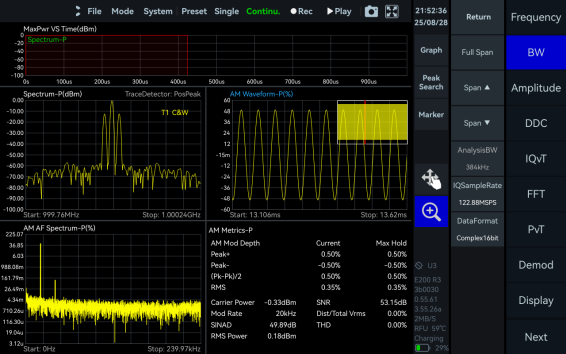

AM Demodulation measurement screen in Vector Signal Studio
AM Demodulation

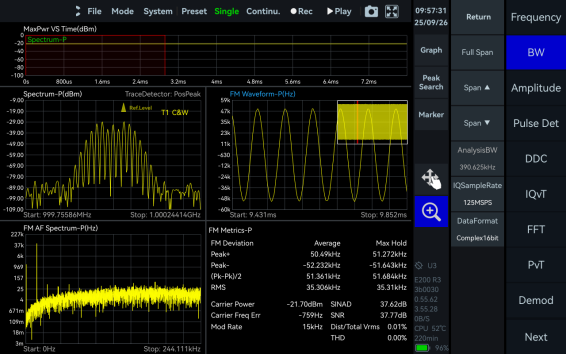

FM Demodulation measurement screen in Vector Signal Studio
FM Demodulation

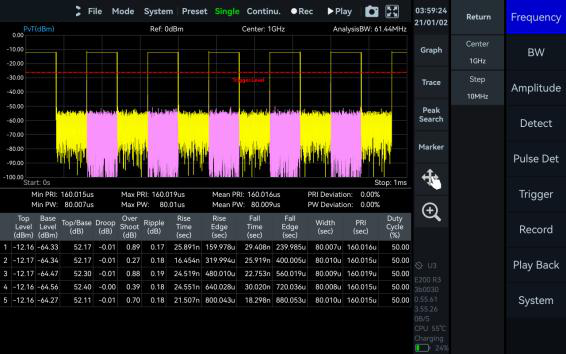

Pulse Detection (option) measurement screen in Vector Signal Studio
Pulse Detection (option)

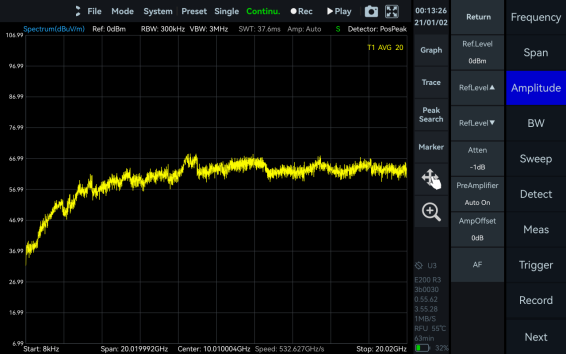

Antenna Factor measurement screen in Vector Signal Studio
Antenna Factor

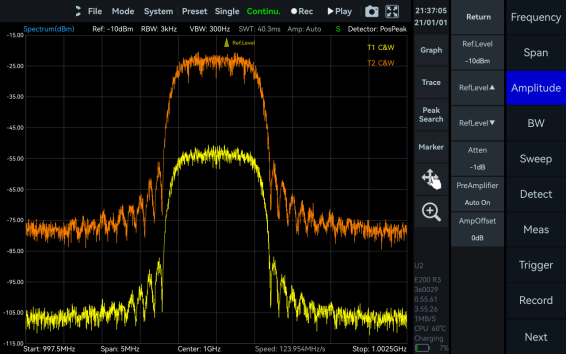

Amplitude Offset measurement screen in Vector Signal Studio
Amplitude Offset

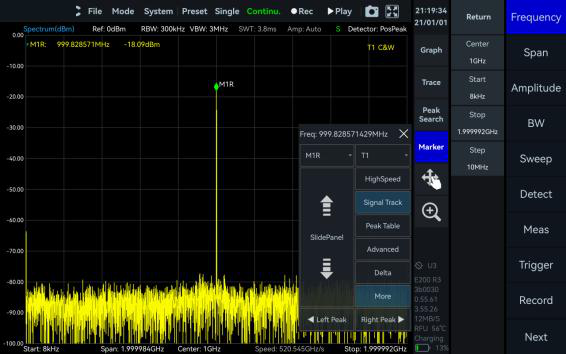

Signal Track measurement screen in Vector Signal Studio
Signal Track

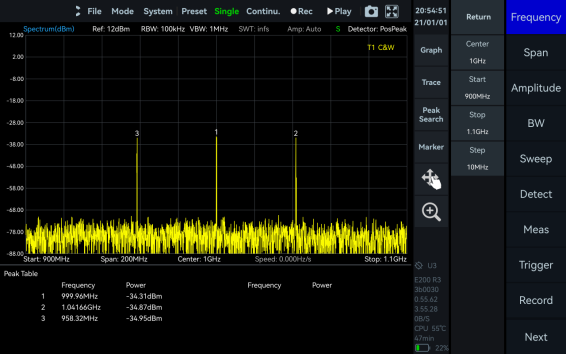

Peak Table measurement screen in Vector Signal Studio
Peak Table

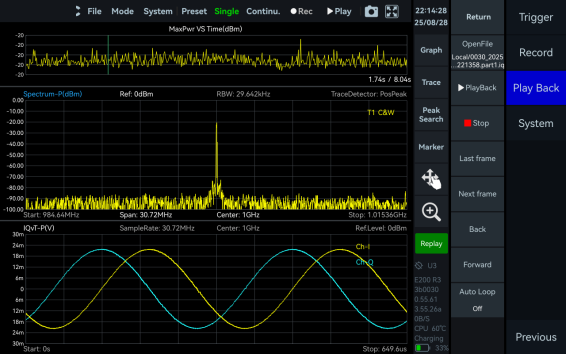

Data Record and Playback measurement screen in Vector Signal Studio
Data Record and Playback
Multiple Unit Display measurement screen in Vector Signal Studio
Multiple Unit Display

6Frequency & Spectrum Purity

Frequency

ParameterSpecification
Reference clockInternal or external
Frequency accuracy, TCXO (std.)<1 ppm, manual correction is available
Frequency accuracy, OCXO (opt01)<1 ppm, manual correction is available
Aging and temperature stability, TCXO (std.)<1 ppm/year, <1 ppm
Aging and temperature stability, OCXO (opt01)<1 ppm/year, <0.15 ppm

SSB Phase Noise (dBc/Hz)

Offset frequencyICX-090ICX-200ICX-400
1 GHz9.5 GHz1 GHz20 GHz1 GHz40 GHz
1 kHz-95.2-91.5-91.2-80.6-99.0-78.4
10 kHz-101.6-98.5-99.7-90.6-107.5-85.7
100 kHz-100.6-99.7-101.1-96.2-107.7-85.1
1 MHz-120.9-116.2-121.6-111.5-122.7-100.8

Residual Response (dBm)

Spur reject = bypass, RBW = 1 kHz, PosPeak detector.

Reference level (R.L.)ICX-090ICX-200ICX-400
0 dBm-50 dBm0 dBm-50 dBm0 dBm-50 dBm
9 kHz to 1 GHz-83-120-90-120-72-103
1 GHz to 3 GHz-83-120-90-120-72-103
3 GHz to 10 GHz-90-130-90-120-72-103
10 GHz to 20 GHz---90-120-91-115
20 GHz to 40 GHz-----85-103

IF Rejection (dBc), Typical

Spur reject functionICX-090ICX-200ICX-400
enhancedbypassenhancedbypassenhancedbypass
9 kHz to 40 GHz>90>80>90>808.2 to 21.75 GHz >68; other bands >90-

Image Rejection (dBc), Typical

Spur reject functionICX-090ICX-200ICX-400
standardbypassstandardbypassstandardbypass
90 MHz to 3 GHz>90>76>90>79>90-
3 GHz to 9.5 GHz>90>60>90>68>90-
9.5 GHz to 20 GHz-->90>60>90-
20 GHz to 33 GHz---->90-
33 GHz to 40 GHz---->58-

Local Oscillator Related Spurious

ParameterSpecification
Local oscillator related spurious<-65 dBc, center frequency ± (N/M) × 125 MHz, N, M = 1, 2, 3, 4, 5...

IIP3 / IIP2 (dBm)

Each cell lists IIP3 / IIP2.

Carrier frequencyICX-090ICX-200ICX-400
1 GHz9.5 GHz1 GHz20 GHz1 GHz40 GHz
R.L. = 20 dBm46.1 / 83.240.5 / 92.845.5 / 82.635.3 / 93.640.3 / 75.531.7 / 88.6
R.L. = 0 dBm26.7 / 85.019.2 / 90.325.5 / 81.121.0 / 89.027.4 / 45.310.3 / 86.1
R.L. = -20 dBm10.5 / 82.22.0 / 49.37.9 / 81.5-4.5 / 55.38.7 / 25.24.8 / 66.6

7Amplitude & DANL

Amplitude

ParameterICX-090 / ICX-200ICX-400
Display rangeDANL to 23 dBm (typ.)DANL to 20 dBm (typ.)
Reference level (R.L.)-50 dBm to +23 dBm (typ.)-50 dBm to +20 dBm (typ.)
VSWR90 MHz to 9.5/20 GHz: <2.0:190 MHz to 16 GHz: <2.0:1; 16 GHz to 40 GHz: <3.0:1
Max. DC voltage±10 VDC
IF in-band flatness±2.0 dB
Max. input power (CW)23 dBm: 50 MHz to 9.5/20/40 GHz and the preamplifier is off; 10 dBm: 9 kHz to 50 MHz or preamplifier is on
Amplitude accuracy9 kHz to 9.5 GHz: ±2.0 dB; 9.5 GHz to 20/40 GHz: ±3.0 dB
RF preamplifiersAutomatically turn on or forcibly turn off

Display Average Noise Level (DANL, dBm/Hz)

RBW = 1 kHz.

Reference level (R.L.)ICX-090ICX-200ICX-400
-20 dBm-50 dBm-20 dBm-50 dBm-20 dBm-50 dBm
9 kHz to 1 MHz-143.0-152.4-143.6-152.6-136.0-145.8
1 MHz to 90 MHz-152.0-159.2-151.8-160.0-153.7-158.0
90 MHz to 3 GHz-146.0-167.5-149.7-166.3-154.1-159.9
3 GHz to 9.5 GHz-153.6-167.0-151.4-157.5-154.1-159.9
9.5 GHz to 19 GHz---156.1-160.6-156.8-161.5
19 GHz to 20 GHz---156.1-160.6-145.2-149.3
20 GHz to 40 GHz-----145.2-149.3

8Sweep, Detection & Real-Time Analysis

Standard Spectrum Analysis

ParameterSpecification
DetectorPosPeak, NegPeak, Sample, Average, RMS, MaxPower
RBW1 Hz to 10 MHz
VBW1 Hz to 10 MHz
Data chartSpecICX-gen3 software provides spectrum, spectrogram, and historical trace
MeasurementsChannel power, OBW, X dB bandwidth, Adjacent channel power ratio, IM3

Sweep Speed

ConditionSweep speed
RBW = 250 kHz FPGA, spur reject = bypass1.0 THz/s
RBW = 250 kHz FPGA, spur reject = standard577.5 GHz/s
RBW = 50 kHz FPGA, spur reject = bypass212.6 GHz/s
RBW = 1 kHz CPU, spur reject = bypass2.6 GHz/s

Detection Analysis

ParameterSpecification
Lowest time resolution8 ns
Max. analysis bandwidth100 MHz
DetectorPosPeak, NegPeak, Sample, Average, RMS, MaxPower

Real-Time Spectrum Analysis

ParameterSpecification
FFT analysisFFT engine is implemented in FPGA. Frame compression and trace detection are supported. No missing samples between FFT frames. FFT frame update rate = 10^9 ns / (N × D × 8 ns); POI = 2 × N × D × 8 ns, for FFT points (2048, 1024, 512, 256, 128, 64, 32) and D the decimate factor (1, 2, 4, 8...). Typical: N = 2048, D = 1 gives 61,035 times/sec and 32.768 us POI; N = 32, D = 1 gives 3,906,250 times/sec and 0.512 us POI.
Max. analysis bandwidth100 MHz
Window functionB-Nuttall, Flat-top, LowSideLobe
RBW14.73 MHz to 3.59 kHz (Flat-top); 7.81 MHz to 1.90 kHz (B-Nuttall); 13 grades for each window type
Amplitude resolution0.75 dB

9IQ Recording

ParameterSpecification
Burst recording bandwidthMaximum 100 MHz. The built-in memory depth is 128 Mbytes.
Continuous recording bandwidthMaximum 25 MHz
IQ sample rateMaximum 125 MSPS; decimate factor 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096
External trigger responseMaximum frequency response 500 times/s

10General, I/O & Physical

The ICX-FieldHawk USB/LAN has no onboard display, keypad, or battery. It is powered and controlled through its host interface and operated entirely from Vector Signal Studio (SpecICX-gen3). The USB models draw power and data over one Type-C cable; the LAN models take a Type-C power feed and carry data over Gigabit Ethernet.

Input and Output

ParameterUSB models (ICX-090 / ICX-200)LAN modelsICX-400 USB
External trigger inputType-C, 3.3 V CMOS, high impedanceMMCX (F), 3.3 V CMOS, high impedanceIntegrated in AUXIO, 3.3 V CMOS, high impedance
Trigger outputType-C, 3.3 V CMOSMMCX (F), 3.3 V CMOSIntegrated in AUXIO, 3.3 V CMOS
ParameterUSB models (ICX-090 / ICX-200)ICX-400 USBLAN models
RF inputSMA (F), 50 Ω2.92 mm (F), 50 Ω
RF output (opt02 generator)SMA (F), 50 Ω
Reference clock inputMCX (F), amplitude ≥ 1.5 Vpp, impedance 330 ΩMMCX (F), amplitude ≥ 1.5 Vpp, impedance 330 Ω
Reference clock outputUnavailableIntegrated in AUXIO, 10 MHz, 3.3 V CMOS, programmable on/off
Analog IF outputUnavailableMMCX (F), -25 dBm max output power, impedance 50 Ω, 307.2 MHz ± 50 MHz

General

ParameterUSB modelsLAN models
PowerType-C, 5 V 2 A supply capacity, voltage range 4.75 to 5.25 V, ripple < 200 mVppType-C, 12 V 2 A supply capacity, voltage range 9 to 12 V, ripple < 200 mVpp
Data interfaceType-C, USB 3.0 (USB 2.0 bandwidth limited), requires 5 V 0.9 A power supplyRJ45 1000 Mbps × 1, 100 Mbps × 1
DisplayNone. Operated from a host computer running Vector Signal Studio (SpecICX-gen3).
GNSS typeExternalInternal
GNSS 1PPS synchronization accuracy
Std. / opt21opt21, ±100 nsStd., ±100 ns
opt22 / opt05opt22, ±75 nsopt05, ±75 ns
opt23 / opt06opt23, ±50 nsopt06, ±50 ns
System requirementsWindows 11/10/8/7 (x86, x64, AArch64; AArch64 supported on LAN models only). Debian 12/11/10 (x64, AArch64). Ubuntu 24.04/22.04/20.04/18.04 (x64, AArch64).
Operating / storage temperature (ambient)
T0 class (std.)0 to 50 °C / -20 to +70 °C
T1 class (opt40)-20 to +65 °C / -40 to +85 °C
T2 class (opt41)-40 to +65 °C / -40 to +85 °C
Operating relative humidity
Ambient temp. 0 to 40 °C5 to 75%
Ambient temp. > 40 °C5 to 45%
Packaging and accessoriesFlash disk ×1, USB 3.0 cable ×2, power adapter ×1Flash disk ×1, USB 2.0 cable ×1, power adapter ×1

Size, Weight & Power

Model groupSize (L × W × H)WeightPower consumption
ICX-090 / ICX-200, USB156 × 62 × 22 mm< 305 g9 to 12 W
ICX-400, USB139 × 68 × 31 mm< 420 g10 to 14 W
ICX-090 / ICX-200 / ICX-400, LAN167 × 117 × 30 mm< 665 g13 to 16 W
Specification conditions. Values apply under the following conditions: (1) start up and warm up for 10 minutes; (2) ambient temperature 25 °C (core temperature 50 °C); (3) standard spectrum analysis mode with spurious rejection standard on; (4) necessary heat dissipation is provided so the ambient and core temperatures stay within the rated range at the same time; (5) sweep speed and display average noise level test conditions are MCU 0.55.57, FPGA 0.55.22, API 0.55.61. (verify build strings carry to BNC release builds.)

11Options

CodeDescriptionType
01Built-in OCXO reference clockBuilt-in hardware
02Built-in signal generator (100 kHz to 6.3 GHz)Built-in hardware
05Internal high precision GNSSBuilt-in hardware
06Built-in GNSS disciplined reference clockBuilt-in hardware
20AUXIO IO expansion boardAccessory
21External GNSSAccessory
22External high precision GNSSAccessory
23External GNSS disciplined OCXO reference clockAccessory
34External omnidirectional antenna, 400 MHz to 8000 MHz, gain < 2 dBiAccessory
35External active directional antenna, frequency range 0.5 to 10 GHz, gain < 5 dBi (amp off); < 25 dBi (amp on)Accessory
40T1 temperature classBuilt-in hardware
41T2 temperature class (core only)Built-in hardware
71Basic digital demodulationSoftware
72Pulse detectionSoftware
Berkeley Nucleonics directional and omnidirectional antennas pair with the ICX-FieldHawk USB/LAN for geolocation and direction-finding work. (verify antenna part numbers and gain figures against the published BNC datasheet.)
