MegiQ VNAs & Antenna MeasurementRF measurement from 370 MHz to 6 GHz, no anechoic chamber required.

MegiQ vector network analyzers and antenna measurement systems give RF engineers precise, PC-controlled measurement from 370 MHz to 6 GHz. Compact 2-port and 3-port VNAs test antennas, filters, and cables, while the antenna measurement systems capture 3-axis radiation patterns, gain, ERP, and TRP in ordinary lab space.

Made by MegiQ, represented in North America by Berkeley Nucleonics.

The MegiQ line

Vector network analysis and
antenna measurement, benchside.

Two families cover the RF measurement chain: compact USB VNAs for antennas, filters, and cables, and 3-axis antenna measurement systems that capture full radiation patterns without an anechoic chamber. Pick the family that matches your test, then drill into the model that fits.

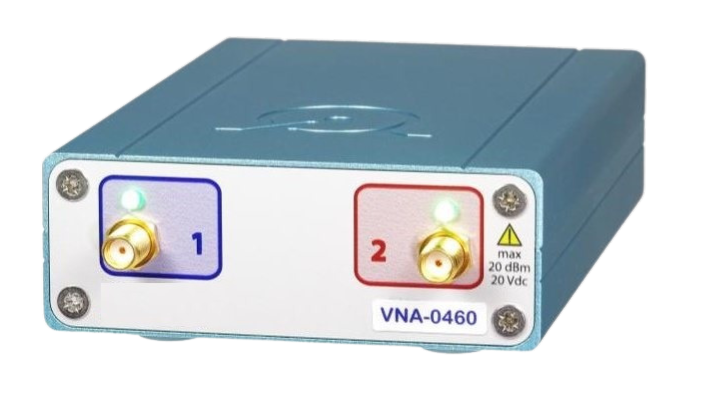

Vector Network Analyzers

4 models · 400 MHz to 6 GHz · 2 & 3 port

Compact, USB-connected 2-port and 3-port VNAs for antenna, filter, and cable measurement, with full bi-directional functionality and PC-based software for measurement control, data storage, and reporting. Popular for antenna development and ISM and Wi-Fi band testing.

Models VNA-0460EBN · VNA-0460BN · VNA-0440EBN · VNA-0440BN

View the VNA datasheet →

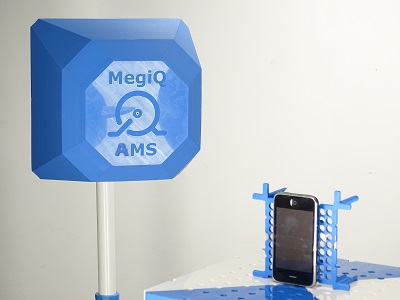

MegiQ antenna measurement system measuring a device under test

Antenna Measurement Systems

4 models · 370 MHz to 6 GHz · 3-axis

Compact systems for 3-axis antenna radiation pattern measurement in non-anechoic spaces, characterizing radiation patterns, gain, ERP, TRP, and field strength across 370 MHz to 6 GHz. Suited to research, development, and regulatory compliance in real-world lab conditions.

Models AMS-0660BN · AMS-0640BN · AMS-0460BN · AMS-0440BN

View the AMS datasheet →

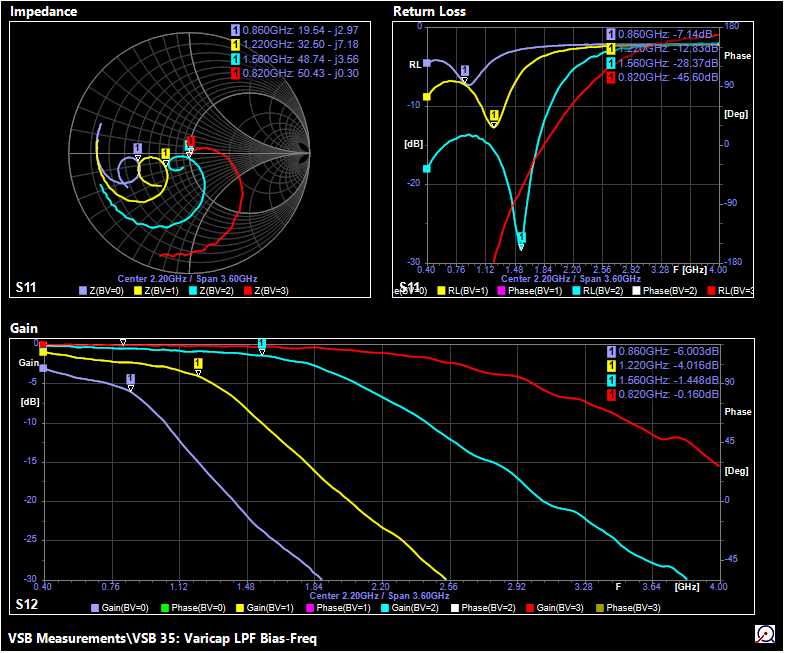

VNA Sandbox Kit & Software

All-in-one starter · PC-based control

The VNA Sandbox Kit bundles everything needed to start with network analysis in one package, paired with MegiQ PC-based software for measurement control, calibration, data storage, and report generation. A practical entry point for teams new to vector network analysis.

Includes VNA Sandbox Kit · VNA Software

Visit MegiQ →

New from MegiQ

Radiation Measurement Systems now capture a full 3D pattern.

MegiQ's Radiation Measurement System (RMS) line adds a 2-axis turntable, the RMS-3DTT (patent pending). Earlier RMS setups built a pattern from three separate axis cuts; the RMS-3DTT rotates the device under test around the Z-axis (phi) and X-axis (theta) together, giving a radiation pattern of the full sphere in one pass, with complete maximum-gain and TRP data as a result.

The open-drum turntable rides on rollers and ships with cable-guidance accessories for repeatable measurements. It holds devices up to 21 × 25 cm or 16 × 30 cm (width × height), with a 32 cm internal drum length, and larger devices can protrude from the sides. A full 3D scan of a small device runs in roughly 15 minutes at 5-degree resolution. The RMS-3DTT is available as an option on new RMS systems, or ordered separately to add 3D capability to an existing one.

Read the MegiQ announcement →

In the lab

Measurement software and 3-axis capture.

PC-based VNA software drives measurement control and reporting, while the antenna measurement turntable captures full 3-axis radiation patterns in ordinary lab space.

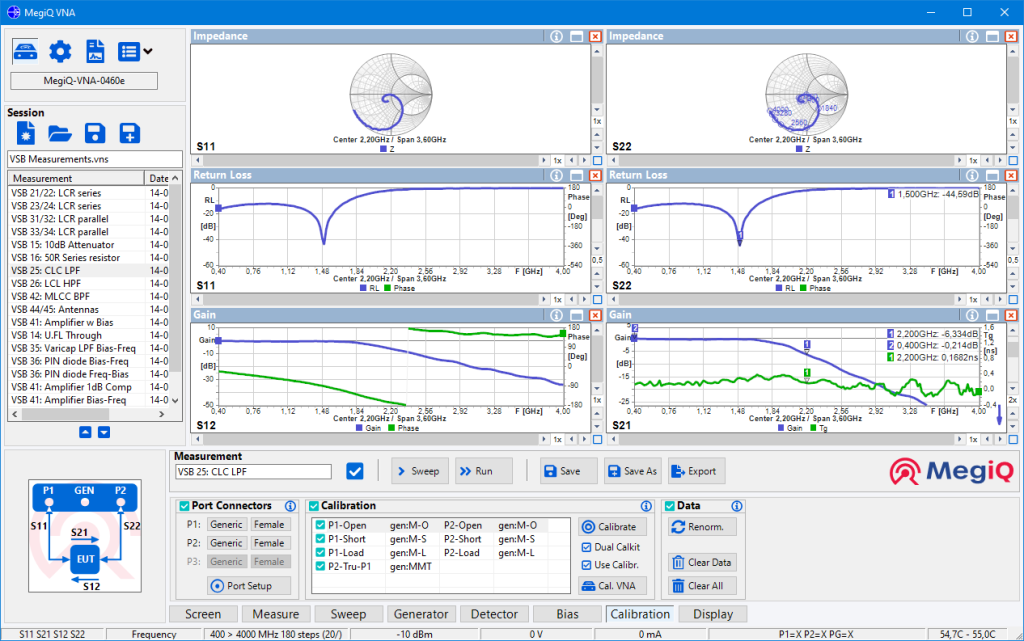

MegiQ VNA PC-based measurement software — PC-based VNA software for measurement control, data storage, and reporting.

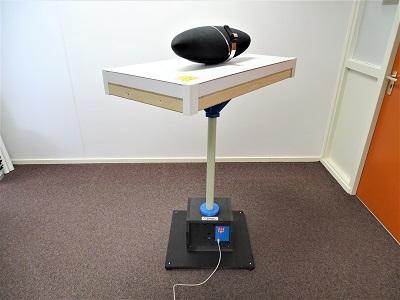

MegiQ antenna measurement system turntable — Antenna measurement system with 3-axis turntable for radiation-pattern capture.
