Six families.
One high-voltage partner.
From universal high-voltage supplies to precision magnet power, Heinzinger covers the range of research and industrial high voltage. BNC Scientific represents the line in North America, so you specify, order, and service it locally. Pick the family that matches your application, then open its page at Heinzinger.
PNC: Universal High-Voltage
Primary switched-mode, voltage-stabilized high-voltage supplies for research and industry. Residual ripple and stability stay under 0.01 percent across the range, which makes the PNC a general-purpose high-voltage source for demanding laboratory and production work.
View the PNC series →PNC 3p: Three-Phase High-Voltage
The three-phase-input version of the PNC series, for higher-power high-voltage applications. It carries the same voltage-stabilized, low-ripple design as the PNC, scaled up for installations that draw more power from a three-phase supply.
View the PNC 3p series →NCE / LNCE: High-Voltage Cassettes
High-voltage cassettes and modules up to 60 kV, available as AC/DC or DC/DC and remotely controllable through an interface. Built for OEM integration, they drop into larger systems where high voltage is one part of a bigger instrument.
View the NCE / LNCE series →LNC: Compact Laboratory Supplies
Compact high-voltage laboratory power supplies delivering precise DC to 30 kV at up to about 60 W depending on version. High control accuracy and low residual ripple make the LNC a bench-friendly source for precise high-voltage work.
View the LNC series →PTN: High-Current DC Supplies
High-current DC power supplies with very low residual ripple and output currents up to 200 A. The PTN suits applications that need clean, stable high current rather than high voltage.
View the PTN series →

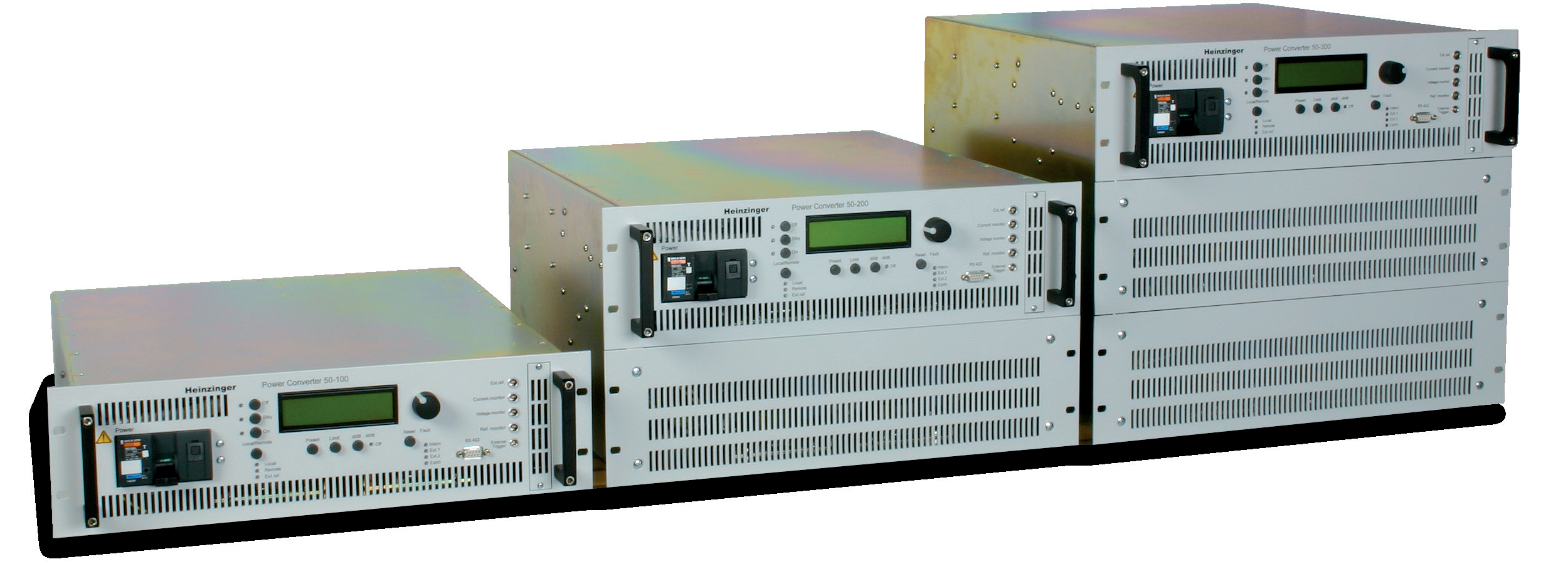

PCU: High-Precision Magnet Supplies
High-precision magnet power supplies with output current to 340 A at 50 V and power classes of 5, 10, and 15 kW, higher on request. Accuracy and stability reach 5 ppm with a temperature coefficient under 5 ppm, DCCT current measurement, a programmable current ramp, analog (0 to 10 V) and RS422 digital interfaces, and short-circuit-proof operation. Used as reliable magnet supplies in 24/7 operation at research institutes, with applications in accelerators (kickers, detectors), mass-spectrometer detectors, and semiconductor and high-voltage test.
