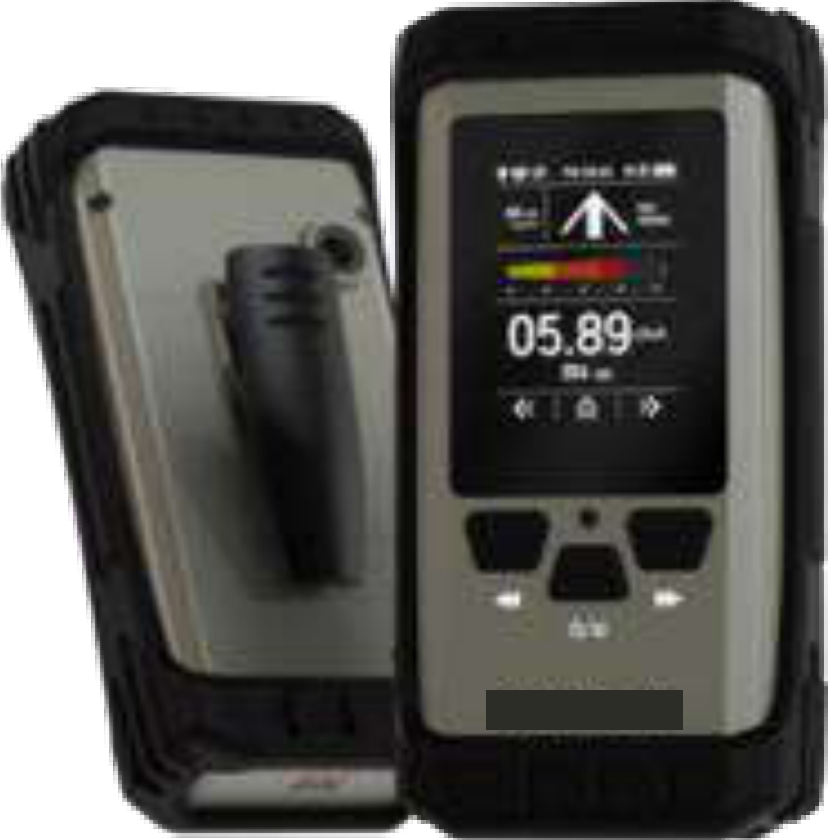

1Overview
The Model SAM 920+ SPRD is a handheld spectroscopic personal radiation detector. It brings RIID-class detection, isotope identification, and field connectivity into a compact personal form factor that stays affordable to deploy at scale. The SAM 920+ SPRD is built for reliable nuclide identification with enhanced neutron sensitivity, and it follows ANSI N42.48. GPS and network connectivity let the unit aggregate field data into shared radiation maps. Sourceless auto-stabilization holds the energy calibration steady without a check source. A built-in camera, GPS, and gyro support the survey workflow, and one-touch reach-back connects the operator to expert review in the field.
2Applications
- Homeland security
- Emergency response
- Safeguards and nuclear security
- Radiological area mapping
- Geological radiation survey
3Key Features
- ANSI N42.48 compatible
- Enhanced neutron sensitivity
- Built-in camera, GPS, and gyro sensors
- One-touch reach-back service
- Sourceless auto-stabilization
- Big-Data radiation mapping
4High-Performance CLLBC Scintillator

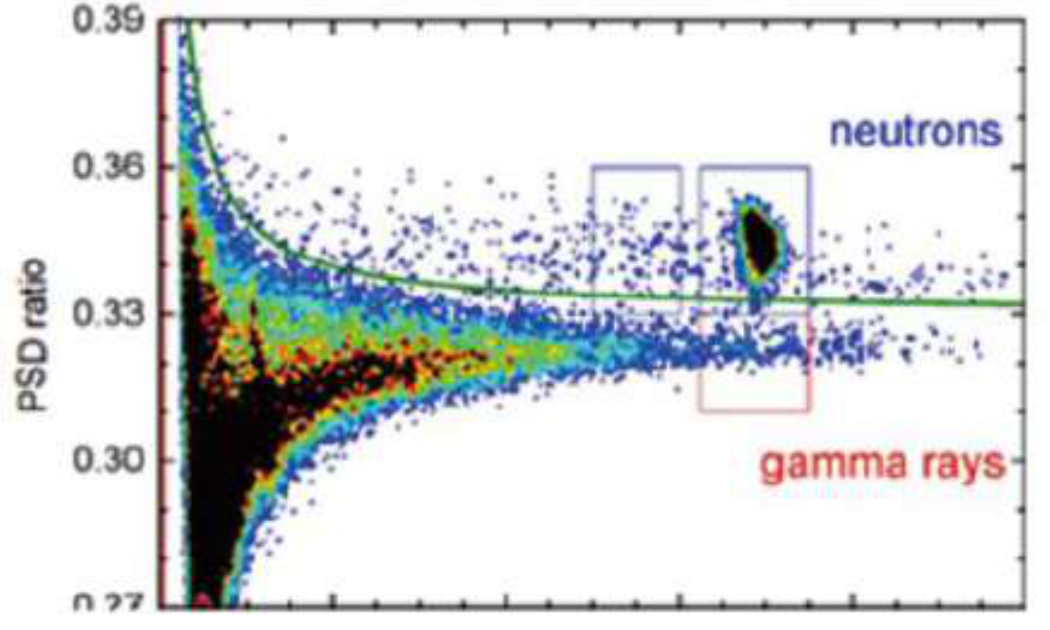

The SAM 920+ SPRD uses a CLLBC scintillator, which detects gamma rays and neutrons at the same time. CLLBC improves gamma energy resolution and increases neutron sensitivity compared with conventional materials. An onboard algorithm optimizes the separation between gamma and neutron events, so the operator reads a clean result for each radiation type.
5Radiation Mapping (Big-Data)

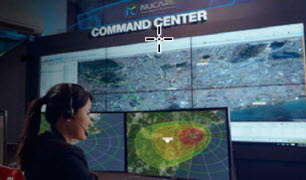

GPS and network connectivity work together to aggregate field survey data, the Big-Data layer, into radiation maps. A map shows source locations and contaminated areas across the survey region. The workflow moves through four stages: field collection in the survey area, on-site operation of the detector, data transfer to the command center, and a finished radiation map for the response team.
6Description of Device

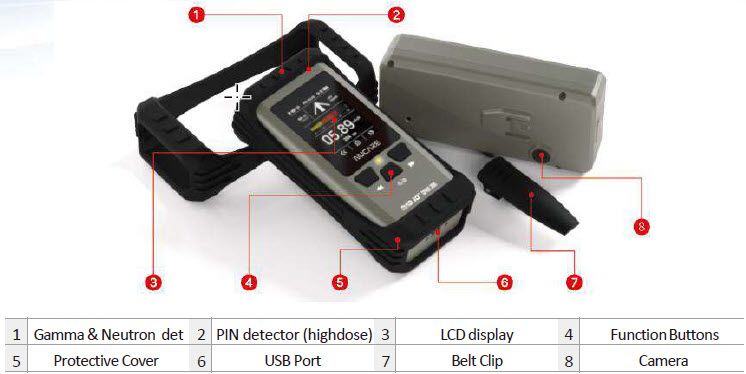

The SAM 920+ SPRD is compact, light, and easy to operate in the field. The numbered callouts below identify the main components.
- Gamma and neutron detector
- PIN detector (high dose)
- LCD display
- Function buttons
- Protective cover
- USB port
- Belt clip
- Camera
7Application Software

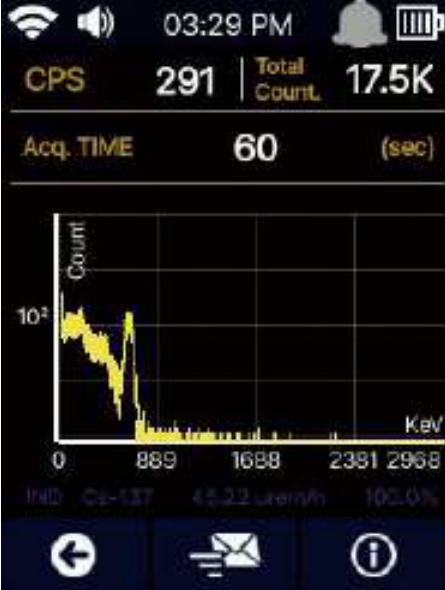

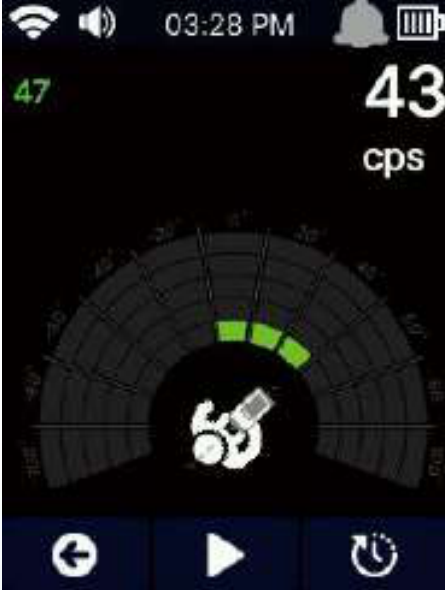

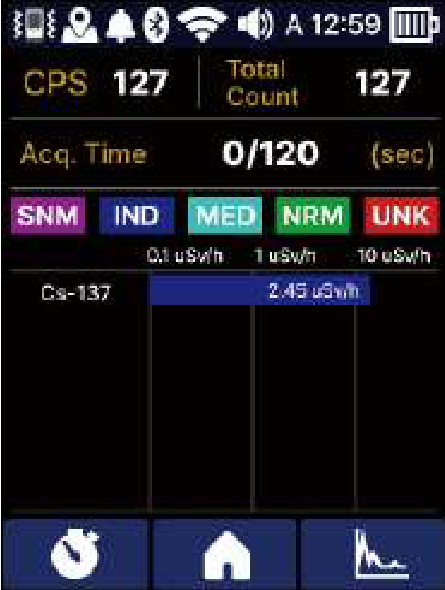

The application software uses an intuitive menu with a hierarchical design and an ergonomic keypad, so operators move through detection, identification, and review without a long learning curve. The screens below show the main views.
Alarm Status

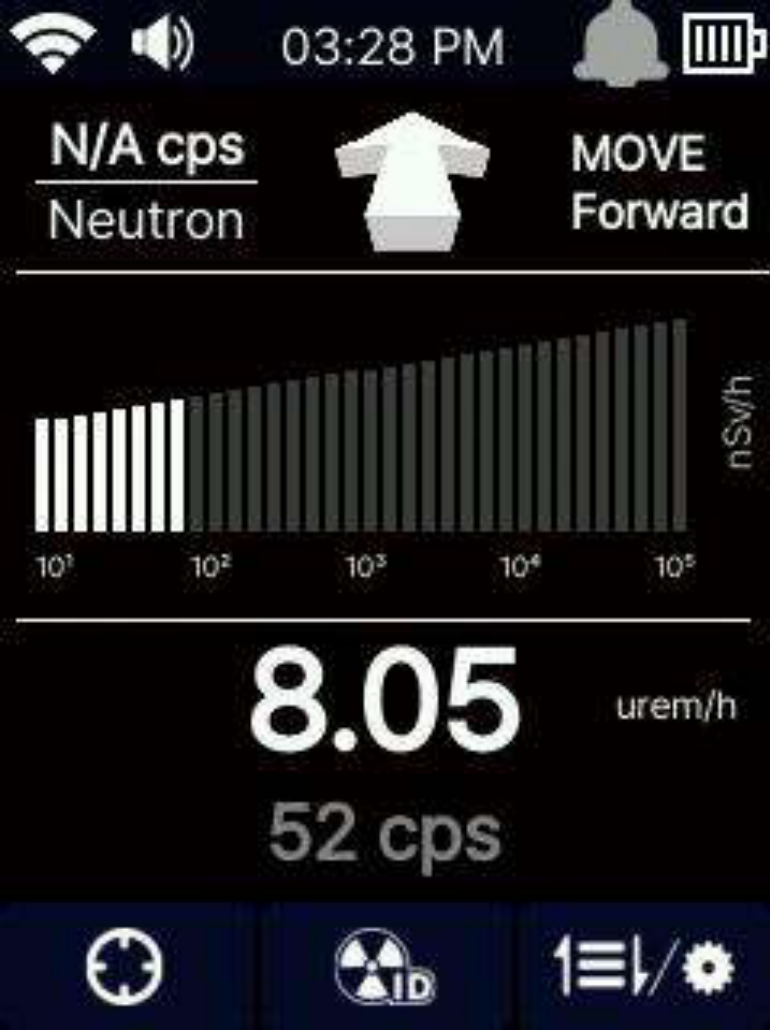

The dose-rate alarm uses four levels to guide the operator toward or away from a source: Move Forward, Move Back, In Range, and Danger. Each level maps to a clear on-screen icon.
8Specifications
| Parameter | Specification |
|---|---|
| Detectors | |
| Gamma-only detector | CsI(Tl) and PIN detector (for high dose) |
| Gamma and neutron | CLLBC and PIN detector (for high dose) |
| Performance | |
| Energy range | 30 keV to 3 MeV |
| Dose rate range | <100 nSv/h to 1 mSv/h (CsI or CLLBC), 1 mSv/h to 10 mSv/h (PIN diode) |
| Energy resolution | <8.5% (CsI), <4% (CLLBC) |
| Sensitivity | CsI(Tl) 3.8 cps/µrem/h @ Cs-137, CLLBC 1.3 cps/µrem/h @ Cs-137 |
| Linearity | <2% (real-time linearization by firmware) |
| MCA channels | 16-bit, 1024 channels |
| Stabilization | Temperature-corrected real-time stabilization |
| Identification | ANSI N42.48 compatible |
| Battery | |
| Type | Li-ion |
| Operation time | Sleep mode 16 hr (display backlight off), max run time 6 hr |
| Physical | |
| Dimensions (W x H x D) | 70 mm x 148 mm x 38 mm |
| Weight | 340 g |
| Environmental | |
| Operating temperature | -20°C (-4°F) to 50°C (122°F) |
| Protection rating | IP65 |
| Relative humidity | 10 to 80%, non-condensing |
| Testing condition | EN 61326, MIL-STD-810G 501.5, MIL-STD-810G 514.6 |
| Display | |
| Type | LCD |
| Size | 2.4 in |
| Resolution | 240 x 320 pixels |
| Input / Output | |
| USB | USB-C |
| Bluetooth | BLE 5.0 |
| WLAN | IEEE 802.11 b/g/n |
| Miscellaneous | |
| GPS | 22 tracking, 66 channels, 1-10 Hz |
| Reach-back | ANSI N42.42 or CSV event data |
| Camera | CMOS 8 MP |
| Gyro sensor | Linearity 0.1 ±% FS |
| Accessories | |
| Carrying case | Portable hard case |
| Charger | USB charger |
| Belt clip | Belt clip |
| Connection cable | Mini USB cable |
Safety, EMC, and Environmental Compliance
The SAM 920+ SPRD is tested to EN 61326 for measurement, control, and laboratory equipment, and to MIL-STD-810G methods 501.5 and 514.6 for high temperature and vibration. The enclosure carries an IP65 protection rating. The SAM 920+ is CE and FCC compliant.
