EMI / EMC Pre-Compliance Testing

The fix is to find those emissions earlier, during R&D, on your own bench. The offending signal is often a broadband impulsive burst from a switching supply, or a narrow-band spur from a clock harmonic, sitting low in the ambient noise of a normal lab. A swept analyzer steps across the band one slice at a time, so an intermittent impulsive event can fire and fade in the gap between sweeps and never show up. The result is a fault that is present but rarely seen.

What pre-compliance work needs is a way to watch the whole band at once, hold onto rare events long enough to recognize them, and pull a weak spur out of the noise floor where it hides. Seeing the spectrum is not enough. The spectrum has to be seen as it behaves over time.

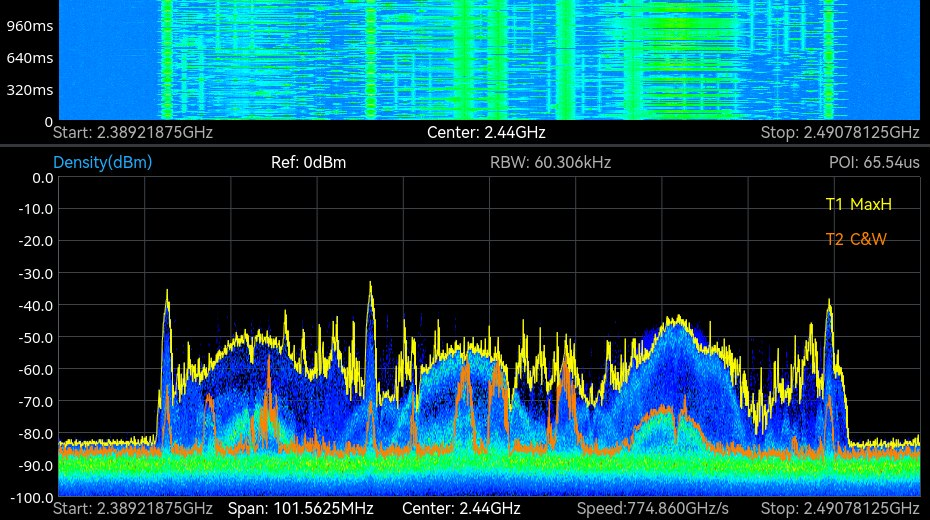

The real-time density display and a max-hold trace do the rest. The density display colors each point by how often it is occupied, separating a constant carrier from a rare burst by how the trace paints over time. The max-hold trace keeps the highest level seen at each frequency, so a broadband impulsive event or a narrow spur that appears once leaves a permanent mark. A signal buried in ambient noise that a single trace would average away stands out once it has been held.

The SpectraCore software ties this together with the spectrogram and historical trace and the controls to zoom from a wide survey down to a single suspect harmonic. An engineer can sweep a board, spot the emission, characterize it, and verify a mitigation, all on the bench, before committing to a paid compliance slot. The goal is to walk into the chamber with the emissions already found and fixed.

On the ICX-FieldHawk handheld (ICX-045/060/090), that bench diagnostic work is joined by a standards-based measurement: EMI Pre-Compliance Measurement (opt. 74) runs Peak, Quasi-Peak, Average and RMS detectors in parallel at CISPR 16-1-1 resolution bandwidths, checks the trace against a preloaded FCC Part 15 / CISPR 11, 22, 32 / IEC limit-line library, and flags any point that crosses the selected line automatically. The density display and max-hold still do the early hunting: finding and localizing the offending emission. Option 74 is the step after, confirming whether that emission would fail.

Which models and accessories fit

For bench emissions work, the recommended platform is the ICX-Series USB core module. It connects to a laptop or workstation, turning it into a full real-time analyzer with the density display and max-hold trace that pre-compliance work depends on. Driven through a near-field probe set, it lets an engineer hover over a board, a cable, or a connector and localize the source of an emission down to the component, not just confirm that one exists.

Pair the receiver with the RFA-3100-N antenna for radiated pickup from 500 MHz to 10 GHz at a short distance, which helps correlate a near-field find with a far-field emission. Below 500 MHz, where CISPR radiated limits begin at 30 MHz and many failures sit, use a biconical or log-periodic antenna with its antenna factor entered through the analyzer’s Antenna Factor function. For a fixed bench station, the same real-time engine runs under SpectraCore as a benchtop setup, giving a repeatable, documented pre-compliance position that engineering can return to between design revisions.

When the check needs to be measured against a limit line rather than just seen, move to the ICX-FieldHawk handheld (ICX-045/060/090) with EMI Pre-Compliance Measurement (opt. 74). It runs the CISPR-standard detector and bandwidth set against a preloaded limit-line library and reports pass/fail margin directly, so the same bench that localized the emission can also predict the chamber result.
