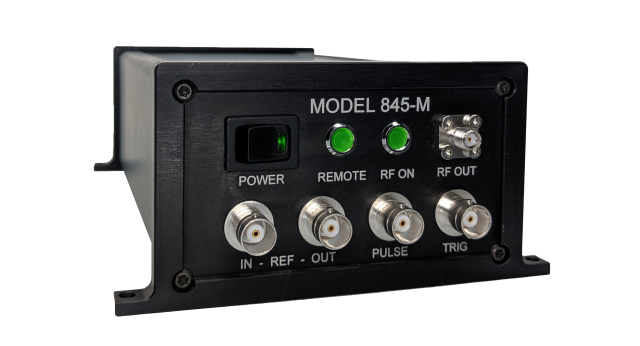

Model 845-M | 10 MHz to 20 GHzLow Noise Microwave Synthesizer
The 845-M is a wideband low phase-noise synthesizer operating up to 20 GHz. The module has a milli-Hz frequency resolution and uses a high-stability internal reference. The internal reference can be phase-locked to a programmable external reference.
The module has a USB and LAN interface and can be controlled using SCPI 1999 command sets. This small module operates with an external 6V DC supply and includes BNC’s SigGen GUI software package.
Features
- Low Phase Noise
- Fast Switching
- Wideband DC Frequency Modulation
- Internal OCXO Reference
- Single 6V DC Supply
- Small Footprint
Applications
- ATE
- LO for Frequency Converters
- Telecom / SatCom
- Embedded Systems
- OEM Microwave Signal Source
Number of Channels
1 (standard) or 2 (with 845-M-X)
Frequency
Range: 0.01 to 20 GHz
Resolution: 0.001 Hz
Accuracy: 0.1 ppm
Output Power
+23 dBm
Switching Speed
180 µs (25 µs with option FS) *see dimensions below
Phase Noise (1 GHz CW)
1 kHz offset: -118 dBc/Hz
20 kHz offset: -128 dBc/Hz
Wideband Noise: -150 dBc/Hz
Remote Control (SCPI v1999)
Ethernet, USB
Modulation
Pulse (Internal and External mode) and FM, Phase and Chirp (Internal mode only)
Sweeps
List, Frequency
Dimensions (W x L x H), Weight
845-M : 8.27″ x 4.13″ x 2.36 “ [210 x 105 x 60 mm], 2.1lbs [0.95 kg]
845-M [ with option FS ]: 10.62″ x 4.13″ x 2.36 “ [270 x 105 x 60 mm], 2.2lbs [1 kg]
845-M-X : 19inch 1U Rackmount enclosure 16.8″ x 18.1″ x 1.7″ [426 x 460 x 43 mm], 10 lbs [4.5 kg]
Shipping Dimensions
18x12x9″
Shipping Weight
5 lbs
FS
Ultra-Fast Switching Speed
1URM
19″ 1U Rackmount enclosure
VREF
Variable External Reference Input (support clock frequency from 1 to 250MHz with 1MHz steps)
GPIB
GPIB interface (required option 1URM)
P/N 7134
Spare Power Supply
P/N 7145
19″ 2U 845-M/865-M Dual Rackmount kit
