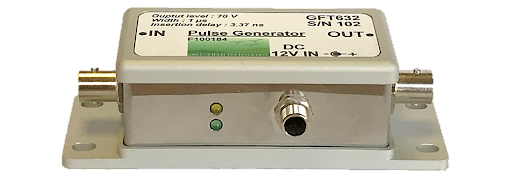

The external triggered module is a pulse generator up to 70 V amplitude. This compact module produces square pulses up to 70 V into 50 Ω with fast 2 ns rise time. The output amplitude is factory adjusted from 15 V to 70 V. The output width is also factory adjusted from 50 ns to 1 μs.
Typical applications include amplifying the output of Greenfield Technology Pulse and Delay Generator (GFT1004 with 10 channels or GFT1020 with 20 channels). In this application the module can be up to 20 meters from the Pulse and Delay Generator and nearer the device to be triggered.
Overview
- Output pulse 32 V amplitude into 50 Ω
- <3 ns rise time
- 1 μs width
- <2 ps RMS jitter
- External trigger input
- Operate from standard +12 V AC to DC adapter furnished
- Compact module
- Output pulse options:
- Amplitude 15 to 70 V
- Width 50 ns to 1 μs
• Test and Measurement
• ATE Application
• Pulse Amplifier
• Precision Pulse Application
Specifications
|
Input |
||
|
Amplitude |
Positive >2 V (max input safe is ±50 V, 1 µs) |
|
|
Internal terminaison |
50 Ω |
|
|
Rise Time |
<5 ns |
|
|
Threshold |
+1.5 V |
|
|
Width |
>10 ns |
|
|
Repetitive rate |
10 kHz (max.) |
|
|
Connector |
BNC |
|
|
Output |
||
|
Pulse shape |
Rectangular |
|
|
Amplitude |
32 V +/-0.5 V (can be adjusted: see option 1) |
|
|
External load |
50 Ω |
|
|
Rise time |
<2 ns |
|
|
Fall time |
<15 ns |
|
|
Width (FWHM) |
1 µs +/-5 % (can be adjusted: see option 2) |
|
|
Insertion delay |
<5 ns (input to output) |
|
|
Jitter |
<2 ps RMS (from input to output) |
|
|
Connector |
BNC |
|
|
General |
||
|
Size |
106.0 x 38.5 x 31.6 mm |
|
|
Power V/A |
+12 V / 200 mA max. |
|
|
Power connector |
Locking Power Jack |
|
|
Power adapter |
External AC (90 to 240 V) to DC adapter furnished |
|
|
LED Indicators |
Green (Power), Yellow (Input Rate) |
|
|
Output options |
||
|
Option 1: Output amplitude: 15 to 70 V (ask to factory) |
||
|
Option 2: Output width: 50 ns to 1 µs (ask to factory) |
||
