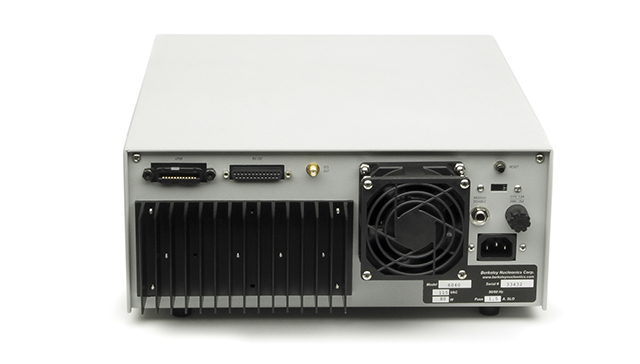

Model 6040 | 100 MHz Universal Pulse Generator
Front Panel Interface
Delay Setup
Ext. Trigger Level Setup
Optical Power Setup
Overview

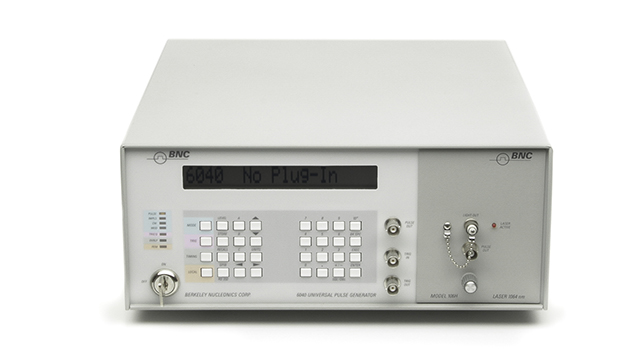

Model 6040 Front Panel Interface
- Pulse Width and Delay Setup
- Trigger and Trigger Level Setup
- Optical Power and Pulse Amplitude Setup
- Communication Setup
Even the mainframe 6040 without any module provides capable positive and negative outputs. Capabilities of the mainframe with its modules include single pulse, double pulse, impulse, external drive, external modulation, and CW. The modules themselves determine which of these capabilities are available. Some modules can operate to the full repetition rate of the mainframe; others are limited to a smaller number.
Specifications
The Model 6040 Mainframe
Listed below are the timing and output characteristics of the 6040 mainframe. However, modules determine specific performance limits and characteristics such as maximum pulse width and maximum rep rate.
Internal Rep Rate Generator
0.01Hz to 100 MHz
Accuracy: 0.01%
Pulse Width
3 ns to 640 secs, resolution of 1 ns or 5 digits,
Accuracy 0.2%
Jitter 25 ps (typ)
Delay
0 ns to 640 secs, resolution of 1 ns or 5 digits,
Accuracy 0.2%
Jitter 25 ps (typ)
Trig Out
3 ns wide, 2V high T0 pulse into 50 Ω.
Pulse Out
+4V pulse into 50 Ω (typ)
Transition Time
1 ns rise time
1.5 ns fall time
ECL Out
An ECL level output into 50 Ω.
700 ps rise time (typ)
External Trigger
0 to 100 MHz,
User-selectable Slope and Threshold settings
50 Ω input impedance.
Single Cycle
Front Panel push-button initiates a single pulse cycle.
Double Pulse
A pair of identical Width pulses separated by the Delay for each event.
Impulse
A sub-ns impulse is provided for each event. (optical only)
External Drive
An incoming waveform drives the output of a module between two selected levels.
External Modulation
Analog or digital signals modulate the output of an optical module with high bandwidths. (optical only)
CW
Constant light level outputs. (optical only)
Shipping Dimensions
20x17x10″
Shipping Weight
18 lbs
Options
Electrical Modules
These interchangeable modules provide electrical signals from 5V, 180ps risetimes to 800V, 10 ns risetimes. The higher amplitudes have slower risetimes and the slower risetimes result in reduced maximum rep rates.
Electrical Module
Characteristics
Amplitude
Offset
Max Rate
Risetime
Min Width
Max Width
Optical Modules
These interchangeable modules provide wavelengths of 635 nm, 650 nm, 660 nm, 850 nm, 904 nm, 1064 nm, 1300 nm and 1550 nm. Other wavelength options may be available so check with the factory if you have special needs. The optical modules offer rep rate, delay, and width control, as well as amplitude, adjust essentially providing the optical equivalent of an electrical pulse generator. For all the modules, light is conveniently provided at end of an optical fiber for easy routing on an optical bench or to a test system.
| Optical Module | Wavelength | Standard Peak Power | Custom Peak Power* | Fiber | Max Rate | Min Width | Max Width | Impulse | CW | Ext Mod | Ext Dr |
| 065 | 650 nm 635nm, 660nm |
2 mW | 10 mW | MMF | 100 MHz | 3 ns | 640 sec | yes | yes | yes | yes |
| 085 | 850nm | 2 mW | 20 mW | MMF | 100 MHz | 3 ns | 640 sec | yes | yes | yes | yes |
| 090 | 904 nm | 1 mW | 20 mW | SMF | 100 MHz | 3 ns | 640 sec | yes | yes | yes | yes |
| 106C | 1064 nm | 1 mW | 20 mW | SMF | 100 MHz | 3 ns | 640 sec | yes | yes | yes | yes |
| 106H | 1064 nm | 50 mW | 200 mW | SMF/MMF | 2 kHz | 10 ns | 25 ns | no | no | no | no |
| 130 | 1300 nm | 1 mW | 10 mW | SMF | 100 MHz | 3 ns | 640 sec | yes | yes | yes | yes |
| 155/158 | 1550 / 1580 nm | 1 mW | 10 mW | SMF | 100 MHz | 3 ns | 640 sec | yes | yes | yes | yes |
| 155H/158H | 1550 / 1580 nm | 50 mW | 200 mW | SMF/MMF | 2 kHz | 10 ns | 25 ns | no | no | no | no |
*Please consult BNC engineering before ordering
