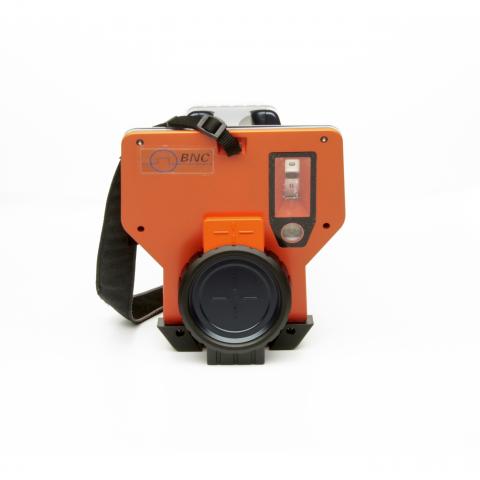

SAM 950 (RIID) | Ruggedized Radiation Isotope Identifier
A handheld radiation isotope identifier (RIID) designed to meet ANSI N42.34 requirements for hand-held instruments used in radionuclide detection and identification. Berkeley Nucleonics Corporation (BNC) manufactures this device, which incorporates a patented PDA-based architecture for operation in demanding environments.
The SAM 950 supports gamma and optional neutron detection. It targets applications in homeland security, first response, military operations, and field analysis of nuclear materials.
Key Features of the SAM 950 RIID
- Compliance with ANSI N42.34 standards for handheld radionuclide identifiers.
- Ruggedized construction resistant to water and shock.
- Patented PDA-based handheld RIID design.
- Automatic real-time calibration and stabilization using K-40.
- Touch-screen interface with gesture control.
- Integrated multimedia support (camera, audio, video tied to events).
- LED flashlight for target illumination.
- Blackbox replay for event logging.
- Optional solid-state or ³He neutron detector.
- Web-based training available.
- One-click reach-back for automatic file transmission (e.g., via email or RadResponder network).
Quick Specs
- Isotope Identification
- Detection Type: Gamma and Neutron
- Detector Size: 1.5×1.5, 2×2, 3×3
- RadResponder Enabled
- Wifi, Bluetooth, GPS, and USB
Applications
- Homeland Security
- Emergency Responder
- Safeguard and Nuclear Security
- Radiological Area Mapping
- Geological Radiation Survey
Key Features
- Designed to meet all ANSI N42.34 requirements
- Ruggedized Design – Water & Shock Resistant
- PDA based hand-held RIID (patented)
- One click reach back connect (send files automatically)
- Automatic System Calibration and Stabilization
- Database protocol for log files and alarm events
- Solid state or 3He neutron detector
- Multimedia support
- LED flash light for target identification
- Touch screen with gesture control
- NOTE – WEB BASED TRAINING AVAILABLE NOW
- Blackbox Replay Feature
- https://academy.berkeleynucleonics.com/
Applications
- Homeland Security
- Emergency Responder
- Radiological Area Mapping
- Geological Radiation Survey
- Safeguard and Nuclear Security
- Touch Screen Easy to use Reach-Back via E-mail
Input / Output
USB
Micro USB 2.0, IP65
Camera
CMOS 13.0 MP
GPS
Built-in GPS in Smartphone
AC Adapter
12V, 3A
Speaker
84dB(1W/0.5m), Water Proof
Display
5 inch Touch Screen
Physical
Dimensions (W x D x H)
192 x 356 x 214 (mm)
Weight
4.3kg (9.5 lb) w/ 3×3 inch NaI(Tl)
3.2kg (7 lb) w/ 2×2 inch NaI(Tl)
2.9kg (5lb) w/ 1.5×1.5 inch LaBr3, CeBr3, NaI
Shipping Dimensions (W x D x H)
20 x 17 x 10″
Shipping Weight
25 lbs
Environmental
Operating Temperature
-15℃(5℉)~50℃(122℉)
Relative Humidity
10 to 80%, non condensing
Performance
Energy Resolution (Gamma)
NaI(Tl) 2×2, 3×3 inch : < 7%@662 Kev,
LaBr3 2×2 inch : < 3% @662Kev,
CeBr3 2×2 inch : < 4% @662Kev
Energy Range (Gamma)
20 keV – 3 MeV
MCA Channel
10bit, 1024 channel
Dose Rate Range
0 – 10 mR/h (NaI), 10 mR/h – 10R/h (GM)
Stabilization
Automatic real-time stabilization using K-40
Nuclide Identification
According to ANSI N42.34, isotope/category/confidence report
Battery
> 8 hours, Lithium Ion
