Model 12000 | RF Benchtop Power Meter 4 kHz to 40 GHz (12200 series compatibility only) [Obsolete]

Model 12000 | RF Benchtop Power Meter4 kHz to 40 GHz (12200 series compatibility only) [Obsolete]

The 12000 series provide design engineers and technicians the utility of traditional benchtop instrument, the flexibility and performance of modern USB RF power sensors, and the simplicity of a multi-touch display built with award-winning technology.

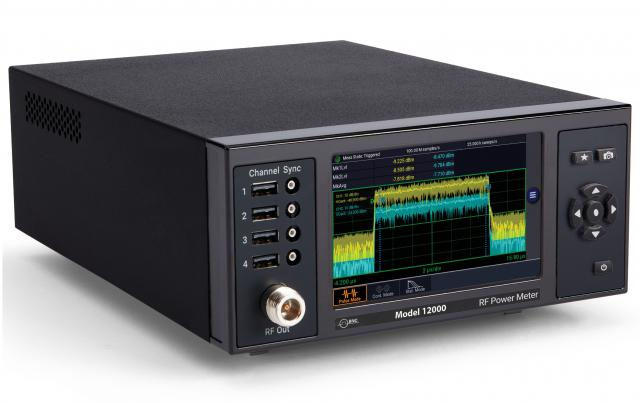

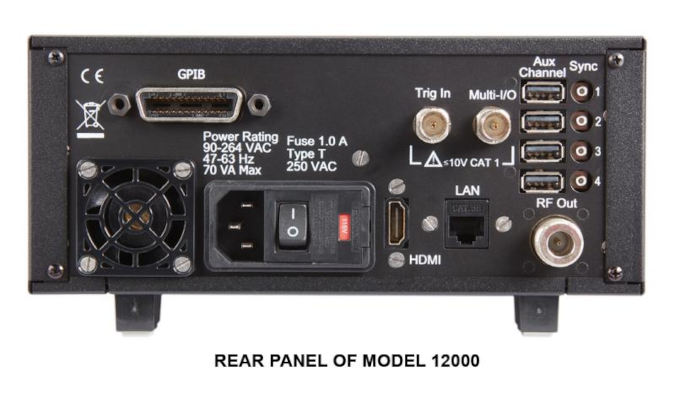

As a benchtop meter, the 12000 series provide a standalone solution for capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains through an intuitive, multi-touch touchscreen display.

The Model 12000 RF Power Meter utilizes up to four Berkeley Nucleonics’ RF Pulse Power Sensor families of USB RF power sensors with industry-leading performance and capabilities either independently or for synchronized multi-channel measurements of CW, modulated, and pulsed signals.

Providing the ultimate flexibility, the 12000 series of sensors can be disconnected and independently used as standalone instruments.

Please contact info@berkeleynucleonics.com for alternative solutions or recommended replacement models.

Model 12000 RF POWER METER CONFIGURATOR

Features

Capture/display/analyze peak and average power
Frequency range from 4 kHz to 40 GHz
Industry-leading video bandwidth (195 MHz) and rise time (3 ns)
Industry-leading 100,000 measurements per second
Industry-leading time resolution as fine as 100 ps
Synchronous multi-channel measurements (up to 4 channels)
Sensors can be used as standalone instruments
supports direct SCPI commands

Applications

Production line testing of electric devices
Evaluation of large current equipment
Battery or DC driven device evaluation
Quality assurance
Efficiency measurement for industrial motors, rotating machinery and calibration labs
For installation and maintenance tasks partly for R&D
Used to measure grid power
High-security RF scenarios

Downloadable Resources

Downloadable resources such as datasheets, firmware, software, drivers and products manuals. Alternatively, you can browse resources directly by visiting our downloads page.

Price lists are available to our registered users. To view pricing for this and other products, please log in or create a free account.

Number of Channels:	2 Channel 4 Channel
Options:	[-GPIB] GPIB Port [-SECURE] No Internal Storage, Boot from USB Drive (Included)

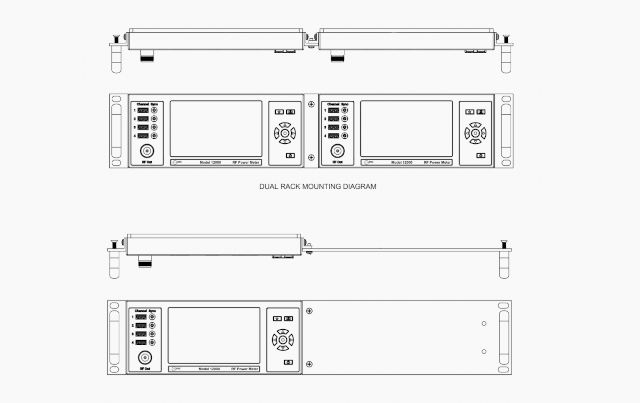

Accessories:	[-RM] 19″ Rackmount Kit (compatible with 1 or 2 Power Meters side by side)
Add a Power Sensor(s):	[-12206S] 50 MHz to 6 GHz [-60 to + 20dBm (Ave), -50 to +20 dBm (Pulse) [-12208S] 50 MHz to 8 GHz [-60 to + 20dBm (Ave), -50 to +20 dBm (Pulse) [-12218S] 50 MHz to 18 GHz [-34 to + 20dBm (Ave), -24 to +20 dBm (Pulse) [-12218L] 50 MHz to 18 GHz [-50 to + 20dBm (Ave), -40 to +20 dBm (Pulse) [-12240S] 50 MHz to 40 GHz [-34 to + 20dBm (Ave), -24 to +20 dBm (Pulse) [-12240L] 50 MHz to 40 GHz [-50 to + 20dBm (Ave), -40 to +20 dBm (Pulse)
Model 12000-2 2 Channel, 4kHz – 40GHz RF Power Meter
