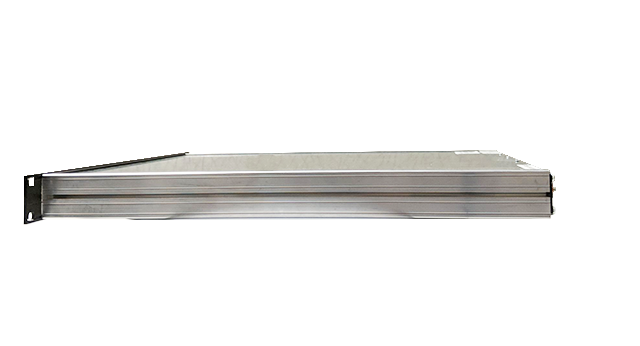

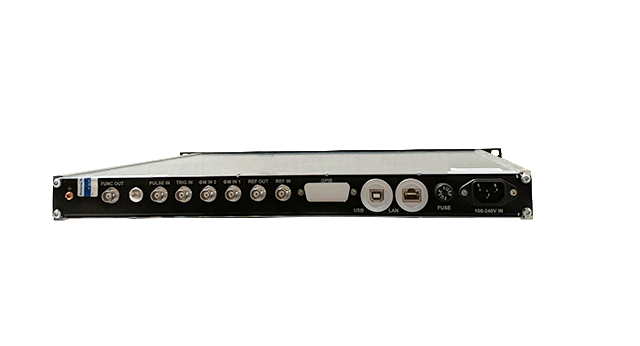

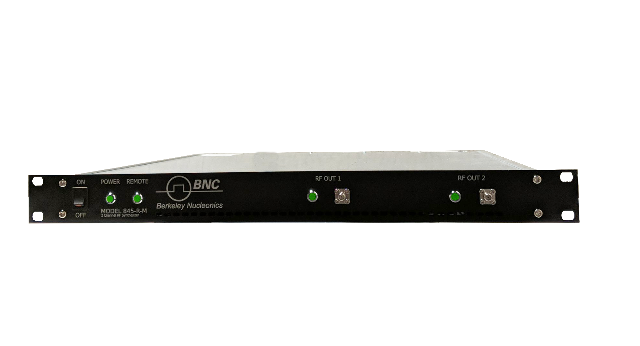

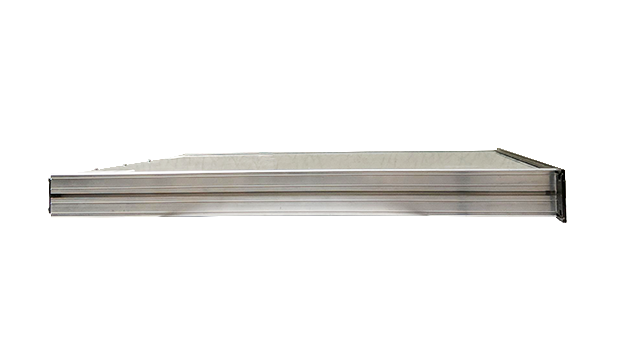

Model 845-M-X | 10 MHz to 20 GHzWideband Low Noise Microwave / RF Synthesizer
The Model 845-M-X is a one or two-channel wideband low phase-noise synthesizer operating up to 20 GHz. The module has a sub-Hertz (1 mHz) frequency resolution and uses a high-stability internal reference. The internal reference can be phase-locked to a programmable external reference. The module has a standard USB and LAN interfaces and an optional GPIB interface and can be controlled using the SCPI 1999 command set.
Overview
Features
- Low Phase Noise
- Fast Switching down to 20 µs
- FM, Chirps, Pulse
- Internal OCXO, External variable reference
Applications
- Automated Testing Environment (ATE)
- Local Oscillator (LO) for frequency converters
- Telecom / SatCom
Specifications
Number of Channels
1, 2
Frequency
Range: 0.01 to 20 GHz
Resolution: 0.001 Hz
Accuracy: 0.1 ppm
Output Power
+23 dBm
Switching Speed
150 µs (30 µs with option FS)
Phase Noise At 1 GHz
at 1 kHz: -118 dBc/Hz
at 20 kHz-128 dBc/Hz
at 10 MHz: -150 dBc/Hz
Remote Control (SCPI 1999)
Ethernet, USB (optional GPIB)
Sweeps
List, Frequency
Dimensions (W x L x H)
Weight
16.93 x 18.11 x 1.69 in [430 x 460 x 43 mm]
17 lbs (8 kg)
Shipping Dimensions
23x23x19″
Shipping Weight
19 lbs
Options
Model Summary
FS
Ultra-Fast Switching Speed
GPIB
GPIB interface
