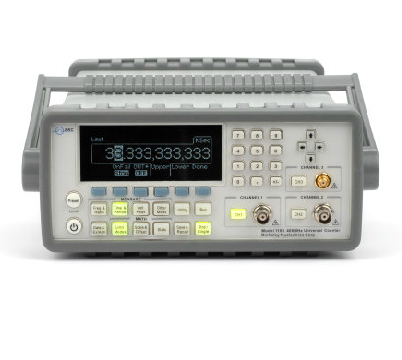

A new counter, Model 1105, from Berkeley Nucleonics compares favorably to existing counters. The 1105 has 12 digits of frequency resolution and 40 ps of time interval resolution. The real-time DSP front-end facilitates faster measurement throughput. Compare our specifications and price to the Agilent 53132A or the Fluke PM6685.
We have made the front panel controls more user-friendly. The SCPI software commands are compatible with the most commonly-used counters so you do not have to rewrite your software. Our LAN control feature lets you control one or several 1105's from your computer with displays of the control or measurement function you want.
Impressive 12 Digits Resolution & 6 GHz Frequency Measurements
The Model 1105 includes a RF Channel 3 with a range from 375 MHz to 6GHz and standard Channels 1 & 2 from 1 mHz to 400 MHz. Up to 20 frequently-used setups may be stored in memory. Our design features full front-end isolation.
Packed with Many New Features
The BNC Model 1105, ISO 9001 compliant, gives users of existing counters all the measurement capability they are used to, with a few exciting new twists. Our new counter provides great features including Frequency & Ratio (11 digits/sec.), Time interval, Period (2.5 ns to 1000s), Duty Cycle, Pulse Width, Rise/Fall Time, Peak Volts (100 Hz~300 MHz), Phase, Totalize, with a time base temperature stability of < 1 PPM and aging rate of < 2 PPM per year and timebase in/out channels. (figure 2) One can measure the peak voltage of incoming waveforms as well.
The BNC Model 1105 offers built-in statistics and math functions. Users can measure and display mean, min/max, delta & standard deviation (Figure-4). These apply to period, frequency, time interval, risetime and peak voltage measurements. Scale & offset can be easily used in compensating for systematic occurrences.
All functions are controlled by either the front panel or via remote control. USB control is standard; GPIB is optional. Data logging to a spreadsheet is easily accomplished with free software. Of interest is the Ethernet connectivity via your LAN, using your IP address. You can control and display the parameters of several 1105's from your local computer.
Fast Measurement & Special Applications
Besides the real-time DSP (digital signal processing) technology, which speeds the measurement process, a Limit Mode allows users to set margins according to their specific measurements. Go-NoGo commands can be issued via the USB. You may control what happens when a limit is exceeded eg. store current data, stop measuring, and generate an output signal to trigger an external device.
Handy Software & Familiar SCPI Commands
Users can obtain data logs (see Figure9) in Excel via USB or via an optional GPIB interface. Our web-support mode allows the 1105 to be connected to your office LAN (see Figure 10). Users simply call up an Ethernet address (Default: 192.168.0.247) on a local web browser. In addition, we have SCPI commands that are compatible with the Agilent 53132A.
Labview Driver for the Model 1105 Universal Frequency Counter and Time Interval Counter. The Model 1105 is a full featured measurement tool for test benches ranging from simply hobbiests to the most demanding, double-digit picosecond measurements. The Universal Counter also handles measurements of frequency, frequency ratios, pulse widths, duty cycle, rise and fall times, phase, event counts, voltage peaks and mean (min/max) with standard deviations.
Signal Input Range
LVTTL and TTL Compatible
|Pulse Witdh||> 50 ns|
|Start-to-Stop Time||> 50 ns|
|Damage Level||12 Vrms|
External Arm Input Characteristics
|Input Capacitance||17 pF|
|Start Slope||Positive or Negative|
|Stop Slope||Positive or Negative|
|Notes||1. External Arm is available for all measurements except Peak Volts
2. External Arm is referred to as External Gate for some measurements
Internal Time Base Stability
|Standard (0° to 50°C)||High Stability Oven (1105-opt01)|
|Temperature Stability (referenced to 25°C)||± 1 x 10E-6||± 5 x 10E-10|
|Aging Rate||Per Day
|± 2x 10E-6||± 8 x 10E-8|
|Turn-on stability vs time (30 min.)||± 2.0 x 10E-8
(referenced to 24 hours)
External Time Base Input Specifications
|Input Capacitance||25 pF|
|Input Frequency||10 MHz|
Internal vs. External Time Base Selection
|Manual||Select Internal or External|
|Automatic||Internal used when External not present (default)|
Time Base Output Specifications
|Output Frequency||10 MHz|
|Voltage||570 mVpp ( 0 dBm), typical|
|Impedance||50 Ω (typical), AC coupled|
|Frequency, Period Channel 1 and 2||1 mHz to 400 MHz (2.5 ns to 1000 s)|
|Trigger||Default setting is Auto Trigger at 50%|
|"Auto" Gate Time||0.1 sec|
|STD CH 3||375 MHz to GHz (0.166 ns to 2.6 ns)|
