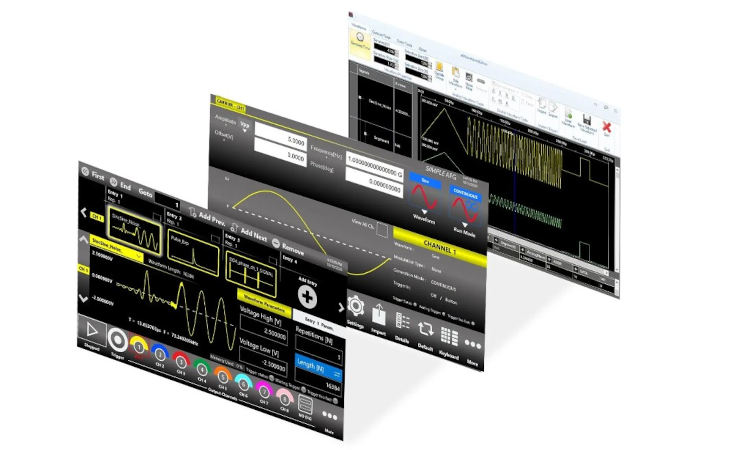

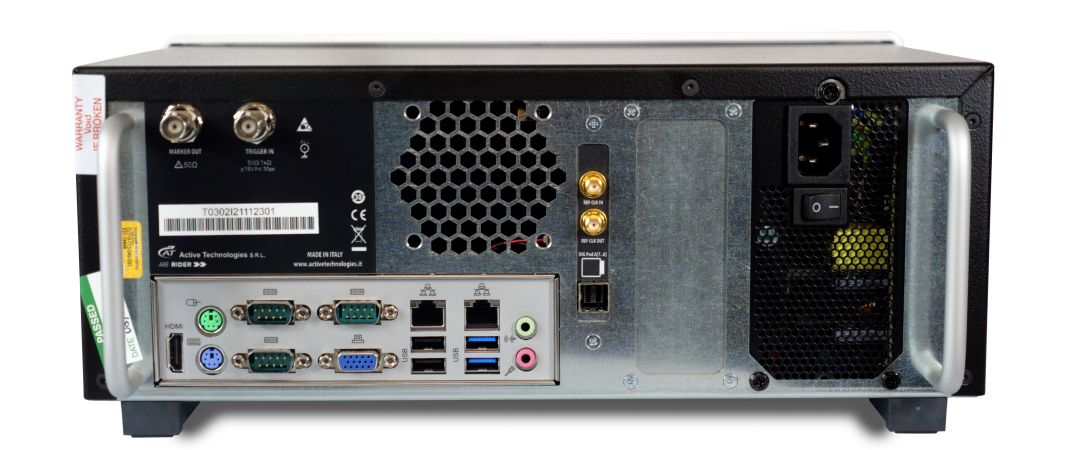

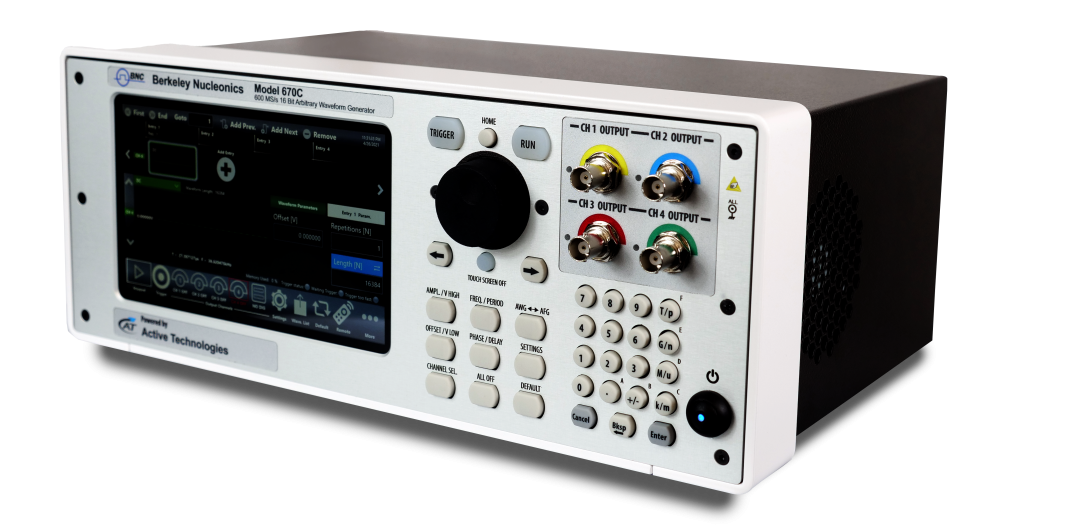

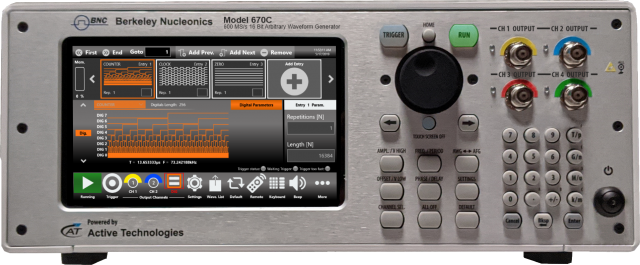

The Model 670C offers premium signal integrity with an easy to use and robust touch-screen display interface in a compact chassis. The output voltage can be adjusted in amplified mode up to 12 Volts. The innovative architecture provides unmatched performance, versatile functionality, outstanding usability, and future upgradability for the life of the instrument.
Model 670C CONFIGURATOR
| Number of Channels: | Two Channel Four Channel |
 |
| Memory Option: | 2 Mpts, Memory 600 MSa/s AWG 64 Mpts, Memory 600 MSa/s AWG 256 Mpts, Memory 600 MSa/s AWG 512 Mpts, Memory 600 MSa/s AWG |
|
| Output Options and Accessories: | [-HV2] High Voltage Output (12 Vpp into 50 Ω) [-DIG8] Eight Channel Digital License [-DTTL] 8 Bit LVDS to LVTTL Converter [-COM] GPIB and USBTMC communication [-RM] Rackmount kit |
|
|
Model 670C-2C
180 MHz, 2Mpts Memory, 600 MSa/s AWG
|
||
Overview
Features |
Applications |
|
|
| Modes of Operation | Arbitrary Waveform Generator (AWG) Arbitrary Function Generator (AFG) |
| Number of Outputs | 2 or 4 Analog Channels |
| Frequency Range | 1 µHz to 180 MHz sine wave (AFG Mode) 1 µHz to 160 MHz sine wave (AWG Mode) |
| Standard Waveforms | Sine, Square, Ramp, Pulse, Gaussian, Lorentz, Exp Rise, Exp Decay, Haversine, Sinc, Noise, Arbitrary, DC, Double Pulse |
| Arbitrary Waveforms | 16-bit Vertical Resolution 16,384 points (waveform length) |
| Run Mode | Continuous, Modulation, Sweep, and Burst |
| Amplitude Range | 0 to 6Vpp [optional 12Vpp] into 50 Ω |
| Amplitude Accuracy | ± 1% (of setting) + 5 mV |
| DC Offset Range | -3V to +3V [optional -6V to +6V] |
| DC Offset Accuracy | ± 1% (of setting) + 10 mV |
| Resolution | < 0.5mVpp ( or 5 Digits) |
| Internal Trigger Range | 13.4 to 100 seconds |
| Internal Trigger Resolution | 104ps |
| Internal Trigger Accuracy | ±(0.1% setting + 5ps) |
| Output Impedance | Single-Ended 50 Ω Low Impedance: 0 Ω |
| Sample Rate | 600 MS/s Variable Clock, 16-Bit Vertical Resolution (AWG Mode) 1.2 GS/s Fixed, 16-Bit Vertical Resolution (AFG Mode) |
| Trigger/Gate Input | 50 Ω / 1kΩ user-selectable input impedance Positive/ Negative or both polarity -10V to 10V Threshold level (10mV Resolution) 3ns minimum pulse width |
| Reference Clock Input | 50 Ω AC Coupled 5MHz to 100MHz -4 dBm to 11dBm sine or square wave |
| Reference Clock Output | 50 Ω AC Coupled 10 MHz (±2.0x10e-6 Accuracy) 1.65V Output Amplitude <20ps Jitter ±1.0x10e-6/year Aging |
| Modulations (Internal Frequency Range) (External Frequency Range) |
AM, FM, PM, FSK, PSK, PWM 500 µHz - 48 MHz 8MHz Max External |
| Digital Channel (optional) | 8 Bits 100 Ω differential 20ps jitter 600 Mbps max rate 2Msamples / Digital Channel (optional upto 256 MSamples) |
| Waveform Memory | Up to 256 Million Points |
| Bandwidth | 318 MHz (TrueARB Mode) |
| Waveform Memory | Up to 128 Million Points (TrueARB Mode) |
| Mechanical (W x H x D) Weight |
10.7 x 6.3 x 13.4 in [271 x 160 x 340 mm] 4.4 lbs [9.7 kg] |
| Power Source | 100 to 240 VAC / 45-66 Hz 100 Watts (max) |
| Compliance, Safety, and Immunity | CE compliant EN61010-1 EN 61326-1:2013 |
| Operating Environment | Temperature: +32 ºF to +122 ºF [0 ºC to +50 ºC] Humidity: 8% to 90% RH Altitude: 10,000 ft [3048 m] |
| Shipping Dimensions | 20x17x10" |
| Shipping Weight | 19 lbs |
Automotive
Today’s cars include highly sophisticated Electronic Control Units (ECU) with sensitive electronic components. The Model 670C combines 600MSa/s with a 14-bit vertical resolution, making it the ideal tool for successfully addressing emergent shifts in the automotive industry.
- CAN bus, CAN-FD, LIN, Flexray, SAE J2716 SENT Protocol Emulation
- EMI debugging, troubleshooting and testing
- Electrical standards emulation up to 12V
- Power MOSFET circuitry in automotive electronics optimization
IoT and Industry 4.0
Arbitrary waveform and function generators will help define new industrial practices for testing the compliance of smart devices. These machines can modulate RF I/Q to enable simulated testing environments and are capable of generating noise to test against wireless devices, allowing for emulations close to or matching compliance test standards required for industrial applications.
University and Research Institute
Research Centers and Universities are important users of the Model 670C Arbitrary Waveform Generator. A combination of fast edge generation, excellent dynamic range, and an accessible user interface enable scientists and engineers the ability to create strictly-defined, sophisticated pulse emulations. A perfect emulation based on variable edges, or multi-levels, fulfills an essential need in scholastic experiments such as accelerators, Tokamak, or synchrotrons--without the need for expensive custom test boards.
- Emulation of Detectors
- Emulation of Noise adding Signal Sources
- Generation or Playback of Real-World Signals
- Emulation of Long PRBS (Pseudo-Random Binary Sequence)
- Modulating and Driving Laser Diodes
Aerospace and Defense
EW signals, driven by radar or sonar systems, match perfectly with the Model 670C Performance Arbitrary Waveform Generator. Large BW Riders can be used on digital modulation systems for Radio Applications or other I/Q signal modulations. Additionally, pulses may be generated for applications such as pulse electronic beams, X-ray sources, flash X-ray radiography, lightning pulse simulators, or high power microwave modulators.
- Frequency Response, Intermodulation Distortion, and Noise-Figure measurements
- Phase-Locked Loop (PLL) pull-in and Hold Range characterization
- Radar Base-band Signals Emulation
Semiconductor Tests
The emulation of complex signals generated with added noise or distortions has grown to become a typical methodology for conducting component compliance tests for semiconductors. The fast edges and pulse generation in the Model 670C can be used to provide characterization in fast power devices.
- Clock and Sensor Signals Generation
- MOSFET gate drive Amplitude Signal Emulation
- Power up sequences of ICs using the Low Impedance feature (5 Ω output impedance)
