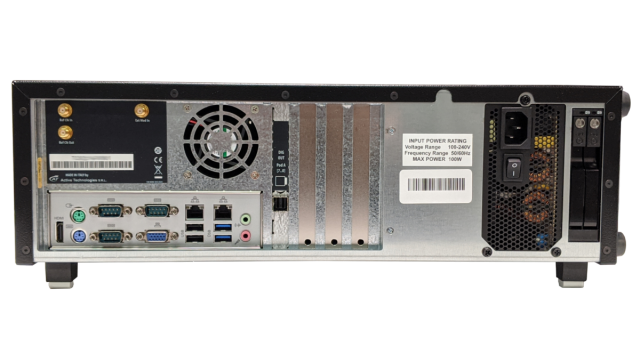

Model 675 | 300 MHz 1.2GSa/s High Performance Arbitrary Waveform Generator
Berkeley Nucleonics has been developing and engineering dependable test instruments for over 60 years, and the Model 675 reflects that hands-on experience. The 300 MHz arbitrary waveform generator combines clean signal output, high drive capability, and straightforward controls making it a practical choice for engineers who need serious performance without added complexity.
Standout Features of This Arbitrary Waveform Generator
- Superior Signal Fidelity: Premium integrity across the full bandwidth, delivering accurate, low-distortion waveforms for reliable measurements.
- High-Voltage Output: Adjustable up to 24 V in amplified mode—strong enough to drive demanding loads directly, often eliminating the need for external amplification.
- Intuitive Touch-Screen Interface: Clear, responsive display built tough for daily use, keeping operation simple even during long test sessions.
- Innovative & Upgradeable Design: Forward-thinking architecture that supports field upgrades throughout the instrument’s life, so it grows with your requirements.
- Compact & Efficient: Fits easily on the bench or in a rack, saving space while providing full 300 MHz capability at 1.2 GSa/s.
This high-performance arbitrary waveform generator handles applications from high-speed digital design and mixed-signal testing to pulse generation in R&D and production environments. Engineers appreciate the combination of high voltage swing, clean edges, and easy usability when working on advanced electronics, sensor emulation, or system validation.
Features
- Number of Channels: 2, 4, or 8 Analog
- Resolution: 1.2 GS/s
14 BitVertical *** NEW!!! 16-Bit - Accuracy: ±(1% of setting [Vpp] + 5 mV)
- Jitter: <20 ps
- Voltage: Up to 24 Vpp Output
- Memory: 1024 Mpts of Waveform per channel
Applications
- Automotive
- Research Applications
- Neuroscience
- Aerospace and Defense
- IoT and Industry 4.0
- Semiconductors Test
Model 675 DEVICE CONFIGURATOR
| Number of Channels: | Two-Channel Four-Channel Eight-Channel |
 |
| Memory Option: | 2 Million Points Memory [standard] 64 Million Points Memory [option -64M] 128 Million Points Memory [option -128M] 1 Billion Points Memory [option -1G] |
|
| Output Options and Accessories: |
High Voltage Output (12 Vpp into 50 Ω) [option -HV2 ] |
|
|
Model 675-2C-2M
300 MHz, 2 Million Points Memory, 1.2 GSa/s AFG
|
||
| Mode of Operation | Arbitrary Function Generator (AFG) Arbitrary Waveform Generator (AWG) TrueARB |
| Number of Outputs | 2, 4 or 8 Channels |
| Frequency Range | 1 µHz to 300 MHz sine wave (AFG Mode) |
| Waveforms | Sine, Square, Ramp, Pulse, Gaussian, Lorentz, Exp Rise, Exp Decay, Haversine, Sinc, Noise, Arbitrary, DC, Double Pulse |
| Run Mode | Continuous, Modulation, Sweep, and Burst |
| Amplitude | 0 to 6Vpp [optional 12Vpp] |
| Offset | -6V to +6V |
| Resolution | 100 µV |
| Initial Delay | 0 to 14 seconds |
| Phase | 0 to 360° |
| Polarity | Positive and Negative |
| Output Impedance | 50 Ω or 5 Ω |
| Sample Rate *** NEW!!! | 1.2 GS/s Fixed Clock 1.2 GS/s Variable Clock, |
| Minimum Pulse Width | 2.5 ns |
| Marker Outputs | 1 |
| Modulating Frequency | 500 µHz – 48 MHz Internal 8MHz Max External |
| Rise and Fall Time (20% to 80%) | < 700 ps @ 1 Vpp < 900 ps @ 5 Vpp |
| Digital Channel (optional) | 8 Bits (TrueARB Mode) |
| Waveform Memory | Up to 128 Million Points (TrueARB Mode) |
| Bandwidth | 318 MHz (TrueARB Mode) |
| Waveform Memory | Up to 128 Million Points (TrueARB Mode) |
| Mechanical (W x H x D) Weight |
17.7 x 6.3 x 13.4 inch [450 x 160 x 340 mm] 4.4 lbs [9.7 kg] |
| Power Source | 100 to 240 VAC / 45-66 Hz 120 Watts (max) |
| Emission and Immunity | CISPR 11, Class A, EN61000-3-2:2006, EN 61000-3-3:1995 EN 61326-1:2006, IEC 61000-4-2:2001, IEC 61000-4-3:2002, IEC 61000-4-4:2004, IEC 61000-4-5:2001, IEC 61000-4-6:2003, IEC 61000-4-11:2004 |
| Operating Environment | Temperature: +32 ºF to +122 ºF [0 ºC to +50 ºC] Humidity: 8% to 90% RH Altitude: 10,000 ft [3048 m] |
| Shipping Dimensions | 24x19x13″ |
| Shipping Weight | 27 lbs |
Serial Data Pattern Generator
Automotive
Today’s cars include many highly sophisticated Electronic Control Unit (ECU) with sensitive electronic components. The Model 675 combines 1.2 GS/s with a 14-bit 16-bit vertical resolution, making it an ideal tool for successfully addressing the new testing challenges in the automotive industry.
- CAN bus, CAN-FD, LIN, Flexray, SAE J2716 SENT Protocol Emulation
- EMI debugging, troubleshooting, and testing
- Electrical standards emulation up to 24V
- Power MOSFET circuitry in automotive electronics optimization
IoT and Industry 4.0
University and Research Institute
Research centers and Universities are key users of the Model 675 Arbitrary Waveform series. Complex waveform and/or sophisticated pulse emulation based on variable edges or multilevel can be perfectly created. The combination of fast edge generation, excellent dynamic range, and an easy-to-use user interface combine perfectly for scientists and engineers working on large experiments such as accelerators, tokamak, or synchrotrons to emulate signals without creating specifics test boards.
- Emulation of Detectors
- Emulation of Noise adding Signal Sources
- Generation or Playback of Real-world Signals
- Emulation of long PRBS (PseudoRandom Binary Sequence)
- Modulating and Driving Laser Diodes
Aerospace and Defense
Electronic Warfare signals driven by Radar or Sonar systems match perfectly with these generators. Large BW Riders can be used on digital modulation systems for radio applications or other I/Q signal modulation. Pulses may be easily generated for applications such as Pulse Electron Beams, X-ray sources, Flash X-ray Radiography, Lighting Pulse simulators, and High Power Microwave modulators.
- Frequency Response, Intermodulation Distortion, and Noise-Figure measurements
- Phase-Locked Loop (PLL) pull-in and Hold Range characterization
- Radar Base-band Signals Emulation
Semiconductor Tests
Emulation of complex signals generated with the inclusion of noise or distortions is an excellent way to provide the Compliance Components Test to help semiconductor engineers. The fast edges and pulse generation can be used to provide characterization in fast power devices.
- Clock and Sensor Signals Generation
- MOSFET gate drive Amplitude Signal Emulation
- Power up sequences of IC using the Low Impedance feature (5 Ω output impedance)
BNC High Performance ARB Press Release
Model 675 AFG Mode User Manual
Model 675 TrueARB Mode User Manual
App Note Serial Pattern Generator
Model 675 Simple AFG Programming Manual
Model 675 TrueArb Programming Manual
Performance ARB Comparison Table
Model 675 App Note for MEMS
Model 675 Datasheet
