Phase Noise Testers / Signal Source Analyzers

Phase Noise Testers / Signal Source Analyzers

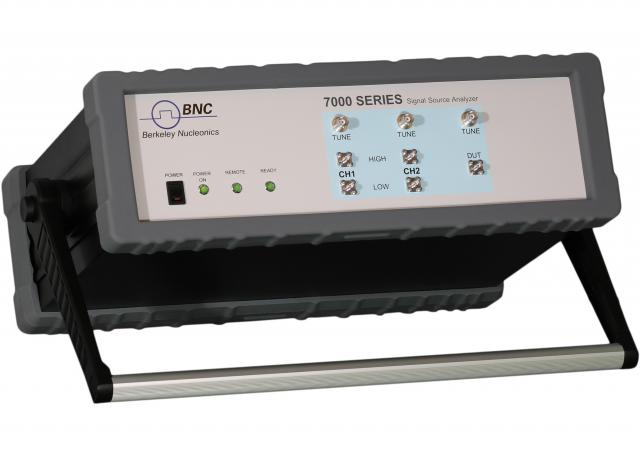

  • Model 7330 —

    5MHz to 33+ GHz Signal Source Analyzer

    The 7330 is an integrated solution that offers an indispensable set of measurement functions for evaluating signal sources ranging from VHF to microwave frequencies such as crystal oscillators, PLL synthesizers, clocks, phase-locked or free-running VCO's, DROs ,SAW, or Yig oscillators, and others. The flexible instrument comprises a two channel cross... Read more

    • Absolute and residual phase noise measurements
    • Amplitude noise measurements
    • PLUSED absolute and residual phase noise measurements
  • Model 7300

    Model 7300 —

    2 MHz to 26GHz+ Signal Source Analyzer

    The Berkeley Nucleonics Model 7300 Signal Source Analyzer provides users with a compact solution for high performance signal characterization and analysis. Users can make fast and accurate measurements of single sideband residual and additive... Read more

    • All-in-one compact measurement system
    • Measurements down to -185 dBc/Hz
    • Quick "One-click“ measurement
  • Model 7070

    Model 7070 —

    2 MHz to 7.0 GHz Signal Source Analyzer

    Berkeley Nucleonics' Model 7070 makes reliable phase-noise measurements up to 7 GHz and offers a wide bandwidth FFT analyzer. Additionally, the instrument has built-in transient measurement and spectrum analysis capabilities

    The instrument operates with either internal or external reference sources and offers measurements from 0.01 Hz up to 50 MHz frequency offset.

    Automated... Read more

    • All-in-one compact measurement system
    • Measurements down to -185 dBc/Hz
    • Offset range from 0.01 Hz to 50 MHz
