Model BH-1

Model BH-1 | NIM Tail Pulse Generator (Obsolete)

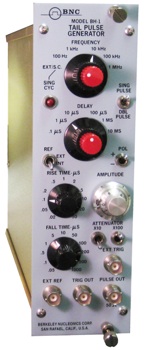

The Model BH-1 is obsolete , please inquire about our Model 670C as a direct replacement The Model BH-1 is a tail pulse generator which simulates the broad range of pulses encountered in the nuclear field. Typical applications of the Model BH-1 include: determining the proper timing of linear gates and coincidence units, linearity measurements of amplifiers, threshold setting of discriminators and single channel analyzers, and measuring resolution flow noise amplifiers.
Features
Specifications
Tech Resources
Downloable Resources
Price List

Overview

Features
  • Repetition Rate: 10 Hz – 1 MHz
  • Delay: -50 ns to 10 ms
  • Rise Time: 20 ns – 50 µs (8 positions)
  • Fall Time: 50 ns – 1000 µs (11 positions)
  • Pulse Amplitude: to 9.99 volts into 50 Ω
  • Amplitude Integral Linearity: ±0.1%
  • Amplitude Jitter: < 0.002% RMS

Specifications

Frequency

10 Hz to 1 MHz, continuously adjustable.

External Trigger

Requires 1 volt, positive pulse.

Single Cycle

One pulse occurs each time the push button is pressed.

Single/Double Pulse

This toggle provides for a pulse pair whose separation is varied by the delay controls.
Minimum separation is 50 ns.

Rise Time of Output (10-90%)

20 ns to 50 us (in 11 steps), exponential shape and independent of decay time.

Decay Time Constant of Output(100-37%)

50 ns to 1000 us (in 11 steps), exponential shape and independent of risetime for decay/rise time >10.

Trigger Out

Positive 3 volt pulse, 10 ns rise time, 0.2 us witdh, 50 ohms output impedance.

Delay

-50 ns advance to 10 ms delay (between Trigger Out and leading edge of output pulse).

Output Amplitude

Zero to 9.99 volts maximum. Adjustable by ten-turn potentiometer.

Attenuator

X10 and X100 providing up to 1000: 1.

Integral Linearity of Output

±0.1%.

Duty Factor Effect

Amplitude shift less than 0.1% below 30% duty factor. Duty factor in percent for tail pulses is defined as: (8 decay time constants/pulse spacing) X100.

Output Polarity

Positive or negative.

Output Impedance

50 ohms.

External Reference Input

±15 volts max.

Jitter of Frequency and Delay

Less than 0.1%.

Temperature Coefficient of Output

Less than 0.03%/°C.

Amplitude Jitter (Resolution)

Less than 0.01% peak, 0.002% rms of pulse amplitude.

Power Required

+24 V at 50 mA, -24 V at 50 mA, +12 V at 175 mA, -12 V at 80 mA.

Mechanical Dimensions

Double-witdh AEC module, 2.70 inches wide by 8.70 inches high. Conformsto AEC Report TID-20893 (Rev. 2).

Weight

3.5 lbs. net, shipping 7 Ibs.

Shipping Dimensions

18x12x9″

Shipping Weight

5 lbs
