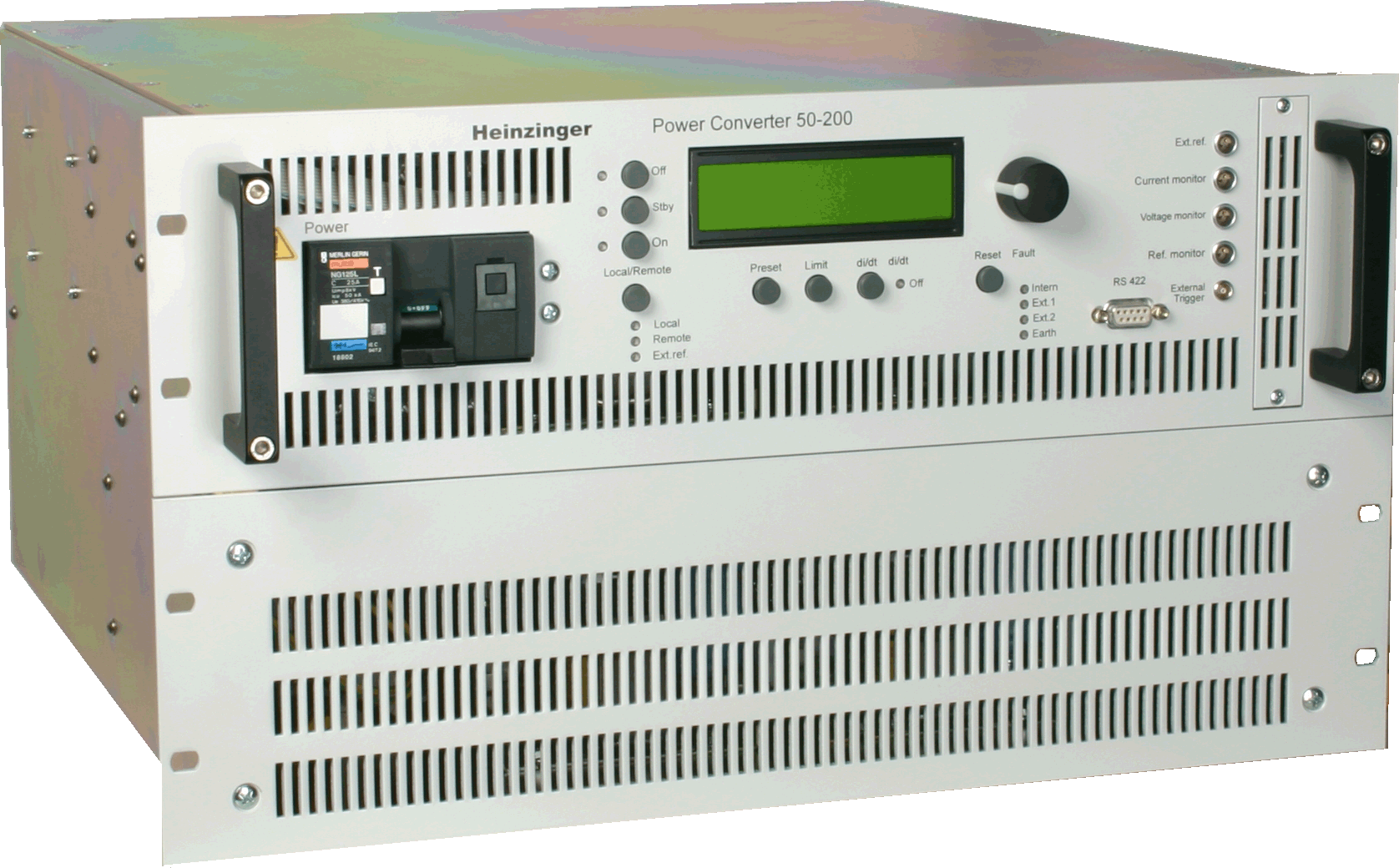

PCU Series | High Current Precision Magnet Power Up to 340A Current Output
The PCU Series consists of switch-mode power supplies that are optimized for the use of magnets by providing high-precision DC voltage with excellent current stability and extremely low ripple. They feature modular design and are available in typical voltage categories.
Each power supply has various currents available between 100A and 340A. The power supplies can be used in master/slave mode in parallel within applications that require more power.
To work with extended and rigorous applications, the PCU series offers the optimal ratio between power density and maximum precision. For all other magnet applications, the PCU units prove to be reliable power supplies that operate with quality, precision, and accuracy.
The performance classes extend as high as 15 kW (higher on request) for each unit of the PCU series. It’s simple to customize the units for a range of load conditions and requirements, given the PCU series manual operating and programming features. Remote control applications are made possible with the analog and digital interface that allows the user to read and write values to the power supply.
Overview
Features
- Voltage: 50 V
- Current: 100 A – 340 A
- Power: 5/10/15 kW
- Maximum current accuracy and stability of 5ppm
- Programmable currentramp function
- Analog voltage control and RS 422 interfaces
- Short circuit and arc detection
- mputer interfaces
Applications
- Laser diodes & arrays
- EV motor testing
- Semiconductor tests / manufacturing
- HV tests
- Quality tests
- Mass spectrometer detectors
- Accelerators (kickers, detectors)
Specifications
| Model (PCU) | 50-100 | 50-200 | 50-300 | 30-340 |
|---|---|---|---|---|
| Nominal output current (A) | 100 | 200 | 300 | 340 |
| Nominal output power (V) | 50 | 50 | 50 | 30 |
| Nominal output power (W) | 5000 | 10,000 | 15,000 | 10,000 |
| Line input voltage (V) +/-10 % | 400/3p; 47...63 Hz (other on request) | |||
| Power factor (%) | ≥90 | |||
| Regulation mode | CC or CV mode, selectable | |||
| Interface analog | 0...10 V analog interface for current & voltage measuring and setting | |||
| Interface digital | RS422 digital interface for current & voltage measuring and setting, output ON/OFF with status; indication and rest alarms; polarity indication | |||
| Ramp function | Programmable di/dt ramp function | |||
| Rise time (10 - 90 %) full load | Depending on load (R, L), typically 30ms | |||
| Residual voltage ripple p/p up to 10 kHz | 200...300 mV | |||
| Current deviation for +/- 10 % of load variation | ≤5 ppm | |||
| Current deviation in temperature (ppm/°C) | ≤5 ppm | |||
| Absolute current accuracy deviation | 2 mA | 4 mA | 6 mA | 7 mA |
| Cooling | Air cooling | |||
