NPX3-BNC | Shielded parabolic antenna for point-to-point link - 120 cm
The NPX3-BNC Shielded Series by NetPoint model for noise suppression, dual polarized, 4.9-6.4 Ghz, up to 62.13 miles (100km), 4ft shielded high performance antenna, for high interference links point to point links, close the secondary lobes and stop listening to other antennas other antennas close to your towers, Carrier Class equipment.
Overview
Applications
- Various Point to Point Communication
- Satellite Communication
- Spacecraft Communication
- Wireless WAN/LAN Links
- Radar Communication
Features
- Gain of up to 37 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
- One antenna that covers 5 and 6 Ghz
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type N Female
- Pigtails of N to RPSMA included in the box
Specifications
Frequency
4.9 – 6.4 GHz
Gain (dBi)
35: 4.9 GHz
36: 5.4 GHz
37: 5.7 GHz
VSWR HPOL
<2.0
Polarization
Dual Slant

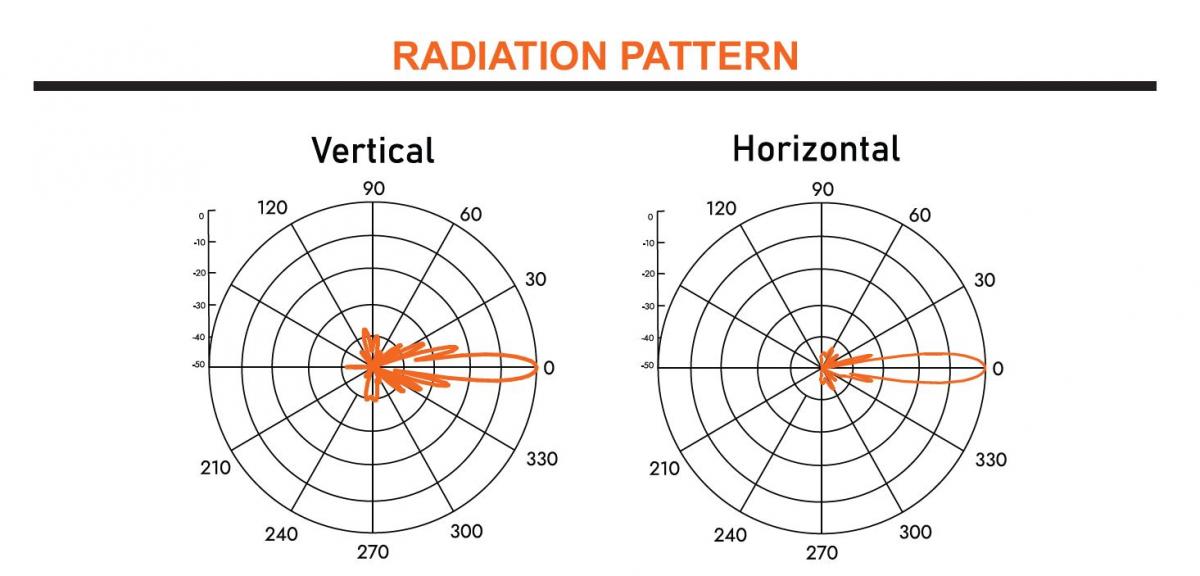

Beamwidth
VPOL: 3.2°
HPOL: 3.0°
Wind max survival speed (MPH)
124.27 MPH with Radome
Azimuth adjustment
+/- 60°
Elevation adjustment (°)
+/- 15°
