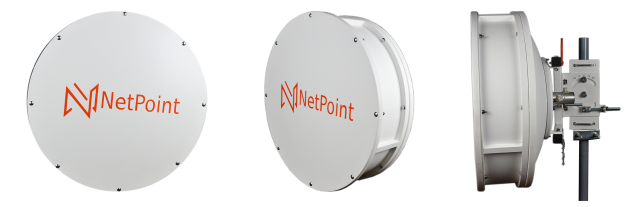

NPX1-BNC | Shielded Parabolic Antenna Point-to-Point link - 60 cm - 6.4 GHz
The NPX1-BNC Shielded Series by NetPoint model for noise suppression, dual polarized, 4.9-6.4 Ghz, up to 18.64 miles (30km), 2ft shielded high performance antenna, for high interference links point to point links, close the secondary lobes and stop listening to other antennas other antennas close to your towers, Carrier Class equipment.
Overview
Applications
- Various Point to Point Communication
- Satellite Communication
- Spacecraft Communication
- Wireless WAN/LAN Links
- Radar Communication
Features
- Gain of up to 30 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
- One antenna that covers 5 and 6 Ghz
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type N Female
- Pigtails of N to RPSMA included in the box
Specifications
Frequency
4.9 – 6.4 GHz
Gain (dBi)
28: 4.9 GHz
29: 5.4 GHz
30: 5.7 GHz
VSWR HPOL
<2.0
Polarization
Dual Slant

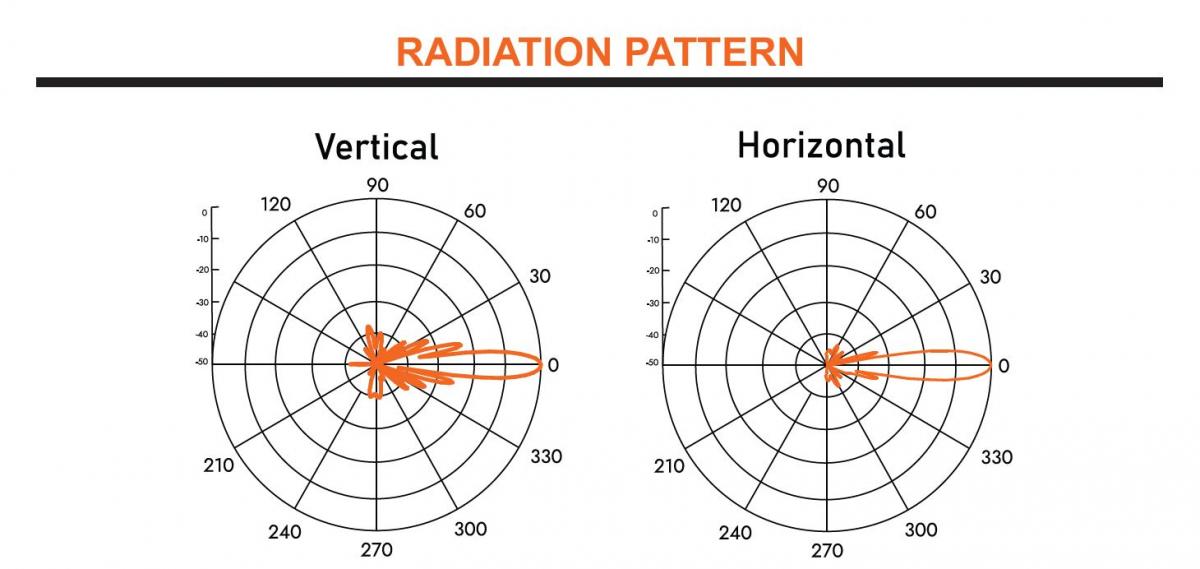

Beamwidth
VPOL: 5.5°
HPOL: 5.0°
Wind max survival speed (MPH)
124.27 MPH with Radome
Azimuth adjustment
+/- 60°
Elevation adjustment (°)
+/- 15°
