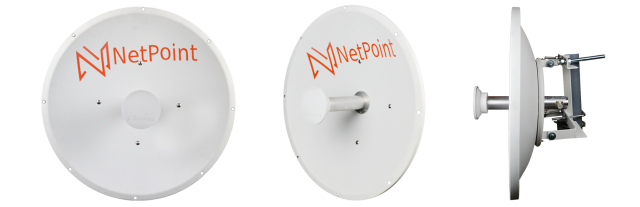

NP1-GEN2-BNC | Parabolic Antenna Point-to-Point Link 6.4 Ghz
The NP1-GEN2-BNC Standard Series by NetPoint offers a cost effective, dual polarized, 4.9-6.4 Ghz, up to 18.64 miles (30km), 2ft parabolic antenna engineered to deliver reliable radio links with a stable 30 dBi gain from 4.9 to 6.4 Ghz.
Overview
Applications
- Various Point to Point Communication
- Satellite Communication
- Spacecraft Communication
- Wireless WAN/LAN Links
- Radar Communication
Features
- Gain of up to 30 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
- One antenna that covers 5 and 6 Ghz
- Reduced interference with 38 dB minimum front to back
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type N Female
- Pigtails of N to RPSMA included in the box
Specifications
Frequency
4.9 – 6.4 GHz
Gain (dBi)
28: 4.9GHz
30: 5.4GHz
29: 5.7GHz
VSWR HPOL
<1.5
Polarization
Dual Slant 45° or 90°

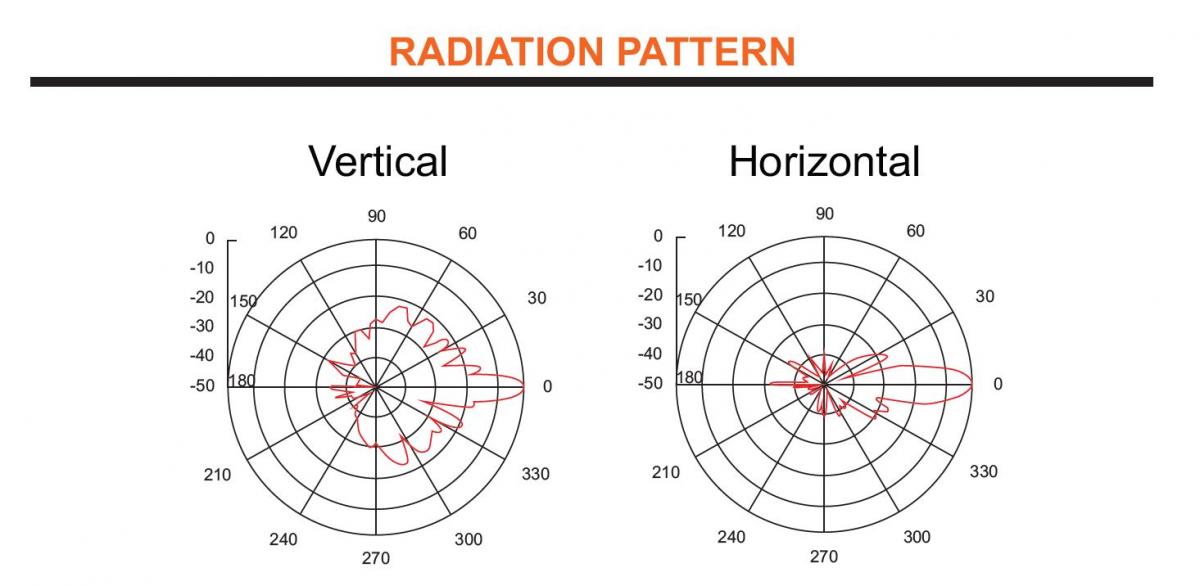

Beamwidth
VPOL: 6.0°
HPOL: 6.2°
Wind max survival speed (MPH)
124.2 MPH with Radome
Azimuth adjustment
+/- 60°
Elevation adjustment (°)
+/- 15°
