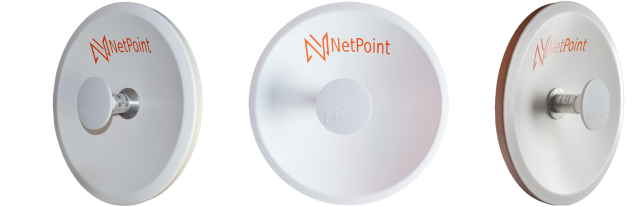

NP-PRO-S32-BNCTwist-On 3ft Parabolic Antenna
Features
Specifications
Tech Resources

Downloadable Resources

Quote
Contact Us

The Twist-on antenna by NetPoint offers a cost effective, dual polarized, 4.9-6.4 Ghz, up to 31 miles (50km), 3ft parabolic antenna engineered to deliver reliable radio links with a stable 32 dBi gain from 4.9 to 6.4 GHz.

Overview

Overview

Features

Applications
  • Gain of up to 32 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
  • One antenna that covers 5 and 6 Ghz
  • Simplifies installation on site and guarantees “factory-tested” quality
  • Connector type Twist-on
  • Various Point to Point Communication
  • Satellite Communication
  • Spacecraft Communication
  • Wireless WAN/LAN Links
  • Radar Communication
Specifications
Frequency

4.9 - 6.4 GHz
Gain (dBi)

30: 4.9 GHz

31: 5.5 GHz

32: 6.4 GHz
VSWR HPOL <2.0
Polarization Dual Slant 45°
Beamwidth

VPOL: 4.0°

HPOL: 4.2°
Wind max survival speed (MPH)

74 .56 MPH with Radome
Azimuth adjustment +/- 60 degrees
Elevation adjustment (°) +/- 20°
