NP-PRO-S-BNCTwist-On 1.3ft Parabolic Antenna 6.4 GHz

The Twist-on antenna by NetPoint offers a cost effective, dual polarized, 4.9-6.4 Ghz, up to 9.3 miles (15km), 1.3ft parabolic antenna engineered to deliver reliable radio links with a stable 27 dBi gain from 4.9 to 6.4 GHz.

Overview

Overview

Features

Applications

  • Gain of up to 27 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
  • One antenna that covers 5 and 6 Ghz
  • Simplifies installation on site and guarantees "factory-tested" quality
  • Connector type Twist-on
  • Various Point to Point Communication
  • Satellite Communication
  • Spacecraft Communication
  • Wireless WAN/LAN Links
  • Radar Communication
Specifications
Frequency

4.9 - 6.4 GHz

Gain (dBi)

25: 4.9 GHz

26: 5.4 GHz

27: 5.7 GHz

VSWR HPOL <2.0
Polarization Dual Slant 45°

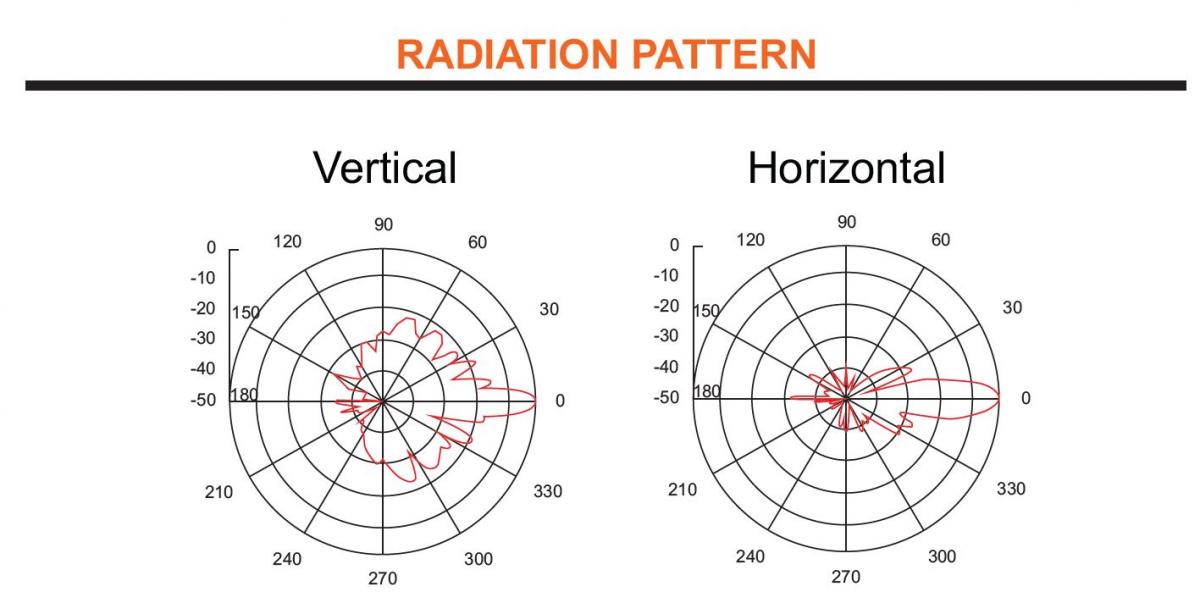

Beamwidth

VPOL: 8.2°

HPOL: 8.0°

Wind max survival speed (MPH)

124.27 MPH with Radome

Azimuth adjustment +/- 60 degrees
Elevation adjustment (°) +/- 20°
