NP-PRO-C-BNC | Twist-On 1.3ft Parabolic Antenna 6.4 GHz
The Twist-on antenna by NetPoint offers a cost effective, dual polarized, 4.9-6.4 Ghz, up to 9.3 miles (15km), 1.3ft parabolic antenna engineered to deliver reliable radio links with a stable 27 dBi gain from 4.9 to 6.4 GHz.
Overview
Applications
- Various Point to Point Communication
- Satellite Communication
- Spacecraft Communication
- Wireless WAN/LAN Links
- Radar Communication
Features
- Gain of up to 27 dBi with low VSWR and high port isolation across the entire 4.9-6.4 GHz band
- One antenna that covers 5 and 6 Ghz
- Simplifies installation on site and guarantees “factory-tested” quality
- Connector type Twist-on
Specifications
Frequency
4.9 – 6.4 GHz
Gain (dBi)
25: 4.9 GHz
26: 5.4 GHz
27: 5.7 GHz
VSWR HPOL
<2.0
Polarization
Dual Slant 45°

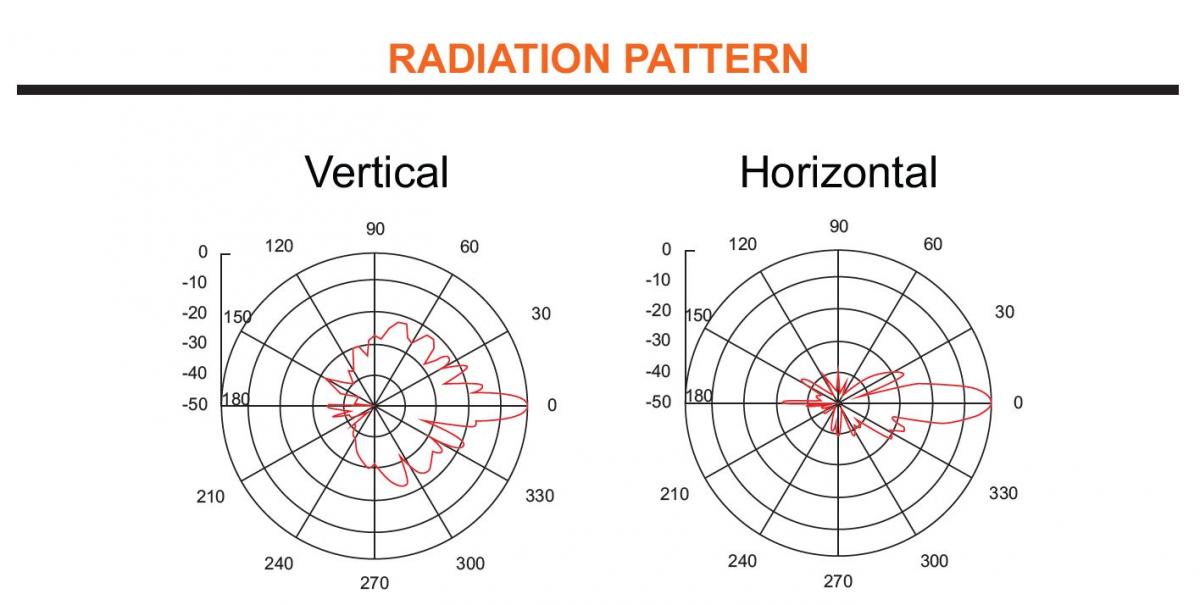

Beamwidth
VPOL: 8.2°
HPOL: 8.0°
Wind max survival speed (MPH)
124.27 MPH with Radome
Azimuth adjustment
+/- 60 degrees
Elevation adjustment (°)
+/- 20°
