Model P2025 Oscilloscope
Quote
Contact

Model P2025 | 200 MHz Digital Oscilloscopestarting at $795
Features
Specifications
Tech Resources
Media

Downloadable Resources

Price List
FAQ
Quote
Contact Us

The Model P2025 is a 2-channel, 200 MHz oscilloscope for general benchtop use. The small footprint and many useful modes create a versatile instrument at an excellent price point. The instrument offers 20 predefined measurement modes and a built-in, auto-ranging Digital Multimeter. Contact BNC for your demo today!

Overview

Overview

Applications

Features
  • Electronic Circuit Debugging
  • Education and Training
  • Circuit Testing
  • Design and Manufacture
  • Automobile Maintenance

  • Auto-Scale Function
  • 20 Group Automatic Measurement Options
  • USB Data Transmission
  • Rechargeable Li-ion Battery (6 hours) (optional)
  • Waveform Record and Replay
  • Multimeter Supports SCPI

Specifications
Display 8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)
Bandwidth 200 MHz
Channels 2 + 1 (external)
Sample rate 1 GS/s
Record length 40M
DC Gain Accuracy​ ±3%​
DC Accuracy​ Average ≥16：±(3% reading + 0.05 div) for △V​
Communication Interface​ USB Host, USB Device, USB Port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)​
Power Supply​ 100 V - 240 V AC, 50/60 Hz, CAT II​
Power Consumption​ ＜15 W​
Dimensions (H x W x D) 340 x 177 x 90 (mm​)
Weight 2.60 kg​

*Subject to change without notice.

Technical resources
PDF icon Model P2025 Datasheet
Frequently Asked Questions (FAQ)

Front Office | How do I order a product for fast delivery ?

Front Office | How do I order a product for fast delivery ?

To check price and delivery, to place a Purchase Order, or to expedite an existing order, please call 415-453-9955, email info@berkeleynucleonics.com or fill out a Get a Quote form. Typical response time is less than 2 hours.

Front Office | Where is the Berkeley Nucleonics headquarters ?

Front Office | Where is the Berkeley Nucleonics headquarters ?

Our main headquarters is in California. Our address is 2955 Kerner Blvd, San Rafael CA 94901. We have sales offices throught the United States and in many European and Asian countries. We also have a nationwide network of approved trainers to handle product training and installation. Contact the factory at 415-453-9955 or info@berkeleynucleonics.com for your closest resource.

Downloadable Resources

Downloadable resources such as datasheets, firmware, software, drivers and products manuals. Alternatively, you can browse resources directly by visiting our downloads page.

• Product Datasheets
• Product Firmware
• Product Software and Drivers
• Product Manuals

Media

Media
Video URL
Video title

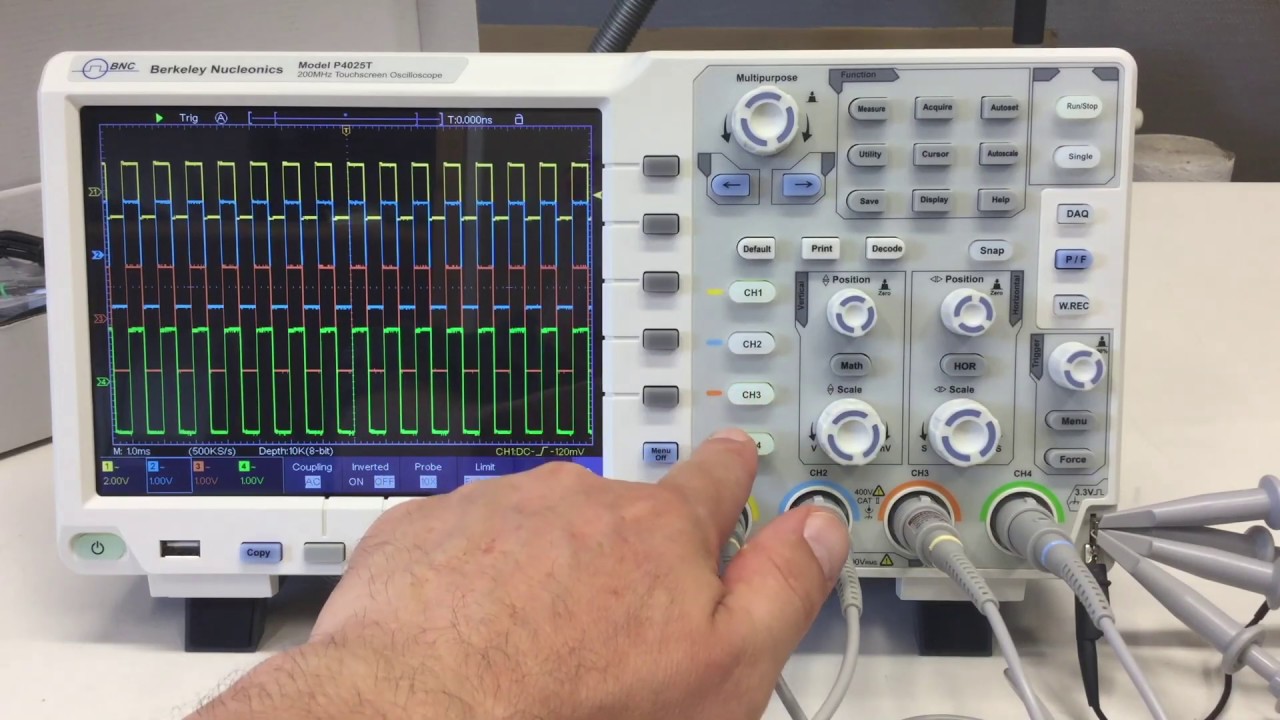

BNC's P4025T Unboxing and First Impressions
Video URL
Video title

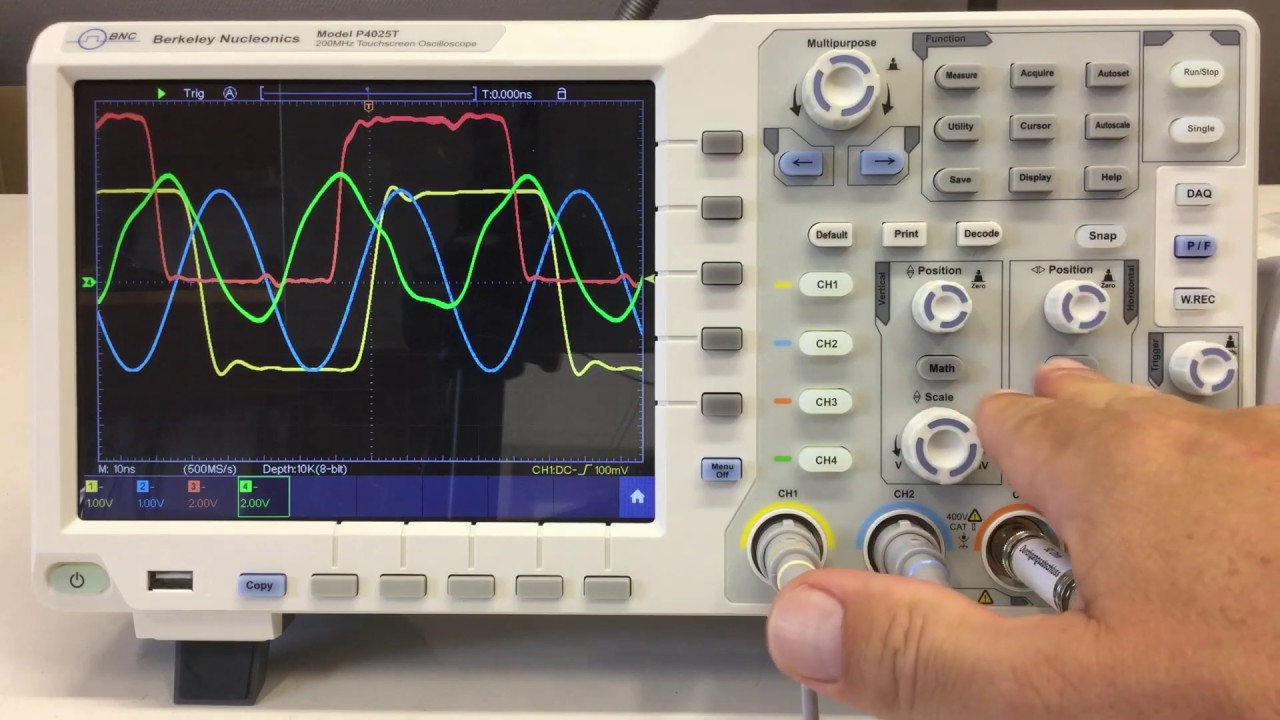

BNC P4025T 4-Channel 200MHz 14-Bit Oscilloscope: Review
