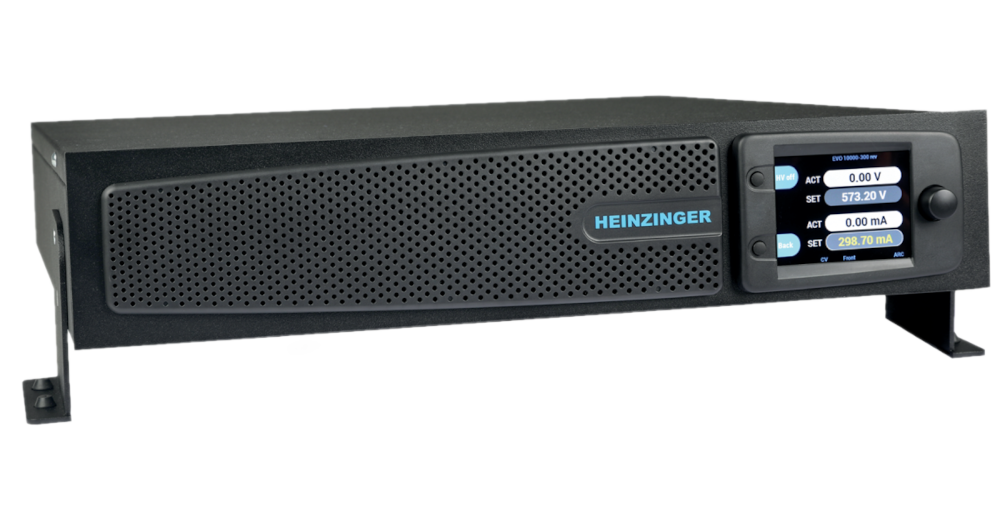

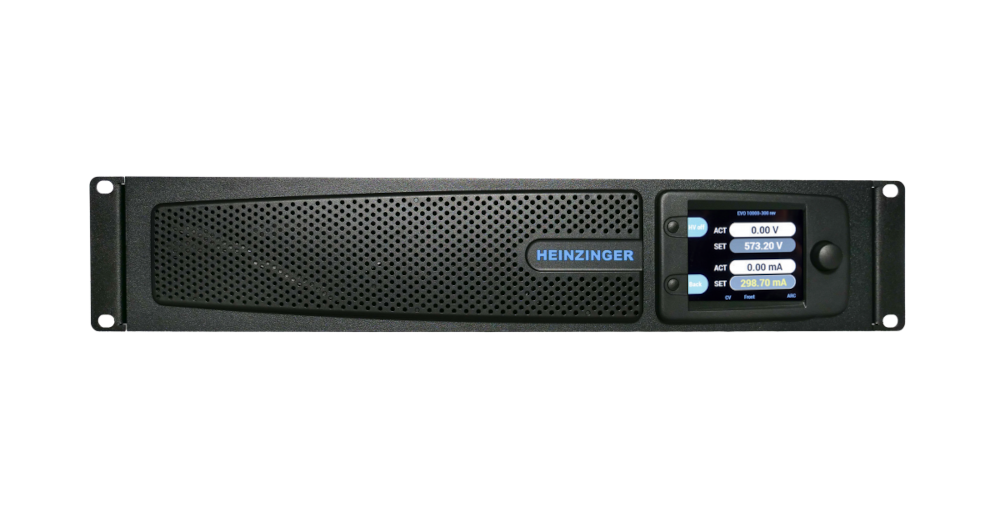

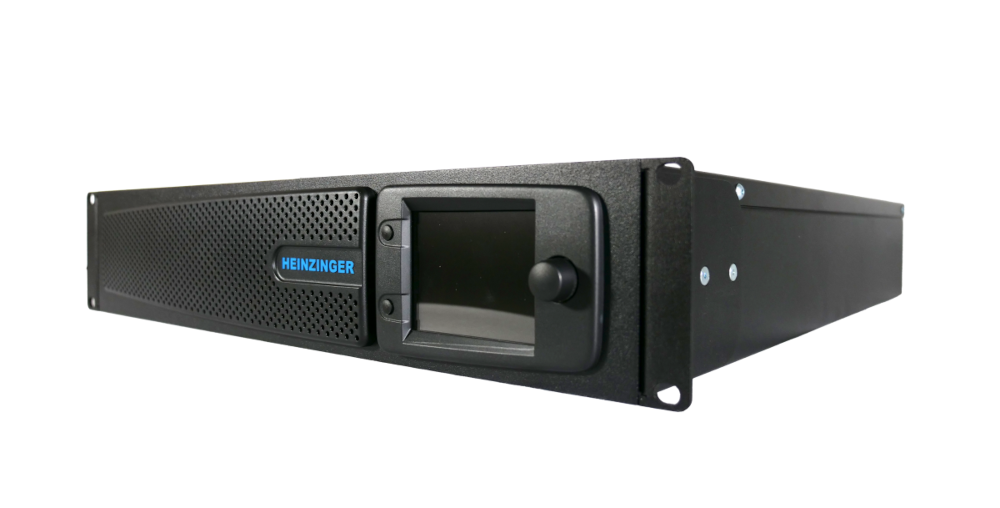

EVO Series | BNC High Voltage Power Supplies
The EVO Series delivers exceptional precision, rapid control, and user-friendly operation in a compact, high-power-density package—ideal for demanding high-voltage applications.
- Power ratings: 2 kW or 3 kW
- Voltage classes: 0–1.5 kV DC, 0–5 kV DC, 0–10 kV DC (up to 20 kV in select configs)
- Currents: from 0.2 A to 2 A (model-dependent)
- Compact form factor: only 2U rack height (benchtop or 19″ rack with adapter)
- Fully digital regulation via microcontroller + FPGA for fast signal processing and adaptable load response
- Electrically reversible polarity (positive or negative HV output)
- User-friendly operating system with intuitive controls
- High power density and quick, precise control without compromising speed or accuracy
Essential applications include, semiconductor production and verification, photovoltaic cell and component manufacturing, end-of-line calibration processes, and high-voltage research, testing, and development
Publications
Overview
Model
Power (W)
Max. Voltage (V)
Max. Current (A)
Pair With
* – Consult with our engineers about levels of operation
Applications
- LIDAR
- Micromachining
- Medical & Cosmetic Laser
- Time of Flight
- Q-Switches
- Beam Steering
- Pockels Cells
- Acoustic Transducers
- Microchannel Plates
- Photomultiplier Tubes and Image Intensifiers
Features
- Power: 3kW or 2kW
- Currents from 0.2 to 2 A
- Fully digital regulation
- Usable as 19″ or desktop chassis, with integrated adapter
- Compact (11.5 kg), 2U
- Widerange AC input, singlephase
- Ethernet and RS232 on board
- SCPI command set
- Predictive fan control
- Output polarity reversible, electrically
- Ramp control (Option)
- Arc detection (Option)
Specifications
Precision
Overall accuracy class of 0.01% (100ppm)
Typical Values (for v/c)
Setting accuracy: 16bit
Setting range: 0.01% – 100%
Reproducibility: 0.1% Unom
Line regulation (±10%): ±0.01% Unom
Ripple: 0.01% pp
Load Regulation (10% – 90%): 0.05% Unom
Response time on changes: 1ms to 0.1% Unom
Stability: 0.01% Unom per 8h
Temperature coefficient: 0.01% Unom/K

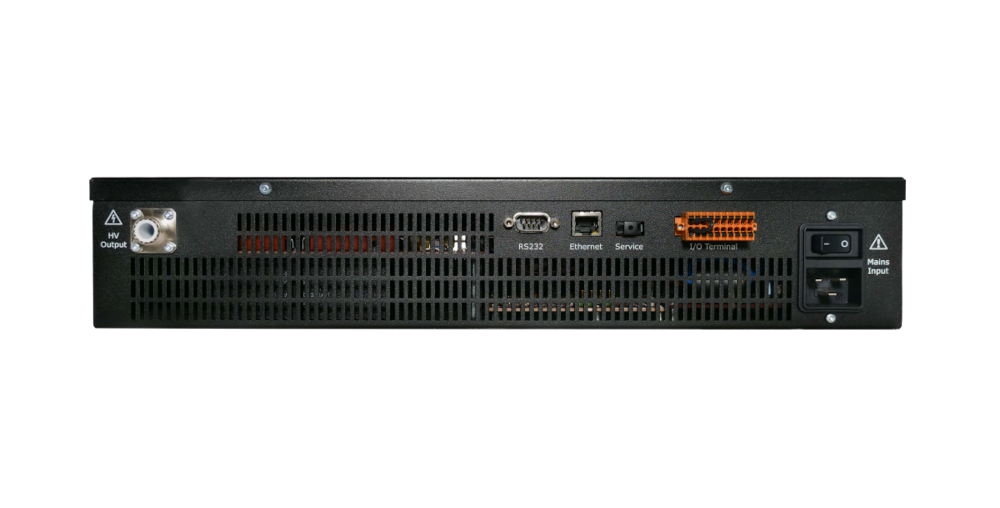

Interfaces (SCPI command set): RS232, Ethernet (USB service port)
I/O Terminal: Interlock, configurable I/Os
AC Input
230V ±10% (3kW version)
187V – 253V (2kW version) 47Hz – 63Hz
Active power factor correction
Mains socket on rear side (IEC 60320 Type C20)
DC Output
Positive, negative or reversible polarity
HV connector
Female Heinzinger HV connector on rear side
AC Cable/Connector Type
6-20P to C19 Cable
Enclosure
19″ and/or desktop
Height: 2U (89mm)
Depth: 500mm
Steel Chassis, RAL 9005
Weight
Approximately 11.5 kg

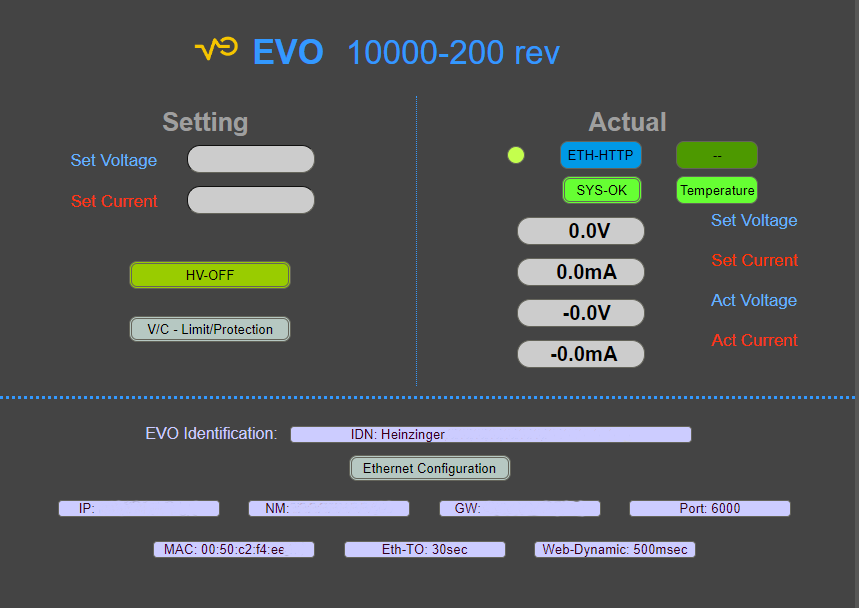

Graphical User Interface (WEB BASED)
