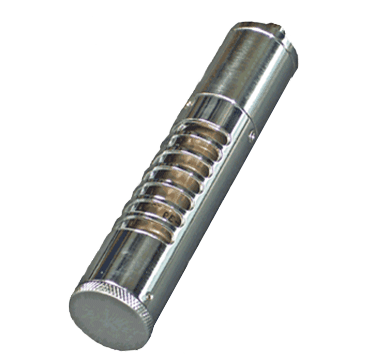

GP-1010 | Gamma/Beta Hot Dog Probe [Obsolete]
The original “Hot Dog” probe. This detector is an excellent application for specific gamma/beta detection. With a a rugged chrome plated brass housing and easy slide internal beta shield, the GP-1010 is the optimal detector for gamma and beta monitoring.
Overview
- Beta/Gama Detection
- Rugged Housing w/ easy slide internal beta shield
- Compatible with all WB Johnson Instruments (others on request)
Specifications
General
Intended for general gamma (dose) measurements
Compatibility
ALL WB Johnson Instruments (others on request)
Operating Voltage
900 vdc
Wall Thickness
40 mg/cm2
Range
200 mR/hr +_energy dependent
CPM -mr/hr(Cs-137)
1200
Energy Response
60keV – 2 MeV gamma
Sensitive Area
2.25″ x .5″
Finish
Aluminum housing
Dimensions
1.25″ dia x 7″ L
Environmental
-20° F[-28° C]-140° F[60° C] | 5-95% RH – IPX4
Weight
8oz
