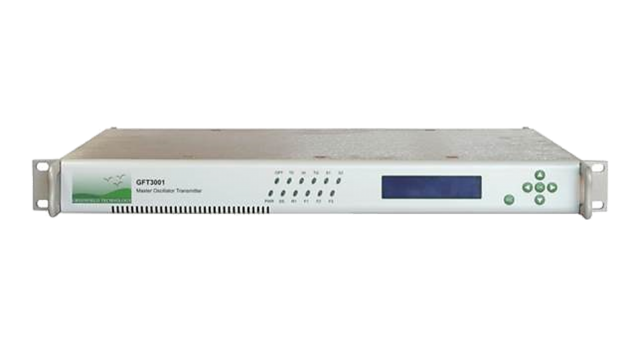

GFT3001 | Master Oscillator Transmitter [Obsolete]

You are here:

GFT3001 | Master Oscillator Transmitter [Obsolete]

The GFT3001 synchronizes local delay generators over an optical network by generating an optical data serial data stream, as well as through master triggers and a time base. The clock reference of the GFT3001 can be external or internal. In some applications, the GFT3001 can also generate a clock to synchronize other devices (Laser, Oscillator, etc.). The GFT3001 can respond to an external hardware single-shot trigger, or generate an internal single-shot trigger. To prevent erroneous outputs, the user can stop the single-shot with a hardware-level preset.

An additional security measure is in place if the external clock reference is lost, returning the GFT3001 to a preset frequency. All parameters may be locally controlled over front panel, and remotely controlled over an Ethernet (10 / 100 Mb/s) or Internet (internal web server) interface.

The main application of the GFT3001 is in facilitating picosecond timing systems, generating severalhundred trigger pulses to equipment across the different situations encountered in large Laser timing Systems.


In regards to limited quantity, please contact BNC about current stock and our recommended replacement model.

Overview

Features
  • Synchronize up to 256 Delay Generators with less than 15 ps jitter
  • Local front panel, Ethernet and Internet user interfaces
  • Optical fiber interconnection enables up to 1 km distance between equipment
  • 19″, 1U compact packaging
Applications
  • Picosecond Timing System
  • Laser Timing System
  • Synchronous Multi-channel
  • Synchrotron Timing System

Specifications

Internal Rate Generator
Timing System

Distance between equipment

>1 km (GFT3001 to local delay generator)

# of Local Delay Generators

Up to 256

Internal Time Base

Frequency

160 MHz

Accuracy / Stability

10-9 / 0.05 ppm

Trigger Events Source

Single-shot SS1, SS2 Source

From front panel, Ethernet or Trigger input

Repetitive Trigger Events

From 3 counters. Each is programmable 1 kHz to 1/60 Hz

Trigger Input

Trigger Active

Slope positive, Threshold =+1 V, Internal load 50 Ω

Inhibition Input

Inhibition Active

Active high, Threshold =+1 V, Internal load 50 Ω

Clock Input

Shape

Sinewave or Square

Threshold

0 V, Internal 50 Ω load

Level

-3 dBm min.

Frequency

10 MHz

Optical Data Stream Output

Repetition Rate

160 Mb/s (up to 200 Mb/s as an option)

Optical Power / Wavelength

4 dBm mean / 1550 nm

Rise and Fall Time

< 1 ns

Connector

SC with shutter

T0 Output

Source

Single or Repetitive trigger

Amplitude

2, 5, to 10 V under 50 Ω

Rise / Fall Time

< 2 ns, < 5 ns

RMS Jitter

15 ps to local delay generator (T0 output)

Width

100 ns to 10 µs

General Specifications

User Interface

Local PAV, Ethernet / Internet (Web page)

Size

Rack 19’’, 1U, 300 mm

Power

90 to 240 V / 1 A

Software Tools

DLL, VI LabVIEW

Options

Option 1

Clock Output: Sinewave, 3 dBm, 80 MHz, >-40 dBm Spectral Purity

Option 2

Specific Clock Input frequency (10 MHz to 100 MHz) ask when ordering

Option 3

Programmable Single-Shot sequence (repetitive, single burst, repetitive burst)

Option 4

More repetitive triggers (up to 3 with fixed frequency) ask when ordering
