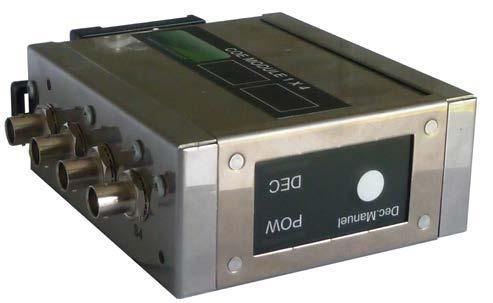

GFT204 | 1:4 Optical to Electrical Module
The GFT204 module converts one optical pulse to four (4) fast electrical pulse of 10 V under 50 Ω. This compact module combines with GFT101 (Electrical to optical converter) is ideal for transmitting pulses to remote location up to 1 Km and when the critical pulse has high common mode voltage with respect to the measurement equipment.
Overview
Features
1:4 Optical to Electrical converter channels
- Optical input:
- Wavelength: 1310 to 1550 nm
- Optical Threshold: 30 μW
- 4 Electrical output pulses:
- 10V under 50 Ω output pulse
- 10 μs width
Applications
- Laser research
- EMC simulators
- High voltage breakdowns
- High-Energy physics
- Picosecond timing
Specifications
Applications
Channel number
1
Jitter
< 100 ps RMS
Amplitude
10 V
Rise / Fall time
< 5 ns / < 10 ns
Wavelength
1310 to 1550 nm
Size
Rack Din, 110 x 105 x 48 mm
