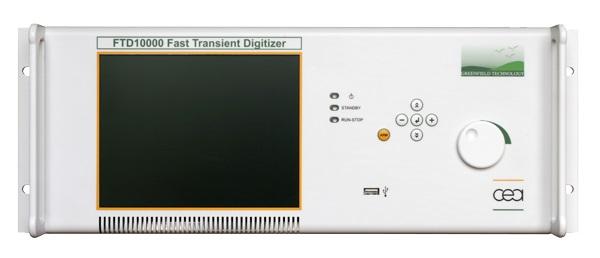

FTD10000 | 7 Ghz Transient Digitizer
Greenfield Technology’s FTD10000 Ultrafast 7 GHz Fast Transient Digitizer is the industry’s fastest digitizer specifically designed to record very fast single shot pulses down to 50ps with 13-bit amplitude resolution. The FTD10000 is the ideal instrument for recording impulse phenomena in laser research, high-energy physics, EMC/EMP simulators and high-voltage breakdowns, as well as testing high-speed circuits.
Additional features include an input for timing fiducials and a large front panel display for easy and precise viewing. As such, the FTD10000 is an excellent solution for both laboratory and automatic test applications.
Overview
Features
- 7 GHz bandwidth with slow roll off
- 50 ps rise time • Up to 1800 GS/s sampling rate
- 13-bit vertical resolution
- 2000 V maximum input voltage without overload
- Controlled via front panel and Ethernet
- 19″ Rack, 4U, 560 mm
- Fiducial input for time stamping
Applications
- Diagnostics for Laser research and HighEnergy physics
- Recording of fast single shot pulses – EMC/EMP simulators
- High-voltage breakdowns
- Test of high speed circuits
- Automatic Test Equipment (ATE)
Specifications
Signal Input
Sensitivity
5 V
Trigger
Source
external
Input Impedance
50 ohm
Signal Polarity
positive or negative
Signal Duration
> 0.5 ns
Level
0.5 to 5 V
Max. Input
500 v (1 µs)
Jitter
5 ps rms
Internal Delay
40 to 540 ns
Digitizing
Analysis Duration
1 to 2000 ns
Horizontal Resolution
10 bits
Vertical Resolution
13 bits
Non-volatile Memory
1 record & settings
Acquisition Modes
– Single shot
– Electrical zero
– Repetitive
