ERK-506 | Radiation Detection Emergency Kit
The ERK-506 Emergency Kit is designed for responders requiring a quick grab radiological response kit capable of measuring alpha, beta, and gamma radiation. It utilizes the Model DSM-506 Digital Survey meter that provides a user-friendly measurement system that easily switches between measuring dose rate and contamination and is equipped with a timed count scaler function for improved accuracy of low level measurements.

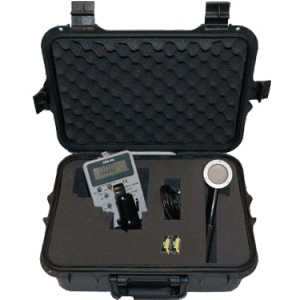

The DSM-506 employs an internally housed, energy compensated GM detector plus two interchangeable external detectors; the Model HP-265 for measuring alpha/beta/gamma/ contamination, and the highly gamma sensitive Model MRSP-1 scintillator for locating the source of higher radiation fields. A Cs-137 check source is supplied to perform a functional check on the probes. All components of the system are contained in a durable carrying case for easy storage and portability.
Specifications
Input Sensitivity
0.05V
Dose/CPM Switchable
External Dose / CPM Switch
Display-LCD
CPM, KCPM, CPS, uR/hr,mR/hr,R/hr,uSv/hr,mSv/hr,Sv/hr
LCD Refresh Rate
0.8 – 3.0 Sec adjustable
Display Backlight
Toggle switch, 30 Second auto off-Repeat as needed
Scaler Count Time Ranges
.10-2550 Seconds (10 second increments)
Probe 1 Ranges (HP-265)
999.9 Kcpm
Probe 1 Ranges (MRSP-1)
0-10 mR/hr
Internal Detector EC GM Detector
0-2,000 mR/hr – 0-999.9 Kcpm
Scaler Ranges
0-999.9 Kcpm
Diagnostics
Low Battery, Overrange – Audible and Visual Alarms
Alarms
5-95% of full scale for Dose & CPM
Over Range Alarm
Adjustable 10% above max range – dose calibration only
Electrical Linearity
< 5%
Response Time
Fast – 10-2550 Seconds (adjustable) | Slow 10-250 seconds (adjustable)
Drift
<5%
Environmental
-20 F[-28 C]-140 F[60 C] | 5-95% RH IPX4 Housing
#1 High Voltage
Adjustable 300-1500 VDC|Regulation +-1%
#2 High Voltage
Adjustable 300-1500 VDC|Regulation +-1%
Audio (click per event)
On–Off switch on front panel
Battery
6 “AA” Alkaline-400 hours nominal
Display
4 digit 0.75″ (19mm) tall w/LED backlight
Circuitry
Digital Microprocessor Controlled
Dimensions
5.25″ (14cm) H x 4″ (10cm) W x 7″ (18cm) L
Weight
2.5 lbs. (1.2 Kilos) w/Batteries
Construction
Heavy Duty Aluminum & Stainless Steel
