Drone-Based Detectors for Gamma Ray Detection & Identification

Drone-Based Detectors | Gamma Ray Detection & Identification

Medusa offers a range of user-friendly survey tools designed to simplify measurement of spatial variation in soil composition. At the core are passive gamma-ray spectrometers that detect natural radioactivity in the top soil layer—requiring minimal setup and training for fast, effective field use.

Passive detection of natural gamma radiation (K, U, Th, total counts)
Simple, intuitive operation — ideal for beginners and experienced users
Built for efficient mapping of soil properties, geology, agriculture, environmental monitoring, and mineral exploration

Sensor Overview:

Multiple sensor sizes available, each optimized for specific survey types and applications (handheld/portable to vehicle-mounted/large-area configurations)
Scalable solutions to match resolution needs, terrain, coverage area, and mobility requirements

Perfect for soil science, precision agriculture, geochemical mapping, contamination assessment, and radiometric surveying with reliable, low-effort data collection.

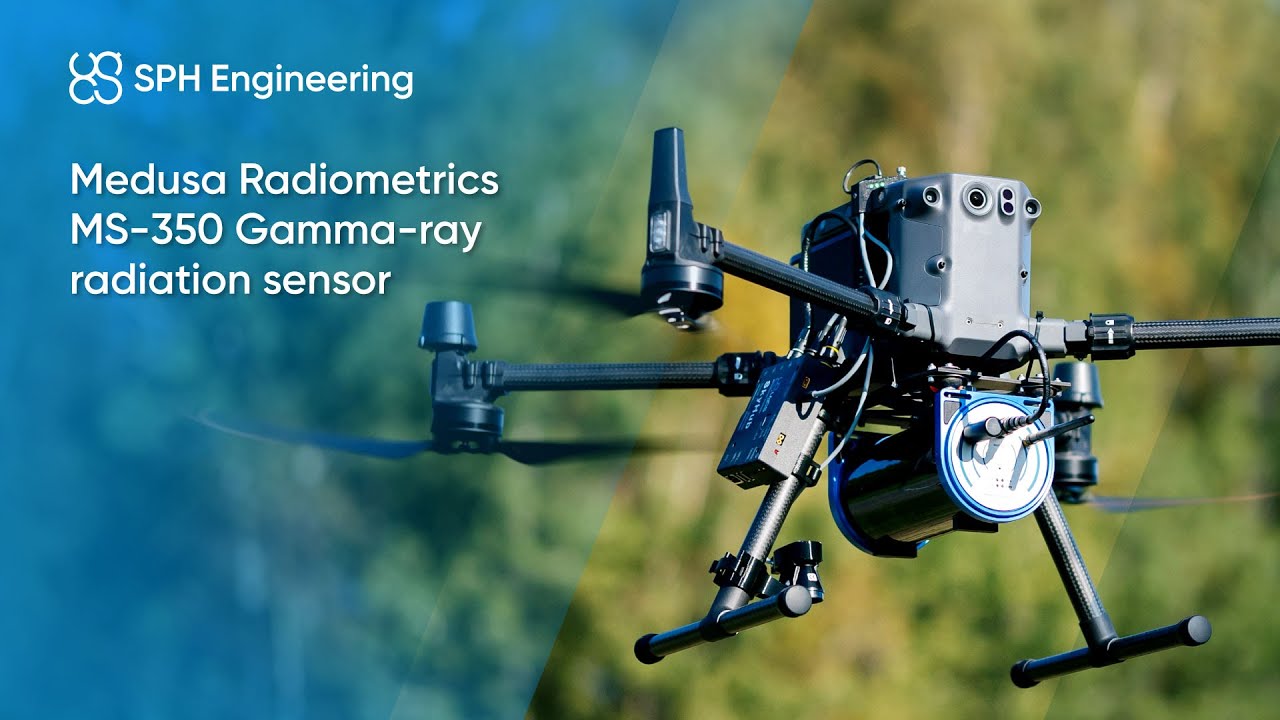

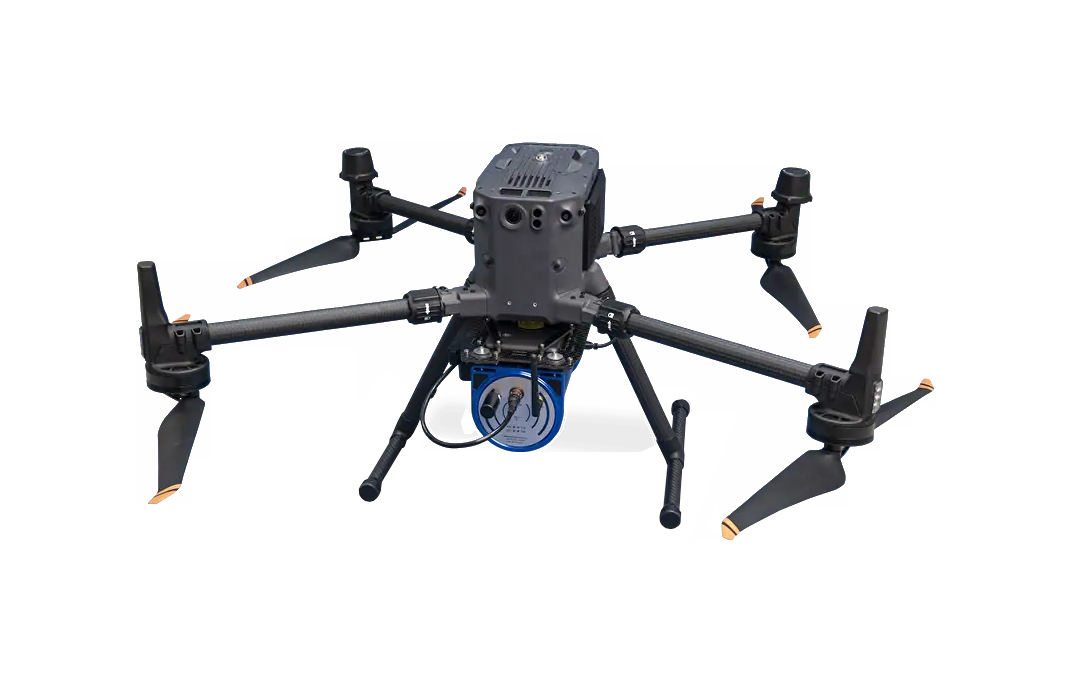

*Drone or UAV not included. For users prioritizing compact and efficient deployment, the MS-350 sensor is optimized for integration with the DJI M350 RTK drone platform. With a flight endurance of up to 30 minutes, this pairing enables comprehensive data collection over extensive areas, ensuring uninterrupted performance for critical survey missions.

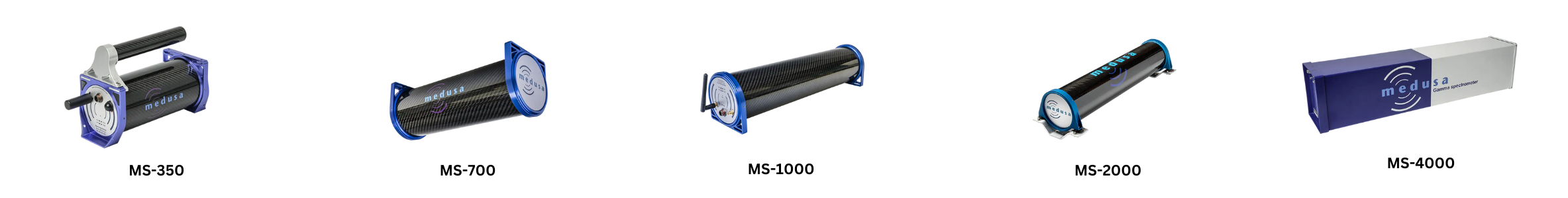

Gamma Ray Spectrometer		MS-350	MS-700	MS-1000	MS-2000	MS-4000

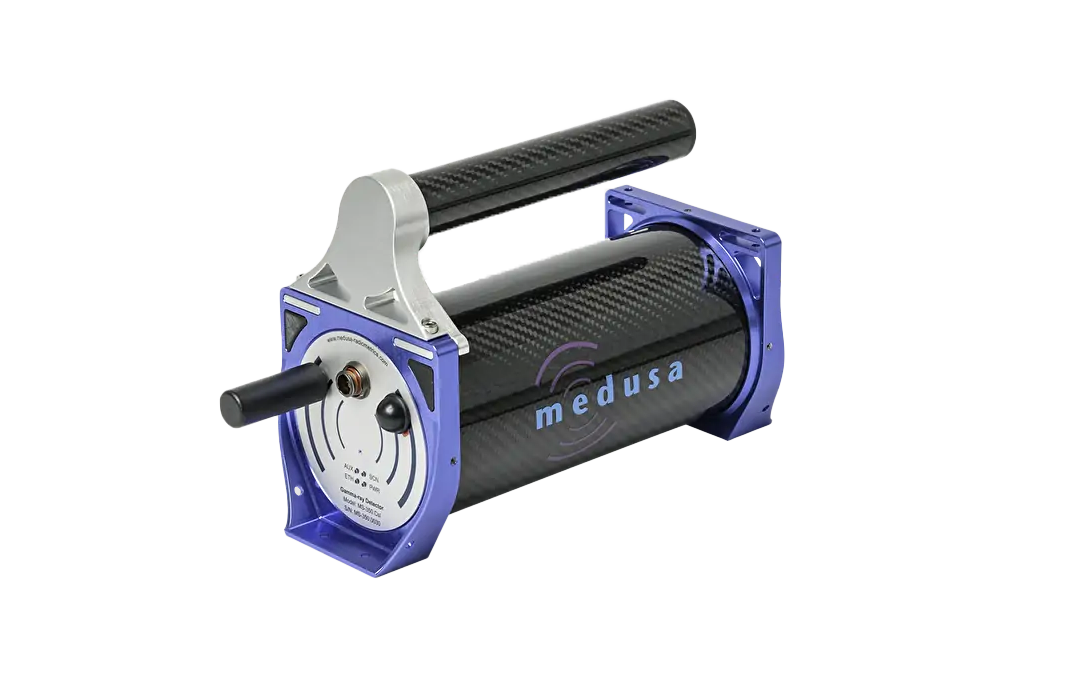

	Scintillation Size	3 x 3″ (350 ml) Csl	3 x 6″ (700 ml) CsI	3 x 9″ (1000 ml) CsI	3.5 x 12″ (2000 ml) CsI	4 x 4 x 16″ (4000 ml) CsI
	Mapping Speed	up to 15 km/h	up to 20 km/h	up to 30 km/h	up to 45 km/h	up to 90 km/h
	Recoding frequency	Up to 5hz	Up to 5hz	Up to 5hz	Up to 5hz	Up to 5hz
	Radionucleide Analysis	⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs	⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs	⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs	⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs	⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs
Electrical	Input voltage	5 – 35 V
	Power Consumption	3W (avg), 6W (max)
	Battery	Up to 8 hours with optional battery
GPS	Type	uBlox ZED-P9P
	Accuracy	1.5 m CEP
	RTK Accuracy	<1 cm
	Signals	GLONASS, BeiDou, Galileo
Mechanical	Dimension	100 (⌀) x 215(L) mm	100 (⌀) x 295 (L) mm	100 mm ⌀ x 375 mm	120 (⌀) x 605 (L) mm	174 (h) x 203 (w) 856 (l) mm
	Weight	2.7 kg	4.7 kg	6.7 kg	12 kg	29 kg
	Operating Temperature	-20 to + 65 °C
	IP Rating	IP 65
Connectivity	Wi-fi	2.4 and 5 Ghz
	Ethernet	100 Mbps
	Port	RS-232
Data	Format	JSON, NMEA, CSV
	Streaming	RS-232, ethernet and Wi-Fi
	Sensors	Spectrometer, GPS, PTH
	Internal Storage	16 GB

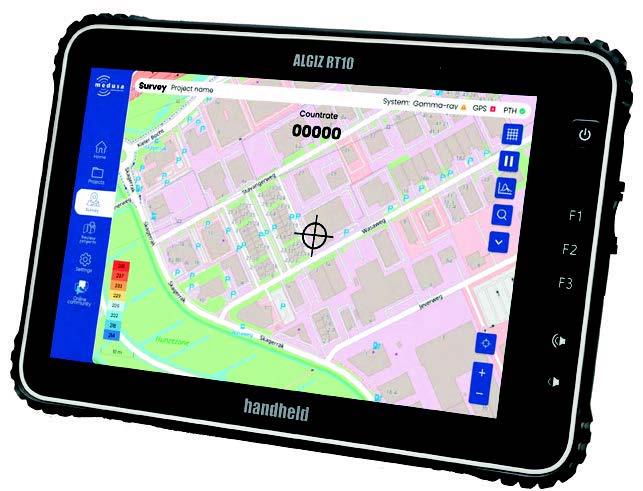

Included Software	Onboard-processing (by mDOS) Channels	Real-time analysis (by mDOS) Survey planner Real-time radionuclide inspection Sample measurements 2048
	Post-processing (by GammAn)	Full spectrum analysis (FSA) Window analysis (WA)
	Support Online support Custom support	Extensive library of support guides Optional
Request Pricing Information		MS-350	MS-700	MS-1000	MS-2000	MS-4000
