Model 765-HV | 400 MHz 400 ps Fast Rise Time High-Voltage Pulse Generator (up to ±50 V pp)
The Model 765-HV High-Voltage Pulse Generator, available in 1 or 2 channels, delivers fast rise times below 400 ps and pulse amplitudes up to ±50 Vpp into 50 Ohms, making it ideal for demanding high-voltage applications. Supporting up to 400 MHz repetition rates and pulse widths as narrow as 1 ns, the 765-HV provides exceptional control over both timing and amplitude domains. Each channel offers fully programmable amplitude, offset, delay, and width with 10 ps resolution and <15 ps jitter.

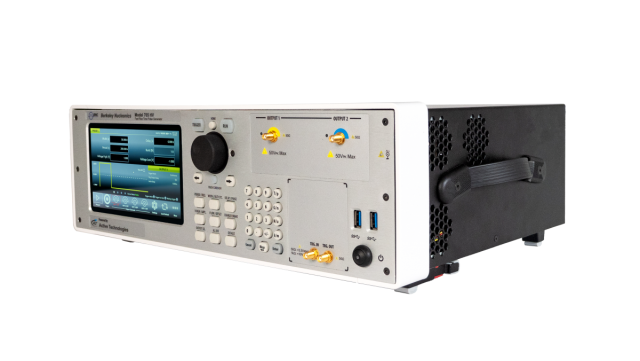

A 7-inch user friendly touchscreen and intuitive front-panel controls simplify setup and channel navigation, while the rotary encoder enables fine, real-time adjustments. The redesigned analog front end ensures precise edge transitions with minimal overshoot and ringing, even at maximum output. Whether used for semiconductor testing, radar systems, or high-energy physics research, the Model 765-HV combines power, precision, and ease of use. Pushing the limits of high-voltage pulse generation.
Applications
Radar and Sonar Systems
Semiconductor and Laser Testing
Big Physics (Colliders, Photomultipliers, Particle Experiments)
High-Power Microwave and Electromagnetic Systems
X-Ray and Flash Radiography Sources
Pulse Electron Beam and Lighting Pulse Simulation
High-Speed Digital Pattern and Timing Generation
Features
Fast Rise and Fall Time < 400 ps (20%–80%)
1 ns to 8 s Pulse Width Range
Up to 400 MHz Repetition Rate per Channel
1 or 2 Independent Channels
10 ps Resolution for Width, Delay, and Timing Control
Adjustable Pulse Amplitude from 100 mVpp to ±50 Vpp
±25 V Adjustable DC Offset
Low Overshoot (<5%) and <15 ps RMS Jitter
7″ Touchscreen GUI with Rotary Encoder Controls
SCPI Programmable via USB, LAN, or Remote Interface
| Model 765-HV Specifications | |
|---|---|
| Channels | 1 or 2 Independent Channels |
| Pulse Period | Range: 5 ns to 8 s Resolution: 10 ps RMS Jitter: <15 ps Accuracy: ±2 ppm max |
| Pulse Frequency | Up to 200 MHz (Single Pulse Mode) Up to 400 MHz (Double, Triple, Quad Mode) |
| Pulse Width | Range: 1 ns to (Period – 1 ns) Resolution: 10 ps Accuracy: ±(1% + 100 ps) RMS Jitter: <10 ps |
| Pulse Delay | Range: 0 ps to Period Resolution: 10 ps Accuracy: ±(0.1% + 100 ps) |
| Pulse Amplitude | Range (p-p): 100 mVpp to ±50 Vpp Resolution: 10 mV Accuracy: ±(2% of amplitude + 2% of |DC Offset| + 200 mV) |
| DC Offset / Baseline | Range: 0 V or ±25 V adjustable Software-Selectable Baselines: –25 V, –12.5 V, 0 V, +12.5 V, +25 V Resolution: 12.5 mV |

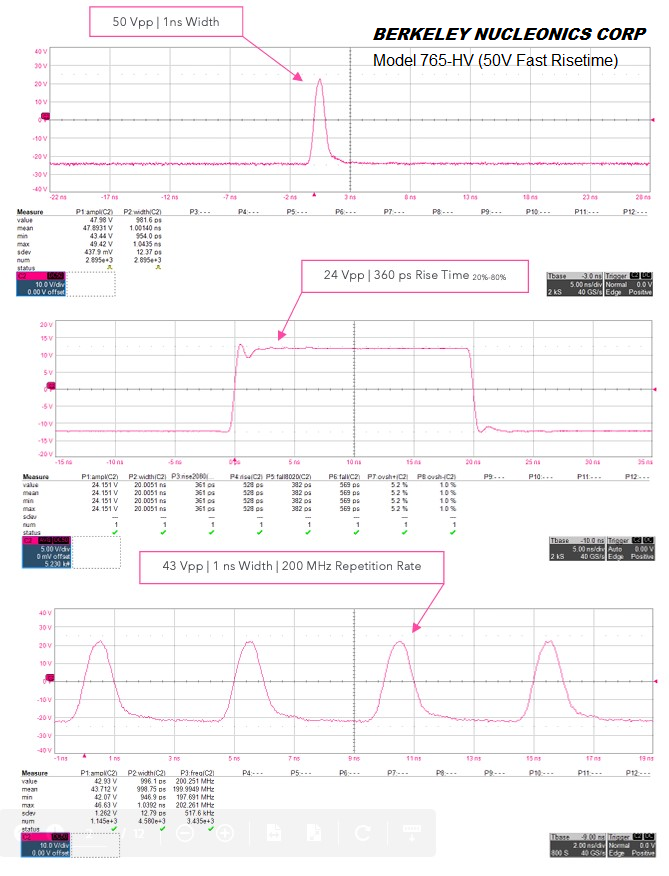

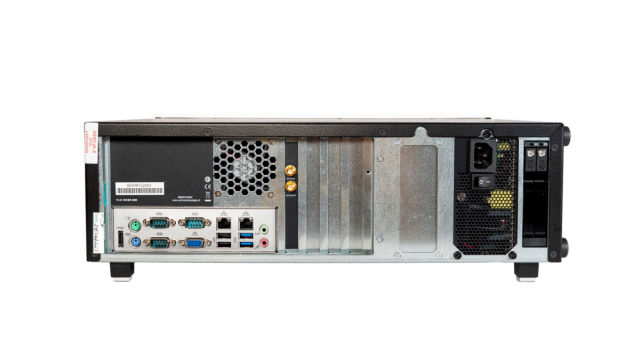

| Rise and Fall Times | Rise Time (20%–80%): <400 ps (up to ±50 Vpp) Fall Time (20%–80%): <530 ps (up to ±50 Vpp) Rise Time (10%–90%): <630 ps (up to ±50 Vpp) Fall Time (10%–90%): <840 ps (up to ±50 Vpp) Overshoot: <8% (≤25 Vpp), <5% (25 – ±50 Vpp) |
| Channel-to-Channel RMS Jitter | <15 ps |
| Output Impedance | 50 Ω nominal |
| Trigger Input / Output | Input Impedance: 50 Ω or 1 kΩ (programmable) Input Range: ±3.5 V (50 Ω), ±10 V (1 kΩ) Min Detectable Amplitude: <50 mVpp Threshold Range: ±8 V (10 mV res., ±100 mV acc.) Max Input Frequency: 40 MHz Min Pulse Width: 1 ns Trigger Output: 1.8 V–3.3 V adjustable, 50 Ω Trigger Delay (In–Out): <100 ns Trigger Jitter: <30 ps (≤15 MHz input) |
| Reference Clock | Input: 10–100 MHz, 50 Ω AC-coupled, –5 dBm to +4 dBm Output: 10 MHz or External Clock Frequency Accuracy: ±2 ppm |
| Trigger Modes | Single, Continuous, Burst, Gated Multiple Pulse: Single, Double, Triple, Quadruple, External Width |
| Power Requirements | 100–240 VAC ±10%, 47–63 Hz Maximum Power Consumption: 300 W |
| Environmental Conditions | Operating Temp: +5 °C to +40 °C Storage Temp: –20 °C to +60 °C Operating Humidity: 5–80% RH (non-condensing) Storage Humidity: 5–95% RH (non-condensing) Operating Altitude: ≤3,000 m Non-Operating Altitude: ≤12,000 m |
| Compliance & Safety | EN61010-1 (Safety) EN 61326-1:2013 (EMC / Immunity) |
| Hardware & Software | Intel Celeron J1900 2 GHz 8 GB RAM, 128 GB SSD Windows 10 OS 7″ Capacitive Touch LCD (1024×600) Interfaces: HDMI, VGA, LAN, USB 2.0/3.0, PS/2, Audio I/O |
| Physical Characteristics | Dimensions (W × H × D): 445 × 135 × 320 mm (3U 19″ rackmount) Weight: 9.7 kg (21.4 lbs) |
User Interface and Pulse Output

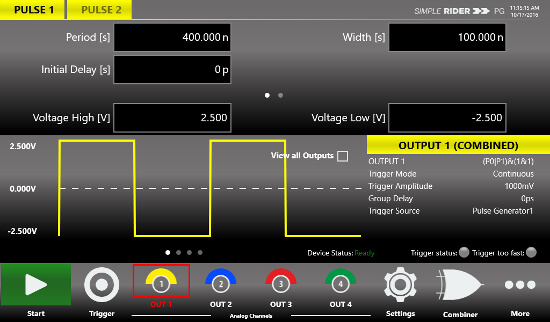

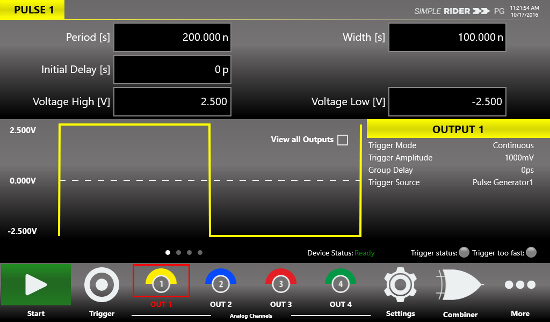

The Model 765-HV user interface is optimized for touch operation, offering engineers and scientists an intuitive way to create and adjust pulse parameters. Its 7-inch touchscreen features a smartphone-like design with gesture controls for fast and simple setup. Users can easily program single or multiple pulses (dual, triple, or quadruple modes) through the graphical interface. For additional control, the rotary encoder and tactile pushbuttons allow fine-tuning and quick, on-the-fly adjustments.
Downloadable resources such as datasheets, firmware, software, drivers and products manuals. Alternatively, you can browse resources directly by visiting our downloads page.
Playlist
4:37
6:05
15:07
Price lists are available to our registered users. To view pricing for this and other products, please log in or create a free account.
Yes. The Rise and Fall time for the Model 765 is 70ps. The amplitude is +/- 5V and there are 2 and 4 channel versions available.
Yes. The Model 765 allows you to set the pulse top and pulse baseline from -2.5V to +2.5V.
