4. The SAM Family and the RD-150 System

This chapter introduces the instruments themselves: form factors, detector types, what each is designed for, and the controls and indicators every operator should be able to find with gloves on, in the dark, by feel.

The deepest specification list lives in the operator manual that ships with each unit. This chapter covers what an operator needs to deploy the instrument well, not what an engineer needs to specify it.

4.1 Family Overview

The SAM family is a line of handheld radioisotope identifiers built around fast scintillators (CeBr or LaBr) with integrated multichannel analyzers, GPS, on-board storage, and connectivity. The RD-150 is a wearable backpack and vehicle-mountable search system that pairs higher-volume detectors with operator interfaces designed for movement.

Instrument	Form factor	Primary detector	Mission
SAM 940+ (new)	Handheld RIID	NaI, LaBr, CeBr or CLYC; optional internal neutron	Current-generation handheld with internal detector, one-click reachback, built-in camera, directional radiation detection
SAM 940 / 945	Handheld RIID	NaI(Tl) or LaBr (configuration-dependent)	Identify on scene; veteran fleets

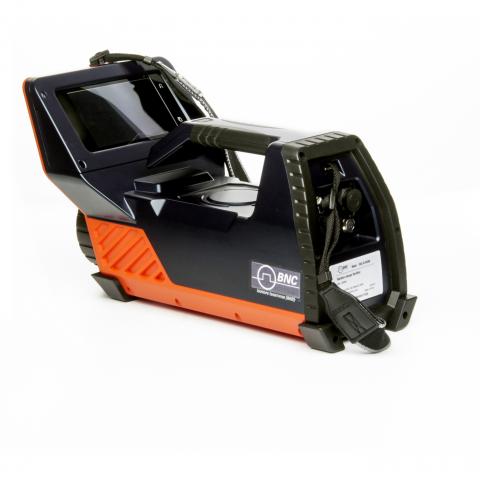

SAM 950	Handheld RIID	CeBr or LaBr (configuration-dependent)	Higher-volume option (3 by 3 in NaI), max sensitivity
RD-120 Backpack	Wearable search system	Large-volume scintillator + neutron	Wide-area search, public events, sweeps

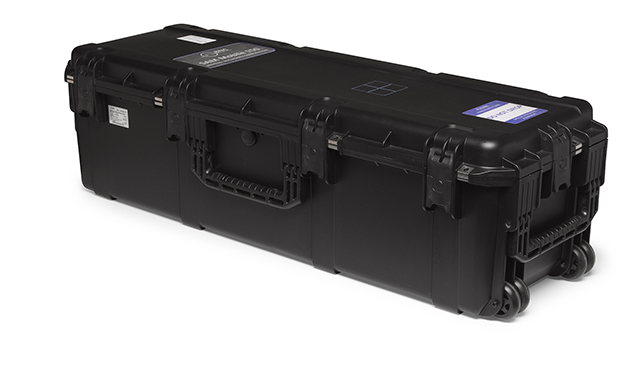

RD-150 Vehicle	Vehicle-mounted survey	Large-volume scintillator + neutron	Mobile survey at street speeds

All units in the family share a family resemblance in operator workflow: power-on self-test, calibration check, background acquisition, scan, save, transmit. Once you can run one, you can run any of them.

4.2 SAM 940+: The New Flagship Handheld

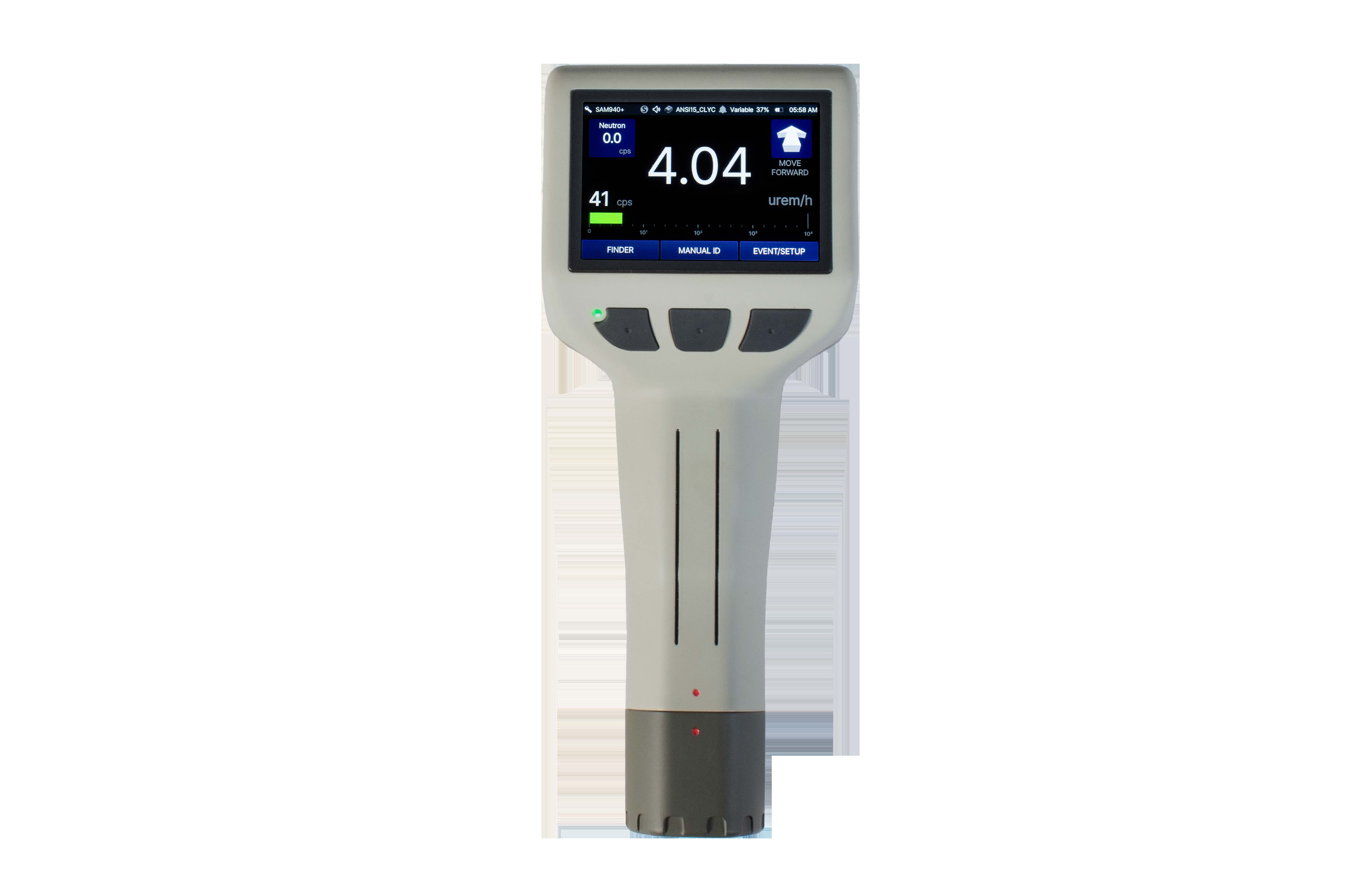

The SAM 940+ is the newest handheld in the SAM family and the unit operators will most often see arriving on a HazMat truck today. It is a re-engineered platform built around real-world feedback from the agencies that have been running SAM family handhelds for years.

What the SAM 940+ adds over earlier handhelds:

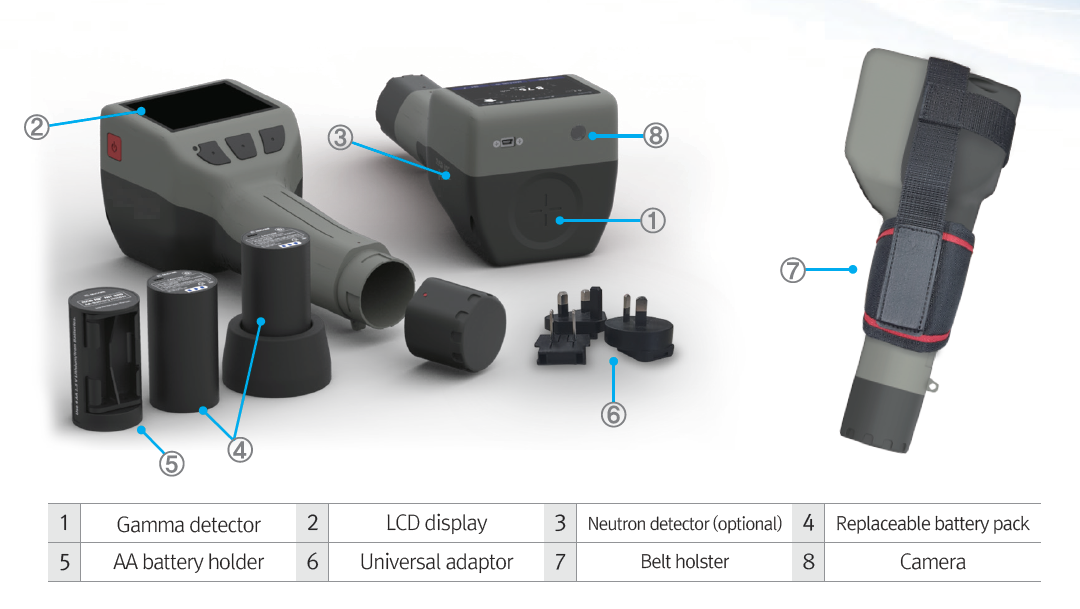

• Internal detector. Crystal lives inside the chassis; nothing to attach, nothing to break.
• One-click reachback. Spectrum + scene info to your physicist with a single button press, RadResponder-enabled.
• Built-in camera. Multi-media capture: take the photo of the source/cargo with the same device that took the spectrum, and they ride together.
• Sourceless automatic real-time stabilization. No internal source required for stabilization, passes through TSA and customs without licensing complications.
• Directional radiation detection. A directional indicator helps operators close in on a hotspot more quickly than a count-rate-only display would.
• Remote operation and mirroring display. Command can see what the operator sees, in real time.
• Detector options. NaI, LaBr, CeBr, and CLYC (for combined gamma/neutron), pick the configuration that matches your mission profile.

Operator workflow on the SAM 940+ mirrors the rest of the SAM family, power-on self-test, calibration check, background acquisition, scan, save, transmit, but the one-click reachback and built-in camera collapse the "send" step from minutes to seconds. (See Chapter 5 for the full Operations Core.)

Tip: Programs that already operate SAM 940 / 945 fleets can transition operators to the SAM 940+ with minimal re-training. The button vocabulary and screen idiom are familiar; the new affordances are additive.

4.3 SAM 940 / 945: The Established Handheld You Already Know

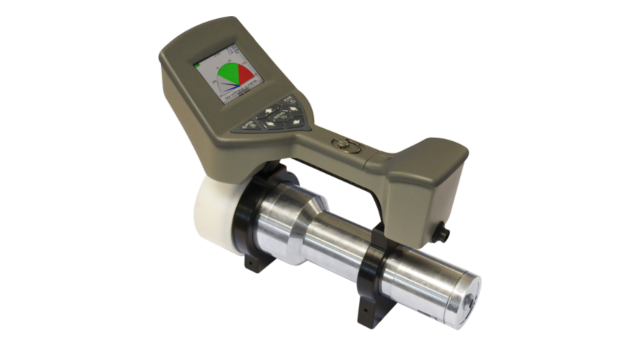

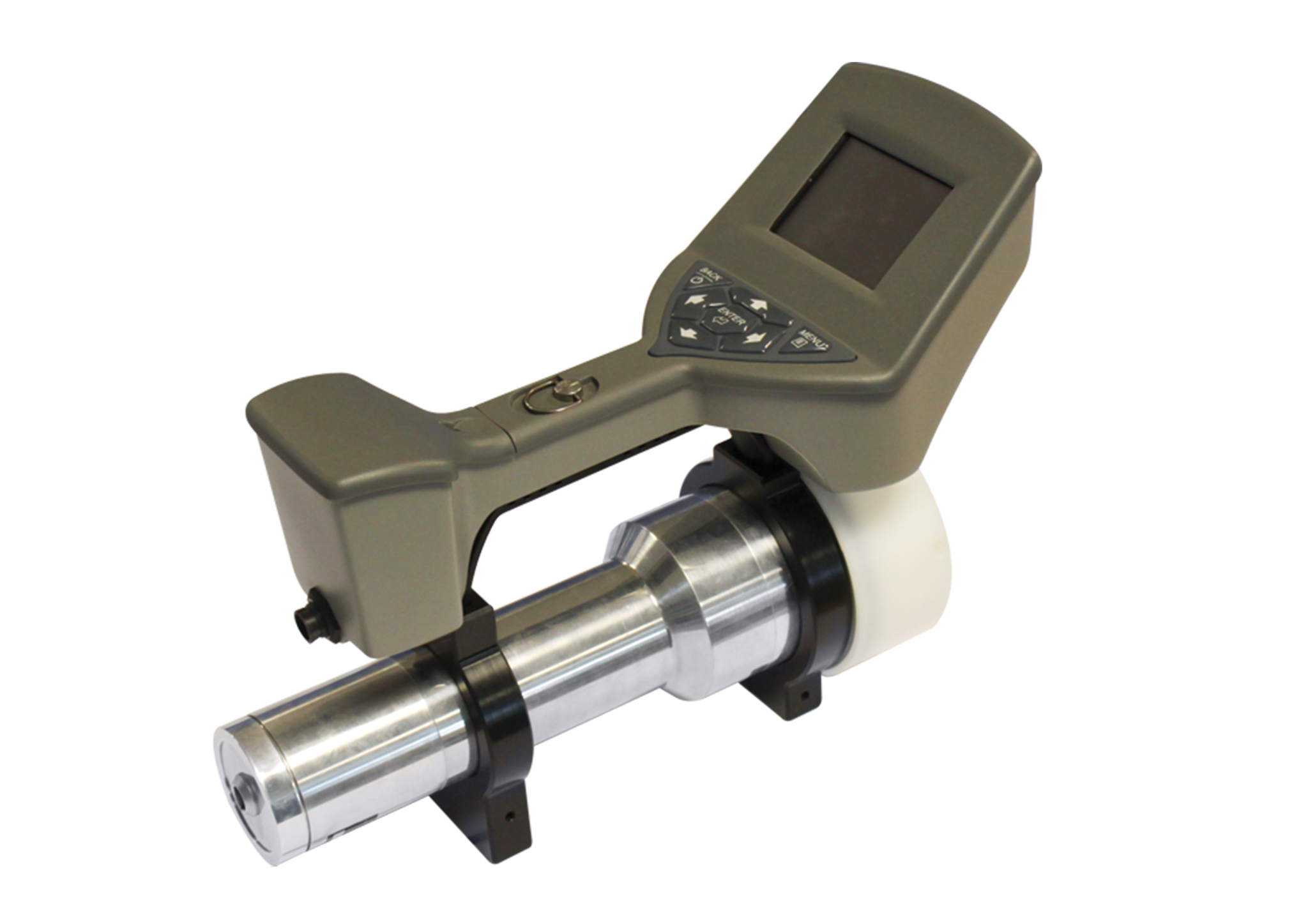

The SAM 940 series is a long-serving handheld RIID still in active inventory across HazMat, law enforcement, and federal teams. Configurations exist with NaI(Tl) and LaBr crystals, with and without neutron detection, and with various battery and connectivity options.

Design intent: Drop-tolerant single-piece handheld; large display readable in daylight; physical buttons usable with gloves; long-running battery; spectrum storage for hundreds of events; export for reachback.

Where you'll see it: Many established programs standardized on the SAM 940 series years ago and are running well-maintained fleets. Operators who learn the SAM 940 can transition to the SAM 950 with little re-training, the workflows match.

Tip: Older SAM 940 firmware may present library entries differently than current SAM 950 firmware. If your team runs both, compare a known check source on each unit and document the displayed text for your SOPs. Naming conventions matter for reachback.

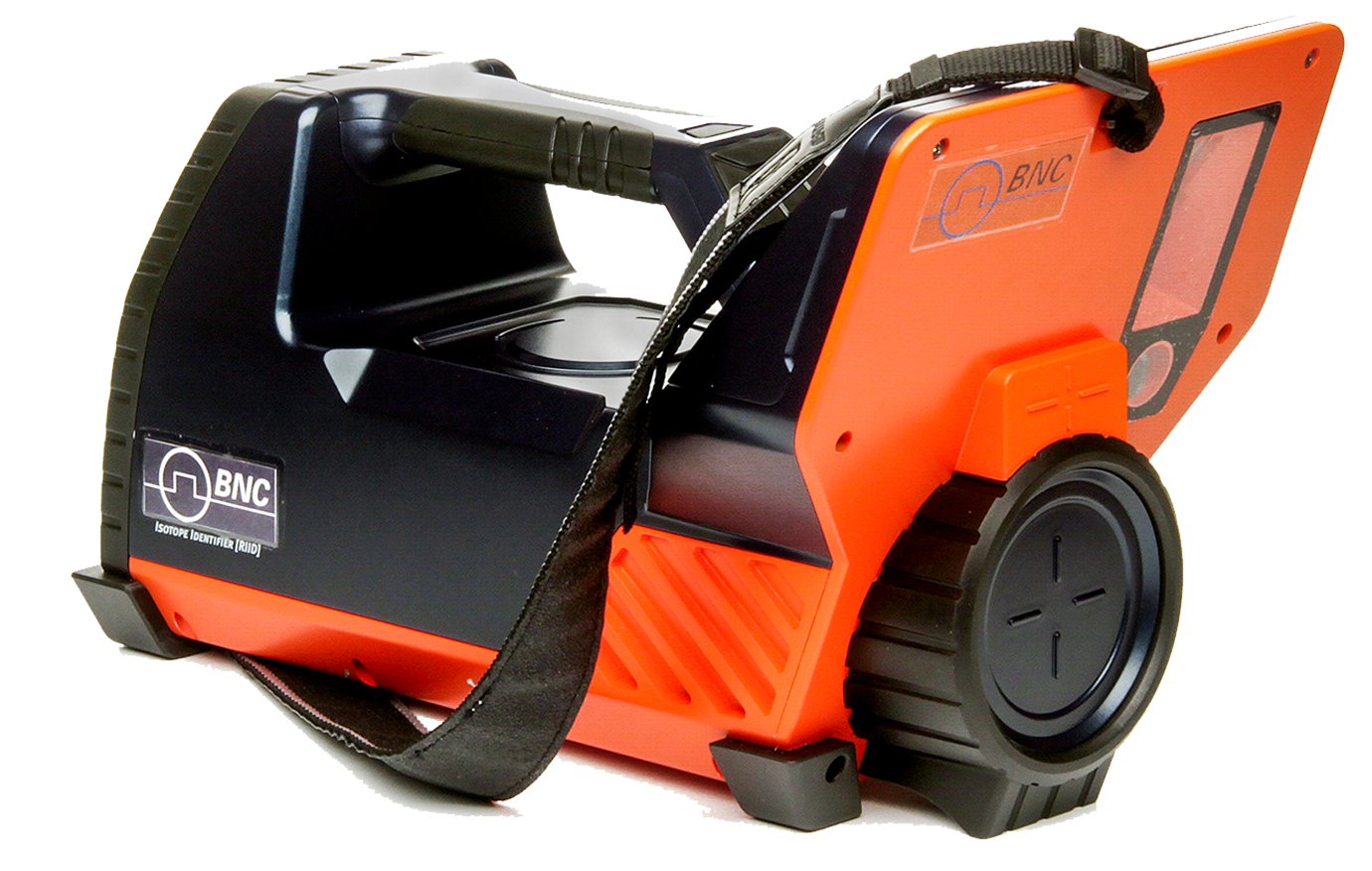

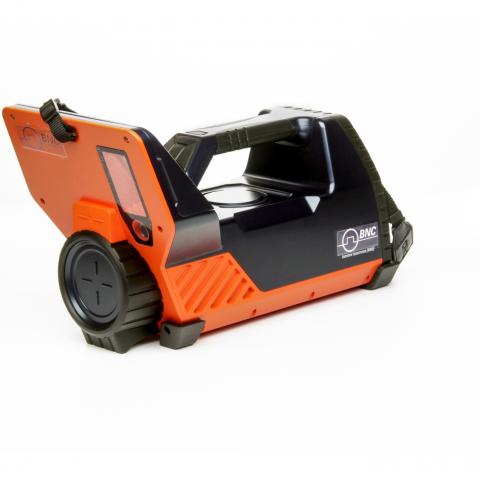

4.4 SAM 950: The Higher-Volume Handheld

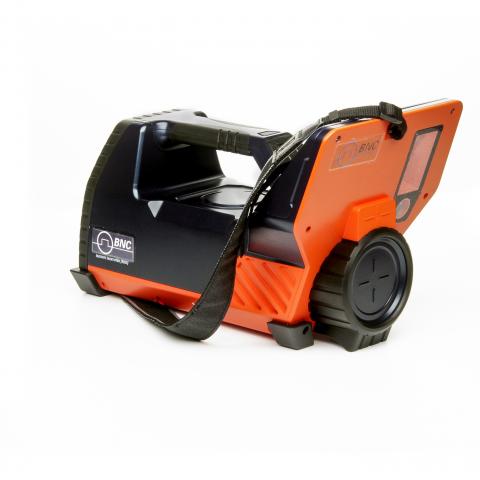

The SAM 950 is a higher-sensitivity handheld in the SAM family, distinguished by its larger internal detector volume in the SAM family. Common configurations use CeBr or LaBr scintillators, with optional neutron detection, integrated GPS, Wi-Fi/cellular for spectrum transmission, and on-board storage measured in thousands of events.

What makes the SAM 950 worth its weight on a HazMat truck:

• Resolution. CeBr/LaBr crystals deliver field resolution that approaches lab-grade HPGe for the operator decisions that matter. Closely-spaced peaks resolve cleanly; isotope identification confidence is higher; ambiguous cases that would have required reachback on a NaI unit are often answered on scene.
• Stability. CeBr in particular is stable across temperature swings; the unit holds calibration through cold mornings and hot summer afternoons without drift that would affect identification.
• Connectivity. Spectra travel as standard files (ANSI N42.42 XML and other industry-standard formats), your reachback partner doesn't need a special viewer to read them.
• Workflow. The operator interface follows the alert/identify/send rhythm directly, which is why this handbook can talk about workflow without prescribing button-by-button menus that change between firmware versions.

4.5 RD-120 Backpack: Wide-Area Search

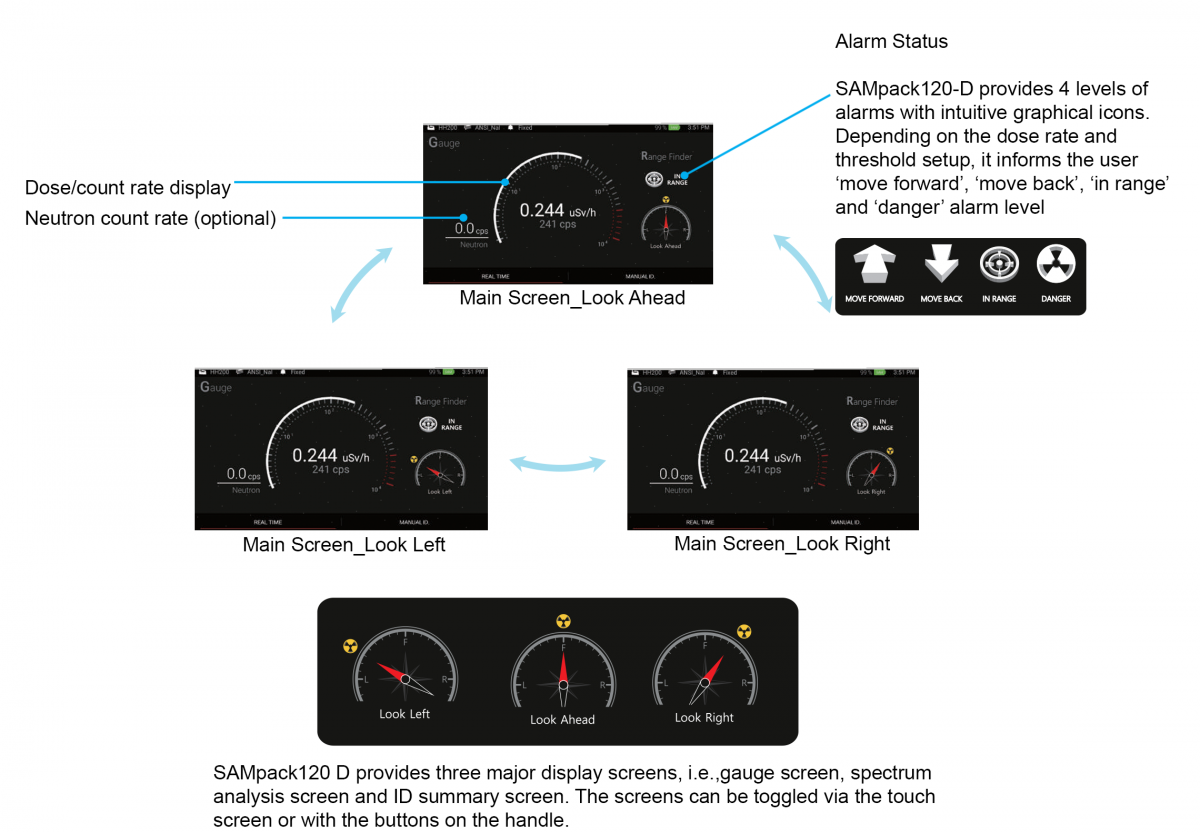

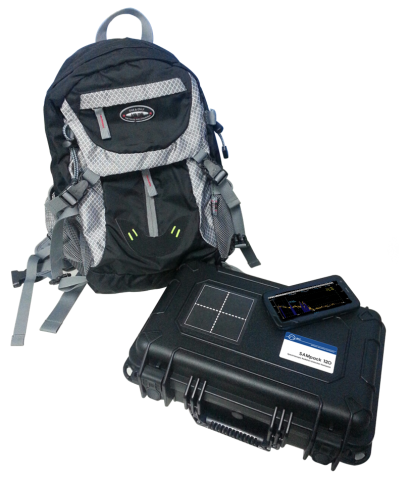

The RD-120 backpack pairs a large-volume detector array (gamma + neutron) with a wearable harness and an operator-facing tablet or phone application. The detector hangs against the operator's back; the tablet rides on the chest or in the hand.

What it is for: - Sweeping public venues, transit stations, parade routes, port yards - Wide-area search for orphan or lost sources - Walking grids in support of state or federal source-recovery operations - Pre-event sweeps before a high-profile public gathering

What an operator should know: - Harness fit matters. The detector should ride high and snug; a sloppy harness leads to operator fatigue and inconsistent geometry. - Walking pace should be steady. The system is calibrated for a normal walking speed; sprinting or stopping erratically degrades the survey. - The tablet shows live count rate, alarm status, GPS track, and identification results. Operators should learn the tablet display before they learn the backpack itself. - GPS-tagged spectra mean every alarm has a location and timestamp. That history is gold during after-action review.

4.6 RD-150 Vehicle: Mobile Survey

The same detection technology in a vehicle-mountable configuration. The system is mounted in a SUV, van, or pickup; the interface runs on a laptop or tablet at the operator station.

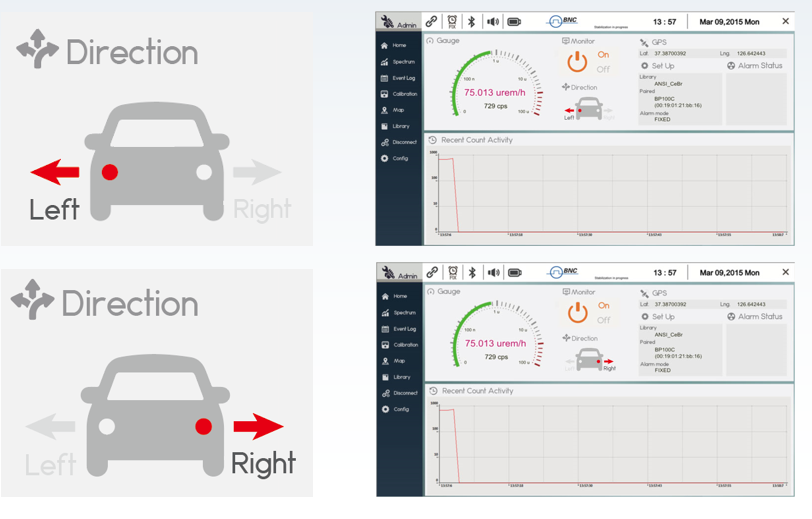

What it is for: - Sweeping a wide area at street speeds (typical survey at 5–30 mph) - Building dose-rate heat maps along a route - Pre-event drive-arounds for protective details - Post-incident plume mapping in support of state radiation control programs

What an operator should know: - Vehicle speed affects sensitivity. A faster sweep covers more ground but reduces the per-square-meter dwell time. - Mounting matters. The detectors should be at a consistent height on the vehicle; height changes affect geometry. - Run a known check source past the vehicle at the start of every shift. If you can't see the check source pop up on the heat map, you have a setup problem.

4.7 Detector Types Across the Family

Detector	Typical use in SAM family / RD-150	Strength	Operator note
NaI(Tl)	Some legacy SAM 940 configurations	Cheap, rugged, well-understood	Lower resolution; library matches will sometimes be ambiguous
LaBr₃(Ce)	SAM 940/945, SAM 950, RD-150	Excellent resolution; fast	Has natural La-138 background, visible in spectra; ignore the line
CeBr₃	SAM 950 (preferred current build), RD-150	Excellent resolution; clean (no La-138 line); stable with temperature	Operator-favorite for response work
He-3 / Li-glass / B-loaded plastic neutron	RD-150, optional SAM configurations	Distinguishes neutron emitters (Pu, Cf) from gamma sources	Critical for SNM screening

If your unit has neutron detection, get to know the neutron alarm separately. Neutrons + gammas together is a different kind of alarm than gammas alone. Pu-239 lights both up. Most NORM lights only gammas.

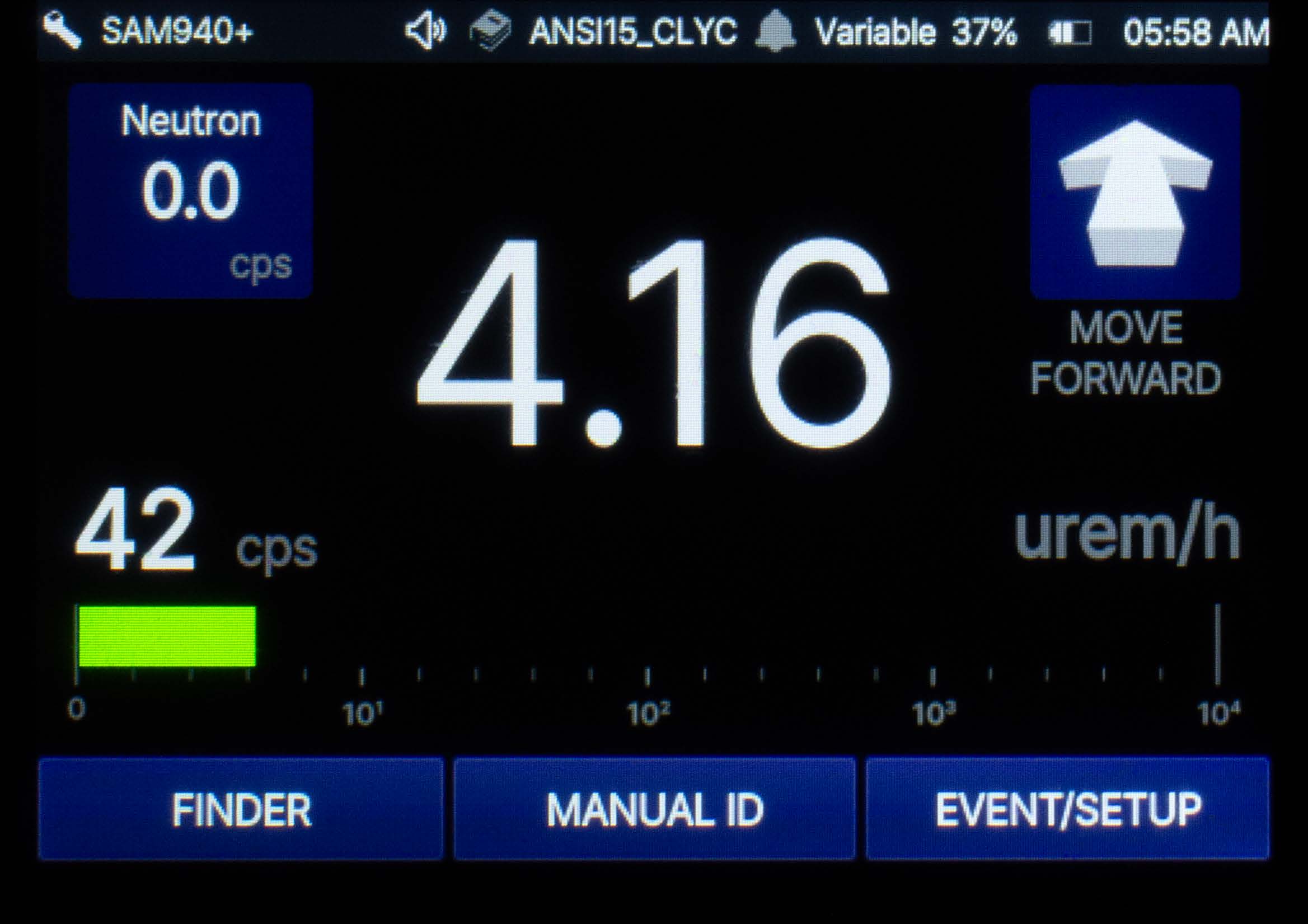

4.8 What Operators Look For on Any SAM Display

While exact menus and labels vary across firmware and configuration, every SAM family handheld will show you these elements in some form. Find them on your unit before you take it to a scene.

1. Battery state. Percent or icon. If you can't find it without looking, you don't know your unit yet.
2. Mode. survey, search, ID. Modes change which alarm thresholds apply.

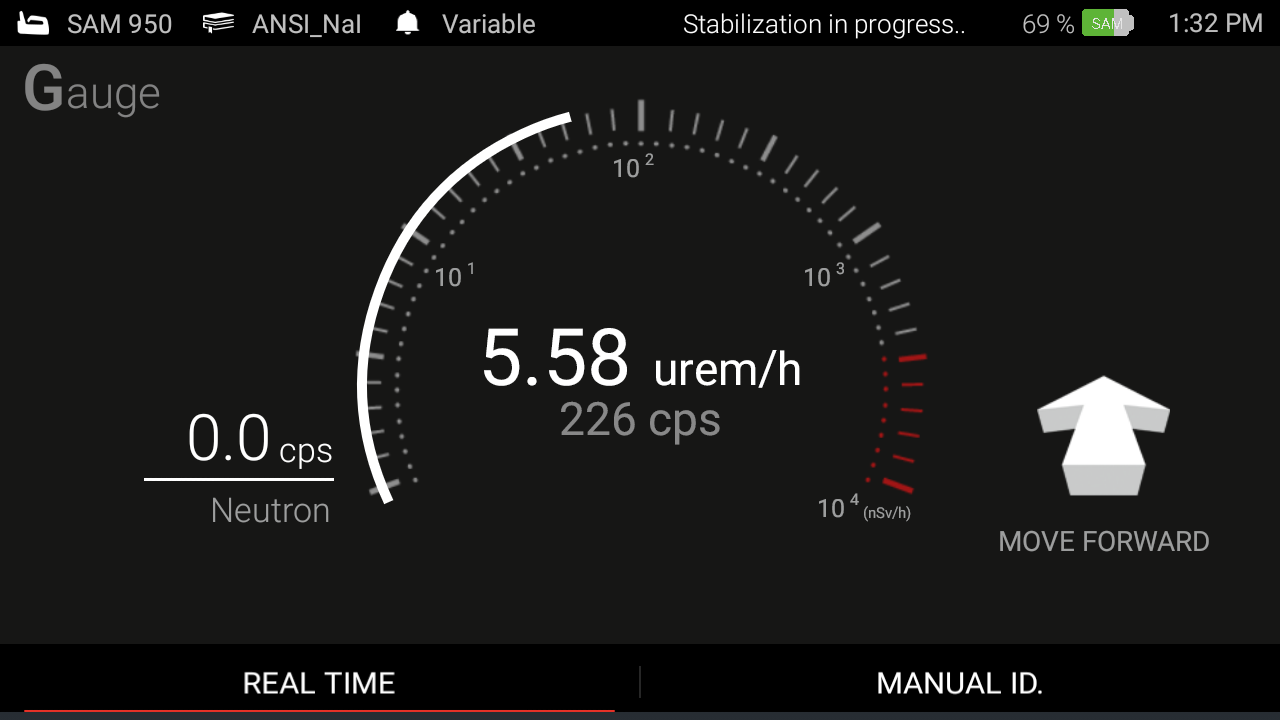

3. Count rate. counts per second. The "live wire" indicator.
4. Dose rate. µR/hr or µSv/hr. Read this for personal safety.
5. Identification result. isotope name(s) and confidence level.
6. Spectrum view. the histogram of energies. Real operators glance at it.
7. GPS / time stamp. recorded with every saved event.
8. Alarm indicator. visual + audible. Some units add haptic.
9. Save / store. confirms the event is logged for reachback.
10. Connectivity status. Wi-Fi/cellular ready to transmit?

4.9 Batteries, Charging, and the 8-Hour Rule

Every program loses calls to dead batteries. Don't let it happen on yours.

• Always rotate. A unit returning from a call gets put on charge, regardless of remaining state.
• 8-hour rule. Plan as if your unit will give you 8 hours of continuous use, even if the spec is longer. Carry a spare for events that exceed that.
• Cold weather. Lithium-ion runtime drops in cold. Keep spares warm; rotate from a heated cab.
• Charge cycles. Batteries age. Replace per program schedule, not per failure.
• Document. Battery serial, install date, and last-replaced date should be on the unit log.

4.10 Accessories Worth Carrying

A SAM family handheld and an RD-150 are most useful when paired with a small accessory kit:

• Check source (small, low-activity; typically Cs-137 or Co-60). For function checks before deployment. Stored per agency licensing.
• Foam cradle for the handheld in the truck, keeps it from rattling.
• Lanyard / harness for sustained operator carry.
• Spare batteries (charged and labeled).
• Microfiber cloth for cleaning the display.
• Waterproof field notebook. write down everything the unit doesn't auto-log.
• Reference card of agency reachback numbers (or this handbook).
• Photographic camera (most teams use phone cameras), every event gets photo documented.
• GPS coordinates / What3Words capability, useful when an address can't pinpoint a hotspot.

4.11 Pre-Deployment Setup (Do This Before The Call Comes In)

A unit pulled out of a charger and used immediately is a unit that will fail on you. Before you put a SAM family handheld or RD-120 backpack into operational service:

• Charge to 100% and confirm.
• Run a self-test; confirm no error codes.
• Acquire background in a clean indoor location and store.
• Run a check-source verification; confirm energy calibration.
• Verify the date/time and GPS lock.
• Verify connectivity (Wi-Fi/cell) and that test transmission to your reachback channel succeeds.
• Confirm that previous events from the prior shift are archived/exported per your records policy.
• Walk through the alarm tones with the team, at the start of the shift, not the start of the call.

This is the equivalent of a pilot's pre-flight. Don't skip it.

---
